2CDG510017R0011 BI-M-10.20.1.1 NIESSEN DIN binary input 10 channels, 24VDC
2CDG510017R0011
BI-M-10.20.1.1
NIESSEN
DIN binary input 10 channels, 24VDC

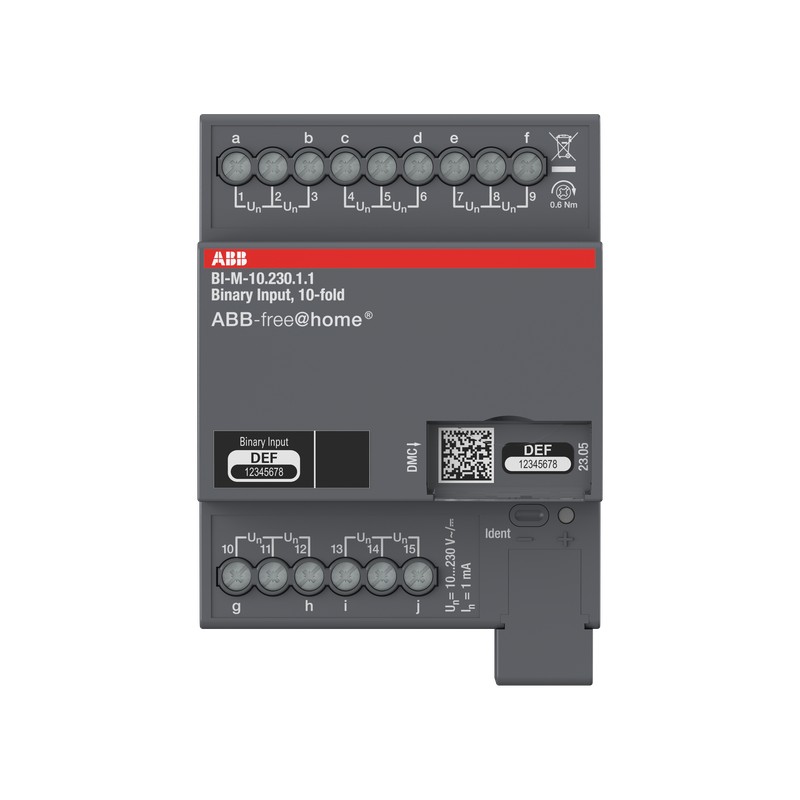

BI-M-10.230.1.1 Binary Input, 10-fold, 10-230 V, Manual Operation, MDRC
Installation bus systems > Binary input for bus system
Home Automation
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Installation | |
|---|---|
| Mounting Type | DIN-Rail |
| Environmental | |
| Degree of Protection | IP20 |
| Technical | |
| Number of LEDs | 1 |
| Number of Inputs | 10 |
| Compatible Bus Systems | free@home (TP) |
| Product Range | free@home |
| Transmission Standard | Twisted Pair Wiring |
| Manual Operation | No |
| Terminal Type | Bus Connection |
| Electrical | |
| Voltage Range | 10 ... 230 V AC/DC |
| Input Voltage (Uin) | 10 ... 230 V |
| Input Voltage Type | AC/DC |
| Power Loss | 0.25 W |
| Design | |
| Color | grey |
| Dimensions | |
| Width in Number of Modular Spacings | 4 |
| Product Net Width | 90 mm |
| Product Net Height | 63.5 mm |
| Product Net Depth / Length | 70 mm |
| Product Net Weight | 0.1 kg |
| Built-In Depth (t2) | 64.5 mm |
| Dimension Diagram | 2CDC072033F0015 |
| Ordering | |
| E-Number (Finland) | 2815933 |
| E-Number (Norway) | 4549506 |
| E-Number (Switzerland) | 405 621 135 |
| Material Compliance | |
| REACH Declaration | 9AKK108471A7754 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20251203 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| EU Data Act Compliance Declaration | 9AKK108471A4355 |
| Cyber Security Software Support Period | 2 |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| External Classifications and Standards | |
| ETIM 9 | EC000688 - Binary input for bus system |
| ETIM 10 | EC000688 - Binary input for bus system |
| eClass | V11.0 : 27143121 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
