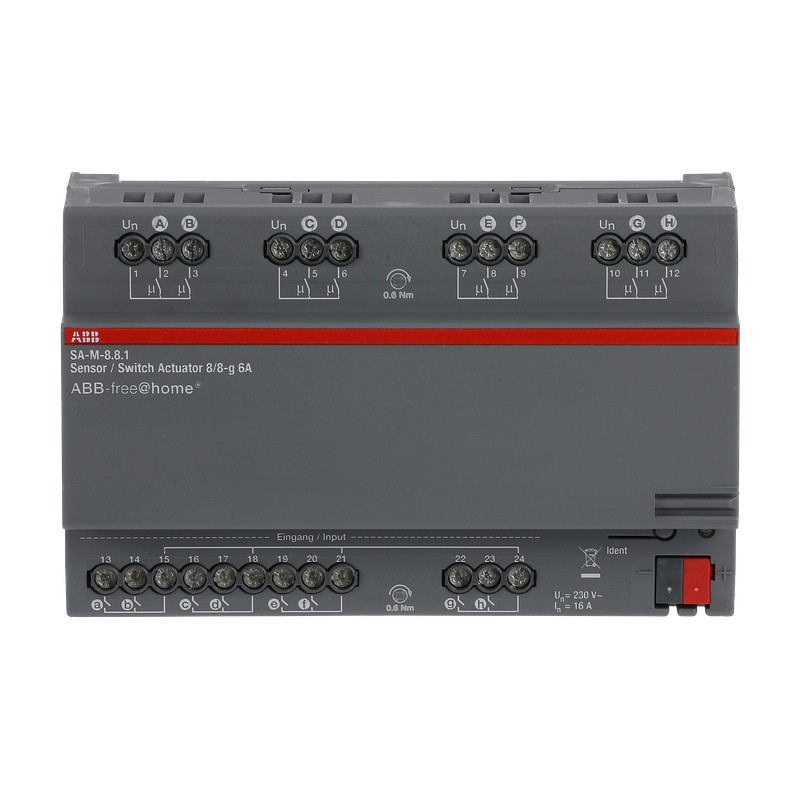

2CDG510007R0011 SA-M-8.8.1 NIESSEN SENSO 8 CANALES+ ACTUADOR 8 CANALES
2CDG510007R0011
SA-M-8.8.1
NIESSEN
SENSO 8 CANALES+ ACTUADOR 8 CANALES
SENSO 8 CHANNELS + 8 CHANNEL ACTUATOR
SA-M-8.8.1 Switch Actuator I/O, 8-fold, 6 A, MDRC
Installation bus systems > Switch actuator for bus system
Home Automation
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CDG941169P0003 |
| Mounting Type | DIN-Rail |
| Environmental | |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 2CDC5501D0201 |
| Contact Position Indication | ON / OFF |
| Number of Outputs | 8 |
| Maximum Number of Switching Outputs | 8 |
| Number of Digital Inputs | 8 |
| Compatible Bus Systems | free@home (TP) |
| Product Range | free@home |
| Manual Operation | Yes |
| Suitable for C-Load | No |
| Number of Batteries | 0 |
| Electrical | |
| Voltage Range | 230 V |
| Output Voltage (Uout) | 230 V AC |
| Rated Current (In) | 6 A |
| Maximum Switching Current | 6 A |
| Maximum Switching Power | 1200 W |
| Power Loss | 2 W |
| Design | |
| Color | grey |
| Dimensions | |
| Width in Number of Modular Spacings | 8.0 |
| Product Net Width | 144 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 64.5 mm |
| Product Net Weight | 0.3 kg |
| Built-In Depth (t2) | 64.5 mm |
| Dimension Diagram | 2CDC072027F0017 |
| Engineering | |
| EPLAN Data | 9AAC189334_EPLAN |
| Ordering | |
| E-Number (Finland) | 2815554 |
| E-Number (Norway) | 4549794 |
| E-Number (Sweden) | 1701127 |
| Material Compliance | |
| RoHS Declaration | 2CDK505161D2701 |
| RoHS Information | Following EU Directive 2011/65/EU |
| REACH Declaration | 9AKK108471A7754 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20251203 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | feb5b055-0850-4176-8cec-6727dc718e24 Germany |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CDK505161D2701 |
| Declaration of Conformity - UK-PSTI | 9AKK108464A0763 |
| EU Data Act Compliance Declaration | 9AKK108471A4355 |
| Cyber Security Software Support Period | 2 year |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| External Classifications and Standards | |
| ETIM 9 | EC001097 - Switch actuator for bus system |
| ETIM 10 | EC001097 - Switch actuator for bus system |
| eClass | V11.0 : 27143125 |
| UNSPSC | 31251516 |
| IDEA Granular Category Code (IGCC) | 3268 >> Switch actuator |
| Object Classification Code | A |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CDG510007R0011 SA-M-8.8.1 EN_2CDG510007R0011.pdf | 320 Kbytes |
|
