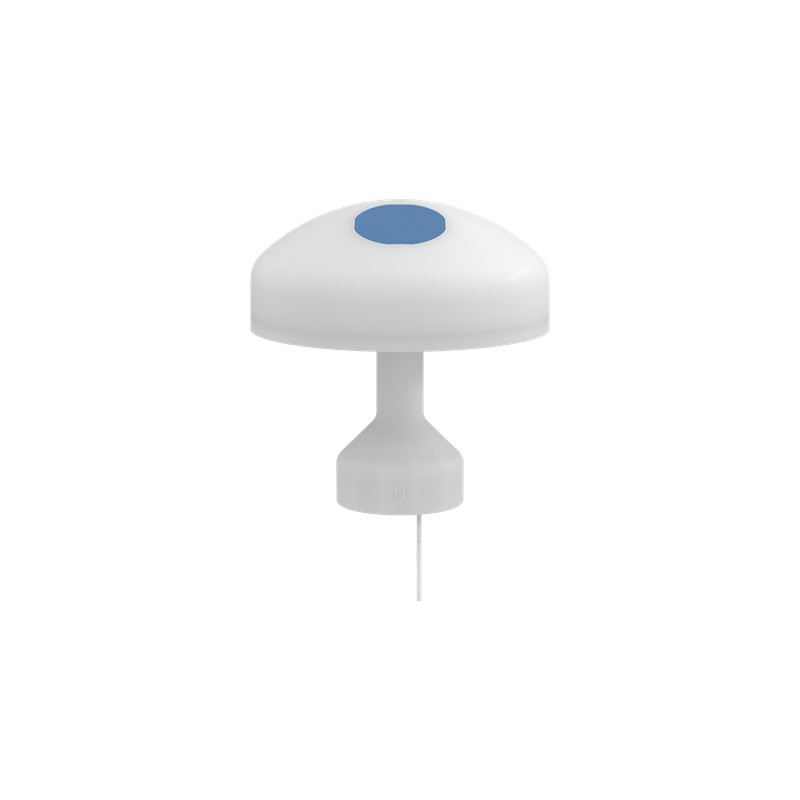

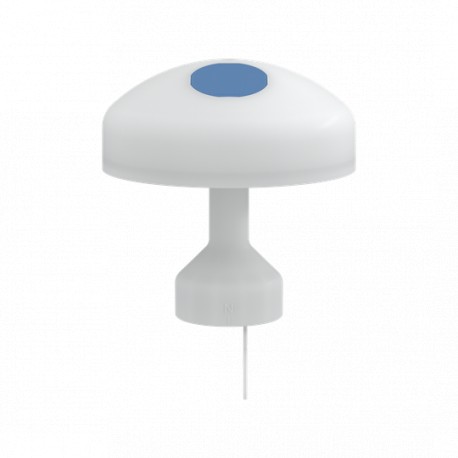

2CDG120091R0011 WES/A4.1.1 NIESSEN Sensor Meteorológico, Superficie
2CDG120091R0011
WES/A4.1.1
NIESSEN
Sensor Meteorológico, Superficie
Weather Sensor, Surface
WES/A4.1.1 Weather Sensor Basic, SM
Installation bus systems > Physical sensor for bus system
KNX-EIB
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CDG941266P0001 |
| Wiring Diagram | 9AKK108464A0563 |
| Mounting Type | Surface Mounted |
| Environmental | |
| Degree of Protection | IP44 |
| Technical | |
| Data Sheet, Technical Information | 9AKK108464A0416 |
| Product Range | KNX |
| Manual Operation | No |
| Additional Information | Heater included |
| Number of Batteries | 0 |
| Design | |
| Color | white matt |
| Dimensions | |
| Product Net Width | 102 mm |
| Product Net Height | 105 mm |
| Product Net Depth / Length | 102 mm |
| Product Net Weight | 0.162 kg |
| Dimension Diagram | 9AKK108464A0554 |
| Ordering | |
| Replaced Product ID (OLD) | 2CDG120046R0011 |
| E-Number (Finland) | 2815901 |
| E-Number (Norway) | 4544231 |
| E-Number (Sweden) | 1740458 |
| E-Number (Switzerland) | 205550015 |
| Material Compliance | |
| RoHS Declaration | 9AKK108464A0588 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 9AKK108471A7754 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20251203 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK108464A0588 |
| Declaration of Conformity - UK-PSTI | 9AKK108464A0792 |
| Declaration of Conformity - UKCA | 9AKK108464A0589 |
| EU Data Act Compliance Declaration | 9AKK108470A9399 |
| Cyber Security Software Support Period | 2 year |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| External Classifications and Standards | |
| ETIM 9 | EC000926 - Physical sensor for bus system |
| ETIM 10 | EC000926 - Physical sensor for bus system |
| eClass | V11.0 : 27143137 |
| UNSPSC | 39121801 |
| Object Classification Code | A |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CDG120091R0011 WES/A4.1.1 EN_2CDG120091R0011.pdf | 449 Kbytes |
|
