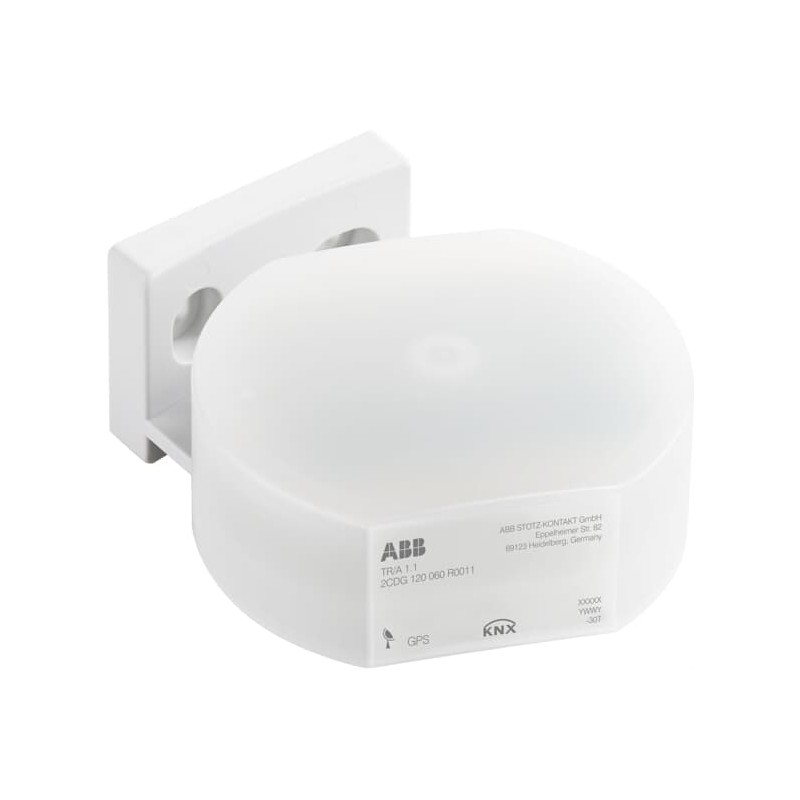

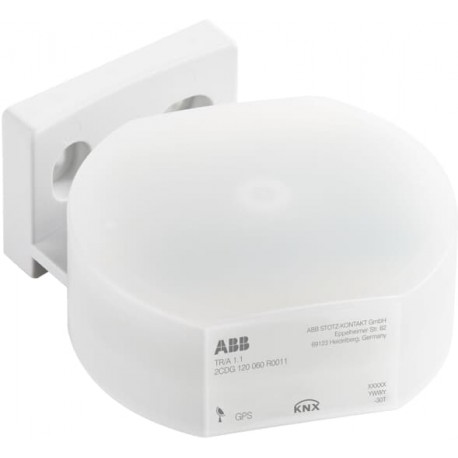

2CDG120060R0011 TR/A 1.1 NIESSEN Receptor horario GPS
2CDG120060R0011
TR/A 1.1
NIESSEN
Receptor horario GPS
GPS Time Receiver
TR/A1.1 Time Receiver GPS, SM
KNX-EIB
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CDG941200P0001 |
| Wiring Diagram | 9AKK108464A0821 |
| Mounting Type | Surface Mounted |
| Modular Components Included | Complete Device |
| Environmental | |
| Degree of Protection | IP54 |
| Technical | |
| Data Sheet, Technical Information | 2CDC509085D0201 |
| Communication Interface | GPS |
| Number of Channels | 1 |
| Compatible Bus Systems | KNX (TP) |
| Product Range | KNX |
| Transmission Standard | Twisted Pair Wiring |
| Product Type | Support antenna |
| Options Provided | Weekly program |
| Daily program | |
| Manual Operation | No |
| Number of Batteries | 0 |
| Terminal Type | Bus Connection |
| Electrical | |
| Voltage Range | KNX |
| Power Loss | 0.3 W |
| Design | |
| Color | white |
| Dimensions | |
| Product Net Width | 89.5 mm |
| Product Net Height | 40 mm |
| Product Net Depth / Length | 75 mm |
| Product Net Weight | 0.09 kg |
| Dimension Diagram | 9AKK108464A0821 |
| Engineering | |
| Building Information Modeling – BIM | 2CKA110002E4867 |
| Ordering | |
| E-Number (Finland) | 2814548 |
| E-Number (Norway) | 4544008 |
| E-Number (Sweden) | 1739221 |
| E-Number (Switzerland) | 405992005 |
| Material Compliance | |
| RoHS Declaration | 2CDK509083D2701 |
| RoHS Information | Following EU Directive 2011/65/EU |
| REACH Declaration | 9AKK108471A7754 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20251203 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CDK509083D2701 |
| Declaration of Conformity - UK-PSTI | 9AKK108464A0779 |
| EU Data Act Compliance Declaration | 9AKK108470A9399 |
| Cyber Security Software Support Period | 2 year |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| External Classifications and Standards | |
| ETIM 9 | EC000689 - Time switch for bus system |
| ETIM 10 | EC000689 - Time switch for bus system |
| eClass | V11.0 : 27143140 |
| UNSPSC | 39121801 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CDG120060R0011 TR/A 1.1 EN_2CDG120060R0011.pdf | 77 Kbytes |
|
