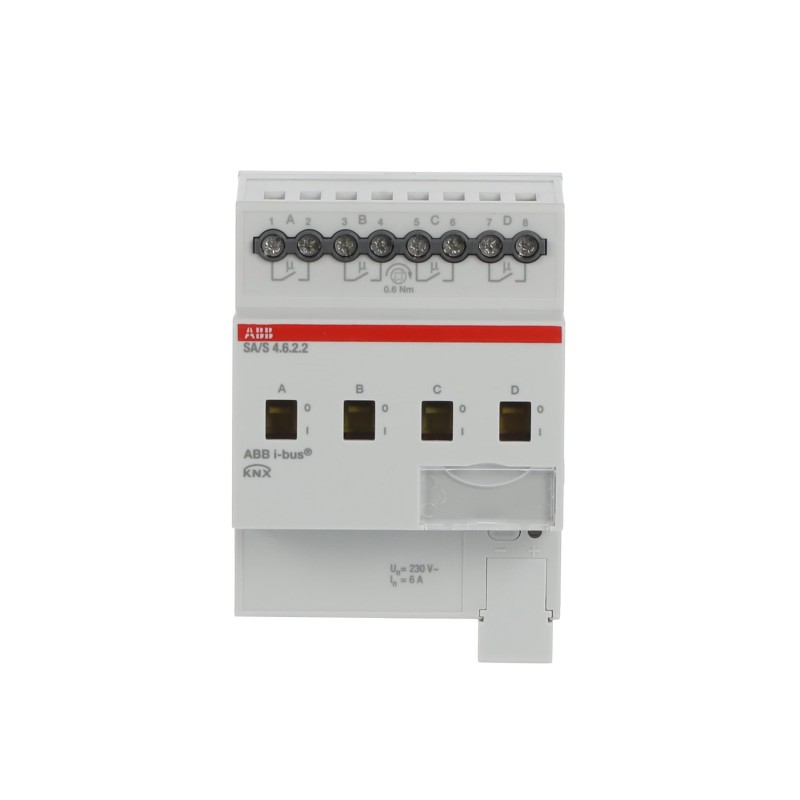

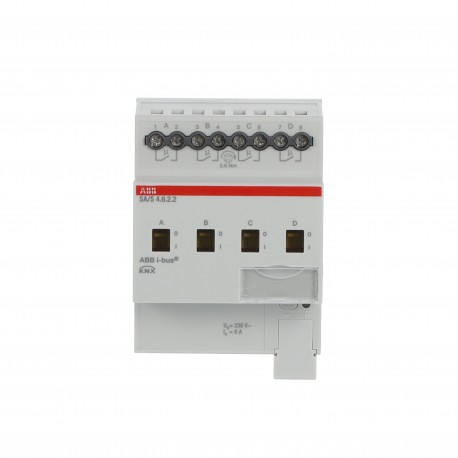

2CDG110254R0011 SA/S 4.6.2.2 NIESSEN Actuador Interruptor, 4 canales, 6A, DIN
2CDG110254R0011
SA/S 4.6.2.2
NIESSEN
Actuador Interruptor, 4 canales, 6A, DIN
Actuator Switch, 4 channels, 6A, DIN
SA/S4.6.2.2 Switch Actuator, 4-fold, 6 A, MDRC
Installation bus systems > Switch actuator for bus system
KNX-EIB
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CDG941213P0001 |
| Wiring Diagram | 9AKK108469A5777 |
| Mounting Type | DIN-Rail |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +45 °C |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 2CDC505185D0211 |
| Contact Position Indication | ON / OFF |
| Number of Outputs | 4 |
| Number of LEDs | 1 |
| Maximum Number of Switching Outputs | 4 |
| Compatible Bus Systems | KNX (TP) |
| Product Range | KNX |
| Utilization Category | Non-inductive or slightly inductive loads, example: resistive furnaces, heaters (AC-1) |
| Manual Operation | Yes |
| Suitable for C-Load | No |
| Number of Batteries | 0 |
| Electrical | |
| Voltage Range | 230 V AC |
| Auxiliary Voltage AC/DC | KNX |
| Output Voltage (Uout) | 230 V AC |
| Rated Current (In) | 6 A |
| Maximum Switching Current | 6 A |
| Maximum Switching Power | 1380 W |
| Power Loss | 1.2 W |
| Design | |
| Color | light grey |
| Dimensions | |
| Width in Number of Modular Spacings | 4.0 |
| Product Net Width | 70 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 63.5 mm |
| Product Net Weight | 0.215 kg |
| Dimension Diagram | 2CDC072033F0015 |
| Engineering | |
| EPLAN Data | 9AAC189167_EPLAN |
| Ordering | |
| Replaced Product ID (OLD) | 2CDG110181R0011 |
| E-Number (Finland) | 2814689 |
| E-Number (Norway) | 4545302 |
| E-Number (Sweden) | 1739892 |
| E-Number (Switzerland) | 405 660 045 |
| ABB EcoSolutions | |
| ABB EcoSolutions | Yes |
| EcoSolutions Profile | 9AKK108470A2429 |
| Circular Value | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 36.6 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| Extended Product Lifetime | Product Durability |
| Product Modularity | |
| Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services | |
| Offered with Takeback Services | Take Back for Recycling |
| Environmental Product Declaration - EPD | 9AKK108469A8008 |
| Material Compliance | |
| RoHS Declaration | 2CDK505253D2701 |
| RoHS Information | Following EU Directive 2011/65/EU |
| REACH Declaration | 9AKK108471A7754 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20251203 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | e308b023-fa03-46b9-9cc8-f1b26c7c2888 Germany |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| CB Certificate | 9AKK107991A3224 |
| Declaration of Conformity - CE | 2CDK505253D2701 |
| Declaration of Conformity - UK-PSTI | 9AKK108464A0744 |
| EU Data Act Compliance Declaration | 9AKK108470A9399 |
| Cyber Security Software Support Period | 2 year |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| External Classifications and Standards | |
| ETIM 9 | EC001097 - Switch actuator for bus system |
| ETIM 10 | EC001097 - Switch actuator for bus system |
| eClass | V11.0 : 27143125 |
| UNSPSC | 31251516 |
| IDEA Granular Category Code (IGCC) | 3268 >> Switch actuator |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CDG110254R0011 SA/S 4.6.2.2 EN_2CDG110254R0011.pdf | 322 Kbytes |
|
