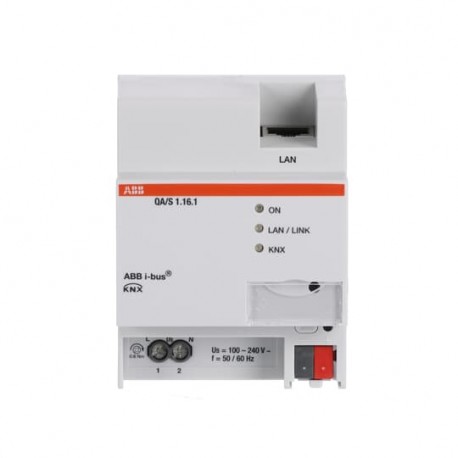

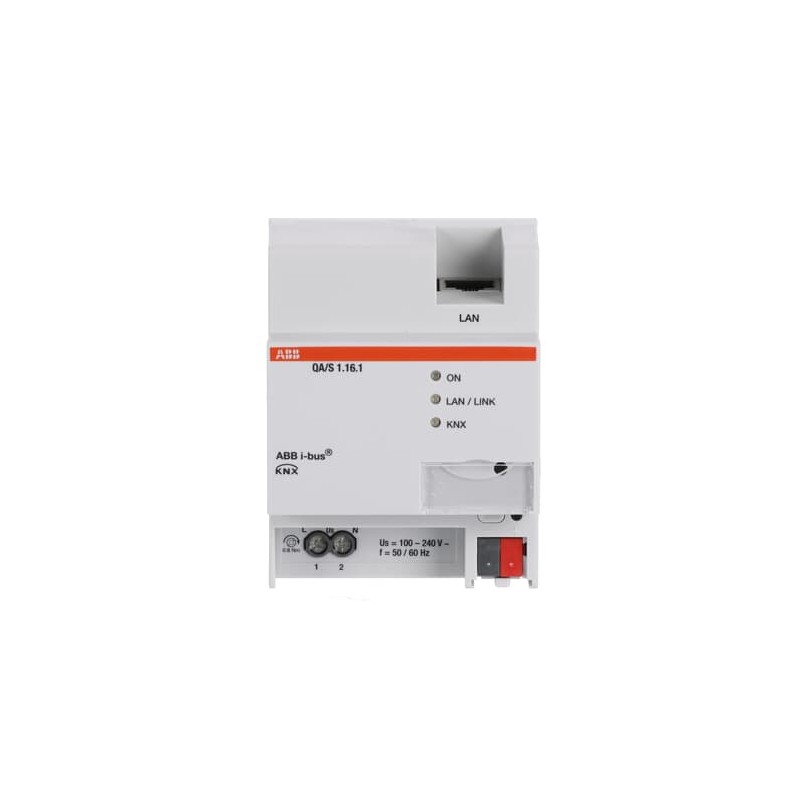

2CDG110224R0011 QA/S 1.16.1 NIESSEN Analizador de consumos, 16 canales, KNX
2CDG110224R0011
QA/S 1.16.1
NIESSEN
Analizador de consumos, 16 canales, KNX
Consumption analyzer, 16 channels, KNX
Energy management solution for capturing and analyzing consumption data of up to 16 electricity, gas, water or heat meters via KNX. Web-based user interface with graphical analysis functions such as historical data, dashboard, and more. Various export functions and APIs for further processing of metering data.
KNX-EIB
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲- Extended Product Type:
- QA/S1.16.1
- Product ID:
- 2CDG110224R0011
- EAN:
- 4016779997713
- Catalog Description:
- QA/S1.16.1 Energy Analyzer, KNX, 16 Devices, MDRC
- Long Description:
- Energy management solution for capturing and analyzing consumption data of up to 16 electricity, gas, water or heat meters via KNX. Web-based user interface with graphical analysis functions such as historical data, dashboard, and more. Various export functions and APIs for further processing of metering data.
Accessories
| Identifier | Description | Type | Qty | Unit Of Measure |
|---|---|---|---|---|
| 2CDG110247R0011 | SAH/S8.10.7.1 Switch/Shutter Actuator, 8-fold, 10 A, MDRC | SAH/S8.10.7.1 | 1 | piece |
| 2CDG110254R0011 | SA/S4.6.2.2 Switch Actuator, 4-fold, 6 A, MDRC | SA/S4.6.2.2 | 1 | piece |
| 2CDG110269R0011 | SA/S2.16.6.2 Switch Actuator, 2-fold, 16 A, C-Load, Energy Function, MDRC | SA/S2.16.6.2 | 1 | piece |
| 2CDG110244R0011 | SAH/S8.6.7.1 Switch/Shutter Actuator, 8-fold, 6 A, MDRC | SAH/S8.6.7.1 | 1 | piece |
| 2CDG110267R0011 | SA/S8.16.5.2 Switch Actuator, 8-fold, 16 A, C-Load, MDRC | SA/S8.16.5.2 | 1 | piece |
| 2CDG110246R0011 | SAH/S24.6.7.1 Switch/Shutter Actuator, 24-fold, 6 A, MDRC | SAH/S24.6.7.1 | 1 | piece |
| 2CDG110252R0011 | SAH/S24.16.7.1 Switch/Shutter Actuator, 24-fold, 16 A, MDRC | SAH/S24.16.7.1 | 1 | piece |
| 2CDG110259R0011 | SA/S8.10.2.2 Switch Actuator, 8-fold, 10 A, MDRC | SA/S8.10.2.2 | 1 | piece |
| 2CDG110273R0011 | DG/S1.64.5.1 DALI Gateway, Premium, 1-fold, MDRC | DG/S1.64.5.1 | 1 | piece |
| 2CDG110265R0011 | SA/S2.16.5.2 Switch Actuator, 2-fold, 16 A, C-Load, MDRC | SA/S2.16.5.2 | 1 | piece |
| 2CDG110251R0011 | SAH/S16.16.7.1 Switch/Shutter Actuator, 16-fold, 16 A, MDRC | SAH/S16.16.7.1 | 1 | piece |
| 2CDG110258R0011 | SA/S4.10.2.2 Switch Actuator, 4-fold, 10 A, MDRC | SA/S4.10.2.2 | 1 | piece |
| 2CDG110202R0011 | AA/S4.1.2 Analogue Actuator, 4-fold, MDRC | AA/S 4.1.2 | 1 | piece |
| 2CDG110264R0011 | SA/S12.16.2.2 Switch Actuator, 12-fold, 16 A, MDRC | SA/S12.16.2.2 | 1 | piece |
| 2CDG110249R0011 | SAH/S24.10.7.1 Switch/Shutter Actuator, 24-fold, 10 A, MDRC | SAH/S24.10.7.1 | 1 | piece |
| 2CDG110256R0011 | SA/S12.6.2.2 Switch Actuator, 12-fold, 6 A, MDRC | SA/S12.6.2.2 | 1 | piece |
| 2CDG110271R0011 | SA/S8.16.6.2 Switch Actuator, 8-fold, 16 A, C-Load, Energy Function, MDRC | SA/S8.16.6.2 | 1 | piece |
| 2CDG110262R0011 | SA/S4.16.2.2 Switch Actuator, 4-fold, 16 A, MDRC | SA/S4.16.2.2 | 1 | piece |
| 2CDG110245R0011 | SAH/S16.6.7.1 Switch/Shutter Actuator, 16-fold, 6 A, MDRC | SAH/S16.6.7.1 | 1 | piece |
| 2CDG110248R0011 | SAH/S16.10.7.1 Switch/Shutter Actuator, 16-fold, 10 A, MDRC | SAH/S16.10.7.1 | 1 | piece |
| 2CDG110255R0011 | SA/S8.6.2.2 Switch Actuator, 8-fold, 6 A, MDRC | SA/S8.6.2.2 | 1 | piece |
| 2CDG110270R0011 | SA/S4.16.6.2 Switch Actuator, 4-fold, 16 A, C-Load, Energy Function, MDRC | SA/S4.16.6.2 | 1 | piece |
| 2CDG110261R0011 | SA/S2.16.2.2 Switch Actuator, 2-fold, 16 A, MDRC | SA/S2.16.2.2 | 1 | piece |
| 2CDG110268R0011 | SA/S12.16.5.2 Switch Actuator, 12-fold, 16 A, C-Load, MDRC | SA/S12.16.5.2 | 1 | piece |
| 2CDG110253R0011 | SA/S2.6.2.2 Switch Actuator, 2-fold, 6 A, MDRC | SA/S2.6.2.2 | 1 | piece |
| 2CDG110260R0011 | SA/S12.10.2.2 Switch Actuator, 12-fold, 10 A, MDRC | SA/S12.10.2.2 | 1 | piece |
| 2CDG110274R0011 | DG/S2.64.5.1 DALI Gateway, Premium, 2-fold, MDRC | DG/S2.64.5.1 | 1 | piece |
| 2CDG110266R0011 | SA/S4.16.5.2 Switch Actuator, 4-fold, 16 A, C-Load, MDRC | SA/S4.16.5.2 | 1 | piece |
| 2CDG110272R0011 | SA/S12.16.6.2 Switch Actuator, 12-fold, 16 A, C-Load, Energy Function, MDRC | SA/S12.16.6.2 | 1 | piece |
| 2CDG110250R0011 | SAH/S8.16.7.1 Switch/Shutter Actuator, 8-fold, 16 A, MDRC | SAH/S8.16.7.1 | 1 | piece |
| 2CDG110257R0011 | SA/S2.10.2.2 Switch Actuator, 2-fold, 10 A, MDRC | SA/S2.10.2.2 | 1 | piece |
| 2CDG110263R0011 | SA/S8.16.2.2 Switch Actuator, 8-fold, 16 A, MDRC | SA/S8.16.2.2 | 1 | piece |
Installation
- Instructions and Manuals:
- 2CDG941192P0001
Technical
- Data Sheet, Technical Information:
- 2CDC512105D0211
- Voltage Range:
- 110 ... 230 V AC
- Auxiliary Voltage AC/DC:
- 230 V AC
- Power Loss:
- 3 W
- Maximum Number of Switching Outputs:
- 0
- Compatible Bus Systems:
- KNX (TP)
- Product Range:
- KNX
- Mounting Type:
- DIN-Rail
- Manual Operation:
- No
- Color:
- light grey
- Number of Batteries:
- 0
- Application Function:
- Building Management
Environmental
- Degree of Protection:
- IP20
- RoHS Status:
- Following EU Directive 2011/65/EU
- RoHS Information:
- 2CDK512104D2701
- REACH Declaration:
- 9AKK108468A9644
- SCIP:
- 8fa28278-8a62-485e-9af8-06c9e5ff9e7d Germany (DE)
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Width in Number of Modular Spacings:
- 4
- Product Net Width:
- 72mm
- Product Net Height:
- 90mm
- Product Net Depth / Length:
- 64.5mm
- Product Net Weight:
- 0.15kg
- Dimension Diagram:
- 2CDC072033F0015
Certificates and Declarations
- Declaration of Conformity - CE:
- 2CDK512104D2701
Classifications
- ETIM 8:
- EC001102 - Energy management for bus system
- ETIM 9:
- EC001102 - Energy management for bus system
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 8517 62 00
- eClass:
- V11.0 : 27143126
- Object Classification Code:
- A
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CDG110224R0011 QA/S 1.16.1 EN_2CDG110224R0011.pdf | 105 Kbytes |
|
