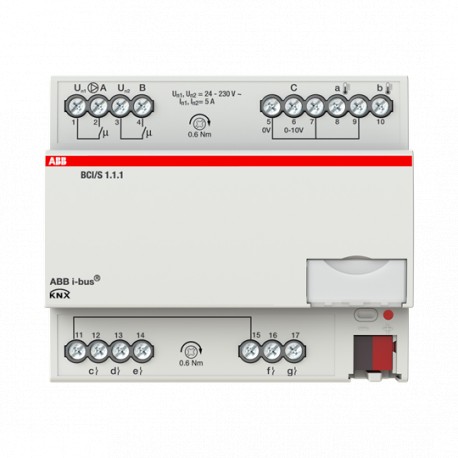

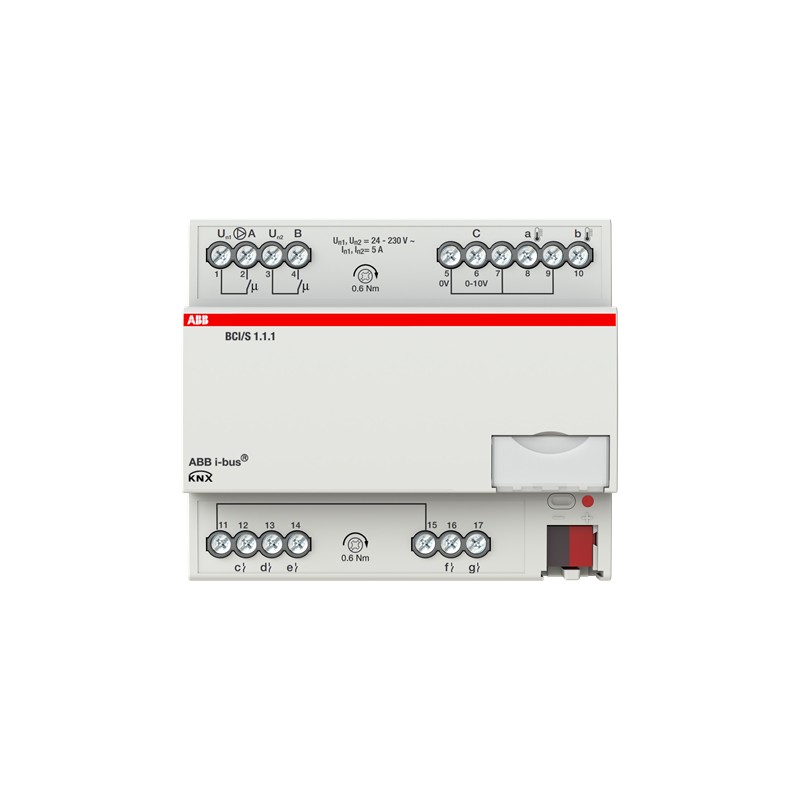

2CDG110222R0011 BCI/S 1.1.1 NIESSEN Interface para caldera/enfriador,1can.
2CDG110222R0011
BCI/S 1.1.1
NIESSEN
Interface para caldera/enfriador,1can.
Interface for boiler/cooler,1can.
BCI/S1.1.1 Boiler/Chiller Interface, 1-fold, MDRC
Installation bus systems > I/O device for bus system
KNX-EIB
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CDG941185P0002 |
| Wiring Diagram | 2CDC072044F0017 |
| Mounting Type | DIN-Rail |
| Environmental | |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 2CDC508254D0211 |
| Maximum Number of Switching Outputs | 2 |
| Number of Inputs | Analog (0 ... 10 V / 4 ... 20 mA) 5 |
| Number of Input Channels | 5 |
| Number of Output Channels | 3 |
| Compatible Bus Systems | KNX (TP) |
| Product Range | KNX |
| Manual Operation | No |
| Suitable for C-Load | No |
| Number of Batteries | 0 |
| Electrical | |
| Current Type | DC |
| Rated Operational Voltage | 230 V AC |
| Input Voltage (Uin) | 21 ... 32 V |
| Output Voltage (Uout) | 0 ... 10 V DC |
| 230 V AC | |
| Rated Current (In) | 5 A |
| Maximum Switching Current | 6 A |
| Maximum Switching Power | 1150 W |
| Design | |
| Color | light grey |
| Dimensions | |
| Width in Number of Modular Spacings | 6.0 |
| Product Net Width | 105 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 63.5 mm |
| Product Net Weight | 0.21 kg |
| Dimension Diagram | 2CDC072026F0017 |
| Engineering | |
| EPLAN Data | 9AAC189190_EPLAN |
| Ordering | |
| E-Number (Finland) | 2814571 |
| E-Number (Sweden) | 1739461 |
| E-Number (Switzerland) | 405711115 |
| Material Compliance | |
| RoHS Declaration | 2CDK508252D2701 |
| RoHS Information | Following EU Directive 2011/65/EU |
| REACH Declaration | 9AKK108471A7754 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20251203 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| CB Certificate | 9AKK107991A3183 |
| Declaration of Conformity - CE | 2CDK508252D2701 |
| Declaration of Conformity - UK-PSTI | 9AKK108464A0626 |
| EU Data Act Compliance Declaration | 9AKK108470A9399 |
| Cyber Security Software Support Period | 2 year |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| External Classifications and Standards | |
| ETIM 9 | EC001584 - I/O device for bus system |
| ETIM 10 | EC001584 - I/O device for bus system |
| eClass | V11.0 : 27143145 |
| UNSPSC | 39122221 |
| Object Classification Code | A |
