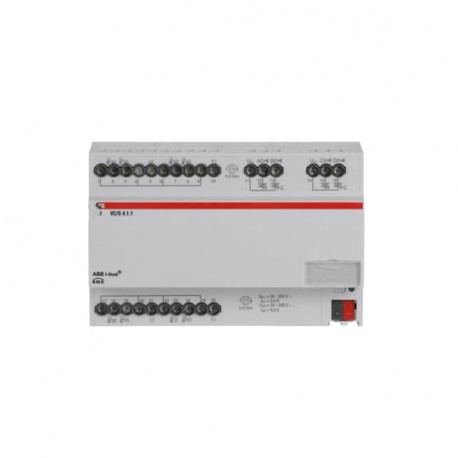

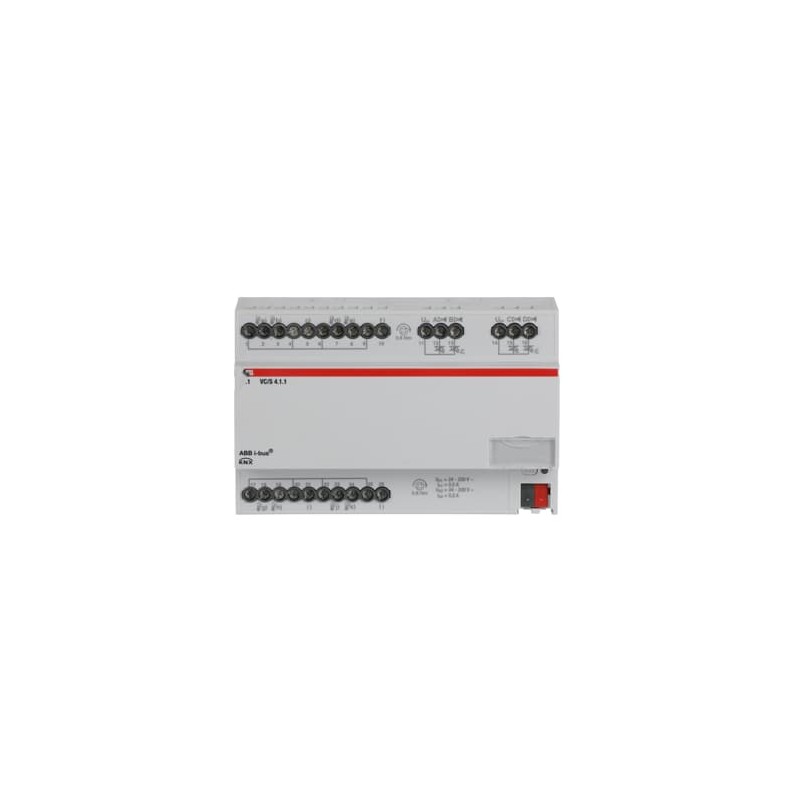

2CDG110216R0011 VC/S 4.1.1 NIESSEN Controlador de válvula, 4-can.
2CDG110216R0011
VC/S 4.1.1
NIESSEN
Controlador de válvula, 4-can.
Valve controller, 4-can.
VC/S4.1.1 Valve Drive Controller, 4-fold, MDRC
Installation bus systems > Heating actuator for bus system
KNX-EIB
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CDG941186P0002 |
| Wiring Diagram | 9AKK108464A0360 |
| Mounting Type | DIN-Rail |
| Environmental | |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 2CDC508244D0111 |
| Special Functions | Valve Protection |
| Number of Outputs | 4 |
| Number of Digital Inputs | 12 |
| Number of Inputs | Analog (0 ... 10 V / 4 ... 20 mA) 12 |
| Compatible Bus Systems | KNX (TP) |
| Manipulated Variable | Continious |
| Product Range | KNX |
| Manual Operation | No |
| Number of Batteries | 0 |
| Electrical | |
| Voltage Range | 230 V AC |
| Output Current Maximum (Iout) | 0.5 A |
| Power Loss | 3 W |
| Design | |
| Color | light grey |
| Dimensions | |
| Width in Number of Modular Spacings | 8.0 |
| Product Net Width | 140 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 63.5 mm |
| Product Net Weight | 0.27 kg |
| Dimension Diagram | 2CDC072027F0017 |
| Engineering | |
| EPLAN Data | 9AAC189186_EPLAN |
| Ordering | |
| E-Number (Finland) | 2814565 |
| E-Number (Sweden) | 1739455 |
| E-Number (Switzerland) | 405710115 |
| Material Compliance | |
| RoHS Declaration | 2CDK508250D2701 |
| RoHS Information | Following EU Directive 2011/65/EU |
| REACH Declaration | 9AKK108471A7754 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20251203 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| CB Certificate | 9AKK107991A3215 |
| Declaration of Conformity - CE | 2CDK508250D2701 |
| Declaration of Conformity - UK-PSTI | 9AKK108464A0790 |
| EU Data Act Compliance Declaration | 9AKK108470A9399 |
| Cyber Security Software Support Period | 2 year |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| External Classifications and Standards | |
| ETIM 9 | EC001586 - Heating actuator for bus system |
| ETIM 10 | EC001586 - Heating actuator for bus system |
| eClass | V11.0 : 27143147 |
| UNSPSC | 39121801 |
| Object Classification Code | A |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CDG110216R0011 VC/S 4.1.1 EN_2CDG110216R0011.pdf | 107 Kbytes |
|
