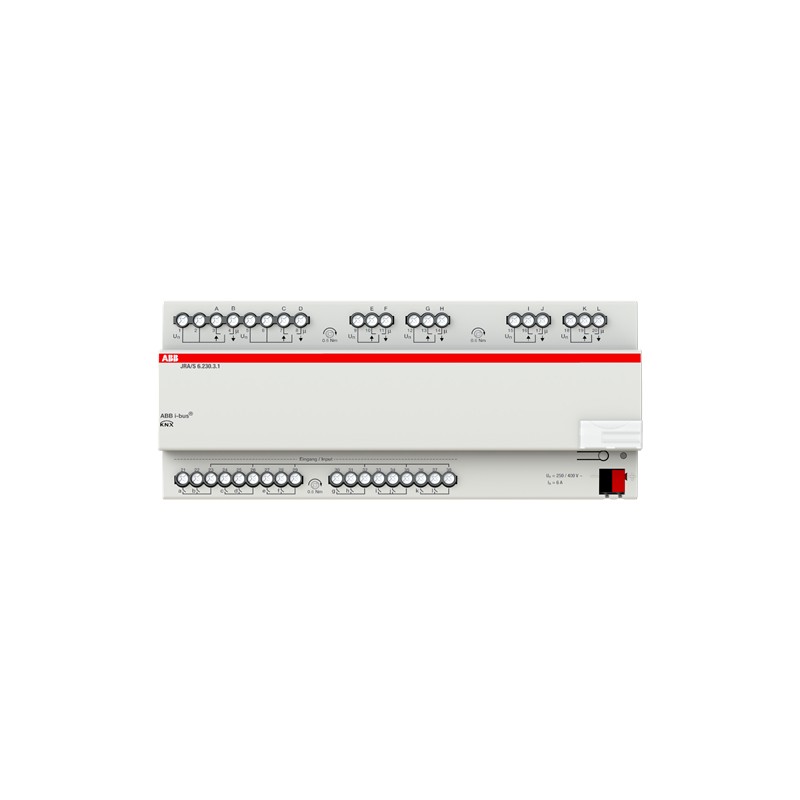

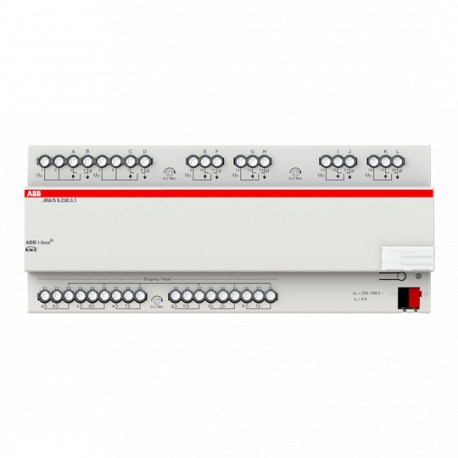

2CDG110208R0011 JRA/S 6.230.3.1 NIESSEN Blind actuator with binary inputs
2CDG110208R0011
JRA/S 6.230.3.1
NIESSEN
Blind actuator with binary inputs
Shutter actuator with binar inputs
JRA/S6.230.3.1 Blind/Roller Shutter Actuator with Binary Inputs, 6-f, MDRC
KNX-EIB
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CDG941184P0001 |
| Wiring Diagram | 9AKK108464A0344 |
| Mounting Type | DIN-Rail |
| Environmental | |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 9AKK107045A4294 |
| Number of Outputs | 6 |
| Number of Inputs | 12 |
| Compatible Bus Systems | KNX (TP) |
| Product Range | KNX |
| Manual Operation | No |
| Number of Batteries | 0 |
| Electrical | |
| Current Type | AC |
| Voltage Range | 230 V AC |
| Output Voltage (Uout) | 230 V AC |
| Maximum Switching Current | 6 A |
| Maximum Switching Power | 1380 W |
| Power Loss | 5.15 W |
| Design | |
| Color | light grey |
| Dimensions | |
| Width in Number of Modular Spacings | 12.0 |
| Product Net Width | 216 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 64.5 mm |
| Product Net Weight | 0.55 kg |
| Built-In Depth (t2) | 64.5 mm |
| Dimension Diagram | 2CDC072028F0017 |
| Engineering | |
| EPLAN Data | 9AAC189173_EPLAN |
| Ordering | |
| Replacement Product ID (NEW) | 2CDG110293R0011 |
| E-Number (Finland) | 2814546 |
| E-Number (Switzerland) | 405430165 |
| Material Compliance | |
| RoHS Declaration | 2CDK506085D2701 |
| RoHS Information | Following EU Directive 2011/65/EU |
| REACH Declaration | 9AKK108471A7754 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20251203 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | c28c3cfc-eb2c-4ad1-8b86-84b3f3513d6b Germany |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CDK506085D2701 |
| Declaration of Conformity - UK-PSTI | 9AKK108464A0702 |
| Cyber Security Software Support Period | 2 year |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| External Classifications and Standards | |
| ETIM 9 | EC001330 - Shutting actuator for bus system |
| ETIM 10 | EC001330 - Shutting actuator for bus system |
| eClass | V11.0 : 27143128 |
| UNSPSC | 39121801 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CDG110208R0011 JRA/S 6.230.3.1 EN_2CDG110208R0011.pdf | 362 Kbytes |
|
