> NIESSEN>KNX-EIB>2CDG110207R0011 SUG/U 1.1 NIESSEN Drive to Split
Previous Product Next Product

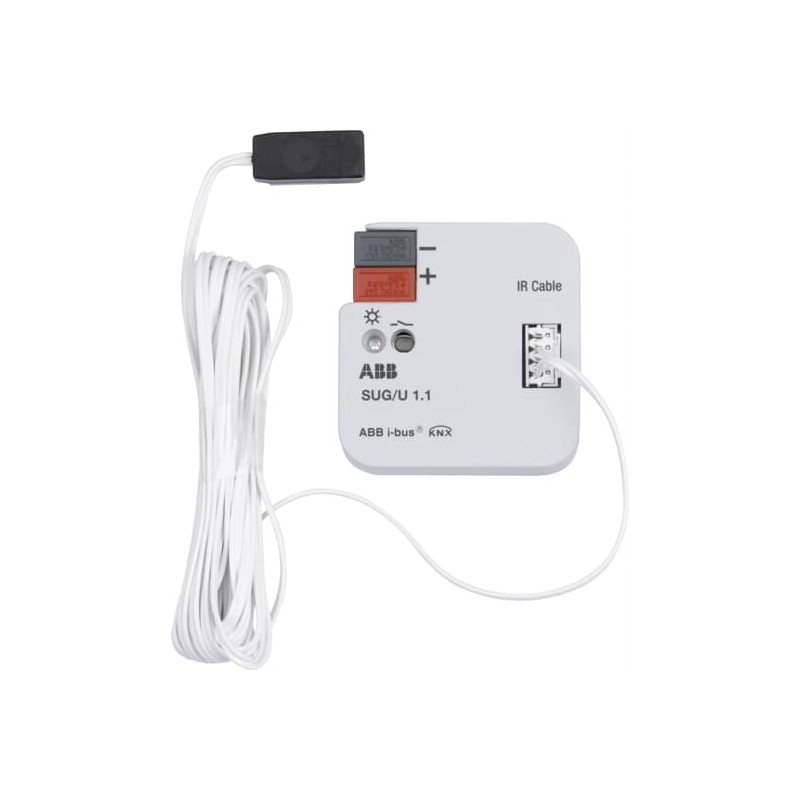

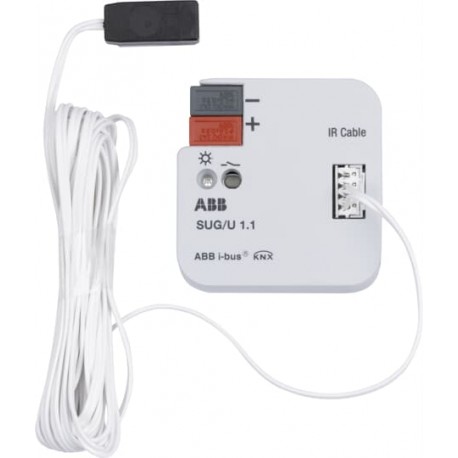

2CDG110207R0011 SUG/U 1.1 NIESSEN Drive to Split View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

2CDG110207R0011 SUG/U 1.1 NIESSEN Drive to Split

2CDG110207R0011

SUG/U 1.1

NIESSEN

Drive to Split

Unit for Split

The Split Unit Gateway forms the interface between the KNX system and many manufacturers’ air conditioners, so-called split units. The device converts the KNX telegrams into infrared commands and transmits them to the split unit.The transmitter of the supplied cable is bonded directly onto the split unit’s receiver. The split unit then no longer receives the commands from a remote control. Instead, it can be operated via any KNX sensors or via a visual display system. The device is put into operation with the ETS, and a free ETS app is available to select the split unit model. Auxiliary voltage is not required.

More details


KNX-EIB

* Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN

Total price: $179.73
Unit price: $179.73

Quantity Price
1+$179.73
2+$156.01
3+$150.45
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


  • Extended Product Type:
    SUG/U1.1
  • Product ID:
    2CDG110207R0011
  • EAN:
    4016779997362
  • Catalog Description:
    SUG/U1.1 Split Unit Gateway, FM
  • Long Description:
    The Split Unit Gateway forms the interface between the KNX system and many manufacturers’ air conditioners, so-called split units. The device converts the KNX telegrams into infrared commands and transmits them to the split unit.
    The transmitter of the supplied cable is bonded directly onto the split unit’s receiver. The split unit then no longer receives the commands from a remote control. Instead, it can be operated via any KNX sensors or via a visual display system. The device is put into operation with the ETS, and a free ETS app is available to select the split unit model. Auxiliary voltage is not required.

Installation

Technical

  • Data Sheet, Technical Information:
    2CDC508175D0201
  • Input Voltage (Uin):
    30 V
  • Power Loss:
    0.4 W
  • Communication Interface:
    IR-interface
  • Number of LEDs:
    1
  • Compatible Bus Systems:
    KNX (TP)
  • Product Range:
    KNX
  • Mounting Type:
    Flush Mounted
  • Software Updateable:
    Yes
  • Integrated Webserver:
    No
  • Manual Operation:
    No
  • Color:
    light grey
  • Number of Batteries:
    0
  • Application Function:
    Room Climate Control

Environmental

Dimensions

  • Product Net Width:
    12mm
  • Product Net Height:
    39mm
  • Product Net Depth / Length:
    40mm
  • Product Net Weight:
    0.02kg

Certificates and Declarations

Classifications

  • ETIM 8:
    EC001099 - System interface/media gateway for bus system
  • ETIM 9:
    EC001099 - System interface/media gateway for bus system
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Consumer
  • CN8:
    8517 62 00
  • UNSPSC:
    43222605
  • eClass:
    V11.0 : 27143136
  • IDEA Granular Category Code (IGCC):
    6809 >> System interface/media gateway for bus system
  • Object Classification Code:
    A

Datasheet - PDF

▲
Title: Size: Type:
2CDG110207R0011 SUG/U 1.1 EN_2CDG110207R0011.pdf 223 Kbytes 2CDG110207R0011 SUG/U 1.1 EN_2CDG110207R0011.pdf
