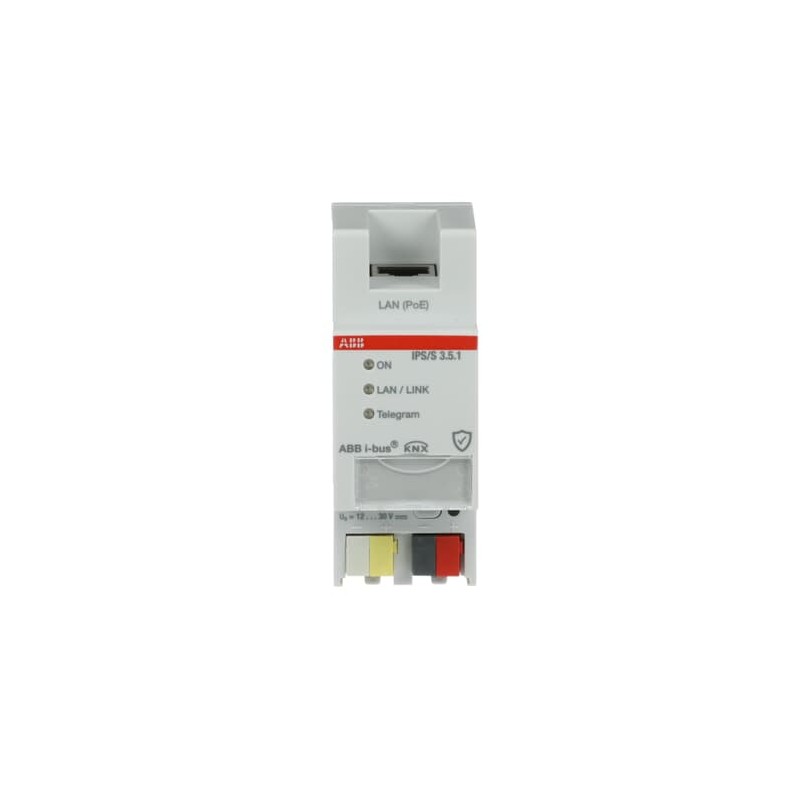

2CDG110204R0011 IPS/S 3.5.1 NIESSEN Interface IP secure, DIN
2CDG110204R0011
IPS/S 3.5.1
NIESSEN
Interface IP secure, DIN
IPS/S3.5.1 IP Interface Secure, MDRC
Installation bus systems > Interface for bus system
KNX-EIB
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CDG941182P0001 |
| Wiring Diagram | 9AKK108464A0302 |
| Mounting Type | DIN-Rail |
| Environmental | |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 9AKK107991A7342 |
| Communication Interface | Ethernet |
| Number of LEDs | 3 |
| Compatible Bus Systems | KNX (TP) |
| KNX (IP) | |
| Product Range | KNX |
| Manual Operation | No |
| Number of Batteries | 0 |
| Security Standard | KNX IP Secure |
| Electrical | |
| Voltage Range | PoE |
| Auxiliary Voltage AC/DC | 12 ... 30 V DC |
| Power Loss | 1.8 W |
| Design | |
| Surface Finishing | Matt |
| Housing Material | Plastic |
| RAL Number | RAL 7035 - Light Grey |
| Color | light grey |
| Dimensions | |
| Width in Number of Modular Spacings | 2.0 |
| Product Net Width | 36 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 64.5 mm |
| Product Net Weight | 0.1 kg |
| Dimension Diagram | 2CDC072025F0017 |
| Engineering | |
| EPLAN Data | 9AAC189149_EPLAN |
| Ordering | |
| E-Number (Finland) | 2815672 |
| E-Number (Norway) | 4544098 |
| E-Number (Sweden) | 1739849 |
| E-Number (Switzerland) | 405701055 |
| Material Compliance | |
| RoHS Declaration | 9AKK107991A5979 |
| RoHS Information | Following EU Directive 2011/65/EU |
| REACH Declaration | 9AKK108471A7754 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20251203 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK107991A5979 |
| Declaration of Conformity - UK-PSTI | 9AKK108464A0690 |
| EU Data Act Compliance Declaration | 9AKK108470A9399 |
| Cyber Security Software Support Period | 2 year |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| External Classifications and Standards | |
| ETIM 9 | EC000674 - Interface for bus system |
| ETIM 10 | EC000674 - Interface for bus system |
| eClass | V11.0 : 27143102 |
| UNSPSC | 43222605 |
| IDEA Granular Category Code (IGCC) | 6809 >> System interface/media gateway for bus system |
| Object Classification Code | A |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CDG110204R0011 IPS/S 3.5.1 EN_2CDG110204R0011.pdf | 226 Kbytes |
|
