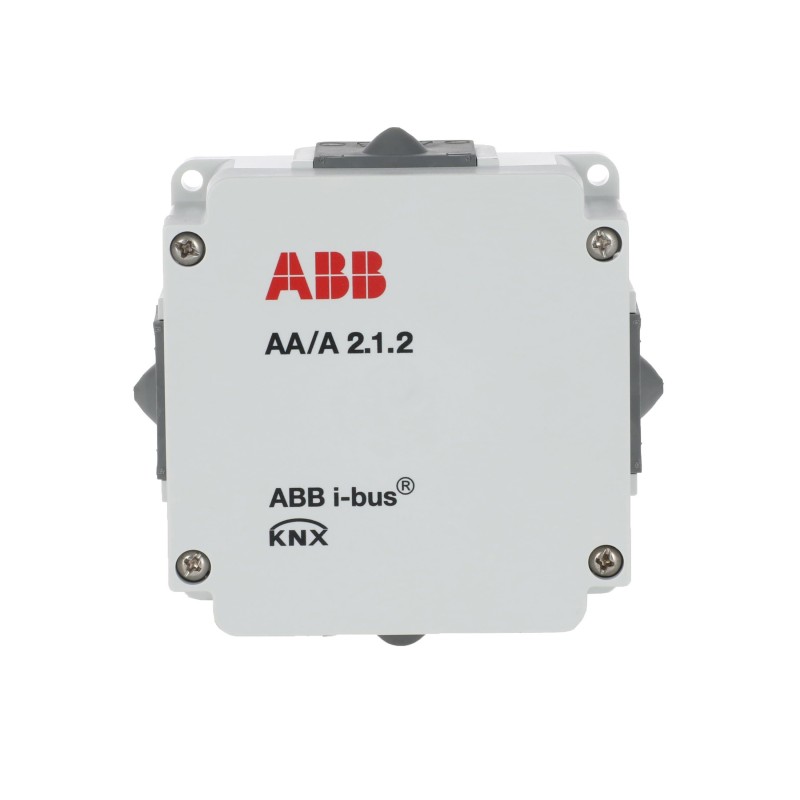

2CDG110203R0011 AA/A 2.1.2 NIESSEN Module-Actuator Analog, 2-channel, SM
2CDG110203R0011
AA/A 2.1.2
NIESSEN
Module-Actuator Analog, 2-channel, SM
Mód. Analog Actuator, 2 channels, SM
The Analogue Actuator converts KNX telegrams in voltage (0…10V) signals. These analogue output signals are used to influence regulatory processes. For example, devices for heating, air conditioning or ventilation applications can be adjusted in their operation depending on the information, which are transmitted via the bus system. This Analogue Actuator is a 2-fold device with a housing for surface mounting. The ABB i-bus Tool is supported for advanced diagnosis and improved commissioning.
Installation bus systems > Analogue actuator for bus system
KNX-EIB
* Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
More info
▲- Extended Product Type:
- AA/A 2.1.2
- Product ID:
- 2CDG110203R0011
- EAN:
- 4016779954075
- Catalog Description:
- AA/A2.1.2 Analogue Actuator, 2-fold, SM
- Long Description:
- The Analogue Actuator converts KNX telegrams in voltage (0…10V) signals. These analogue output signals are used to influence regulatory processes. For example, devices for heating, air conditioning or ventilation applications can be adjusted in their operation depending on the information, which are transmitted via the bus system. This Analogue Actuator is a 2-fold device with a housing for surface mounting. The ABB i-bus Tool is supported for advanced diagnosis and improved commissioning.
Installation
- Instructions and Manuals:
- 2CDG941173P0002
Technical
- Data Sheet, Technical Information:
- 2CDC505169D0201
- Voltage Range:
- 0 ... 10 V DC
- Auxiliary Voltage AC/DC:
- KNX
- Output Voltage (Uout):
- 0 ... 10 V DC
- Power Loss:
- 0.3 W
- Number of Outputs:
- 2
- Number of LEDs:
- 1
- Compatible Bus Systems:
- KNX (TP)
- Product Range:
- KNX
- Mounting Type:
- Surface Mounted
- Manual Operation:
- No
- Model Number:
- Base module
- Color:
- light grey
- Number of Batteries:
- 0
- Application Function:
- Electrical Load and Light Control
Room Climate Control
Environmental
- Ambient Air Temperature:
- Operation -20 ... +70 °C
- Degree of Protection:
- IP54
- RoHS Status:
- Following EU Directive 2011/65/EU
- RoHS Information:
- 2CDK505164D2701
- REACH Declaration:
- 9AKK108468A9644
- SCIP:
- dc5ed82c-f241-4291-882b-062944c53983 Germany (DE)
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Product Net Width:
- 117mm
- Product Net Height:
- 117mm
- Product Net Depth / Length:
- 51mm
- Product Net Weight:
- 0.26kg
- Built-In Depth (t2):
- 51 mm
- Dimension Diagram:
- 9AKK108464A0587
Certificates and Declarations
- Declaration of Conformity - CE:
- 2CDK505164D2701
Classifications
- ETIM 8:
- EC001096 - Analogue actuator for bus system
- ETIM 9:
- EC001096 - Analogue actuator for bus system
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 8537 10 91
- eClass:
- V11.0 : 27143109
- Object Classification Code:
- A
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 2CDG110203R0011 AA/A 2.1.2 EN_2CDG110203R0011.pdf | 264 Kbytes |
 |
