2CDG110108R0011 LR/M 1.6.2 NIESSEN CONTR. LUZ, 1 CANAL, PARA RC/A
2CDG110108R0011
LR/M 1.6.2
NIESSEN
CONTR. LUZ, 1 CANAL, PARA RC/A
CONTR. LIGHT, 1 CHANNEL, FOR RC/A

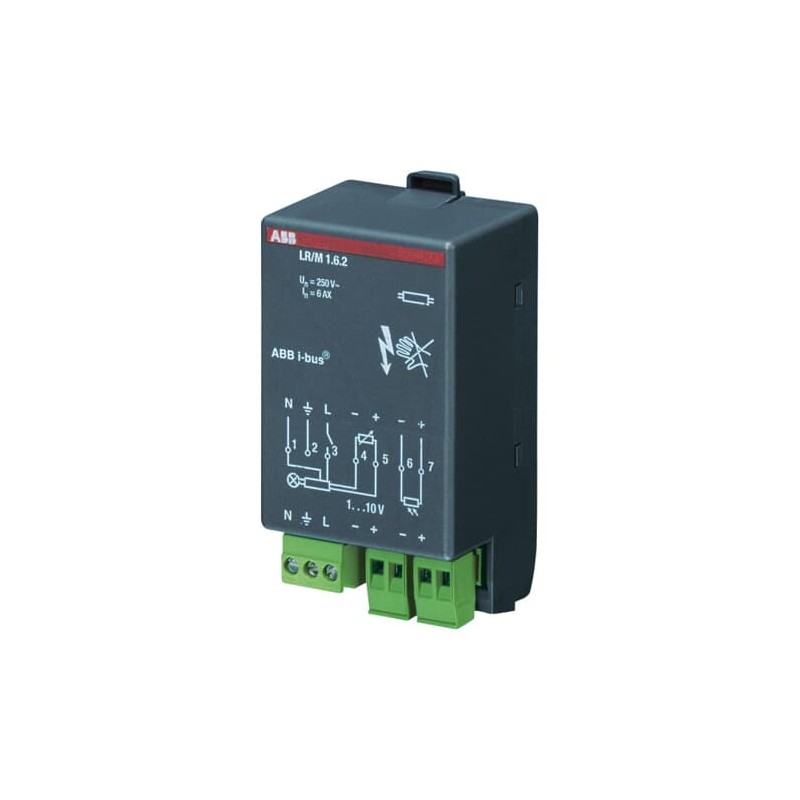

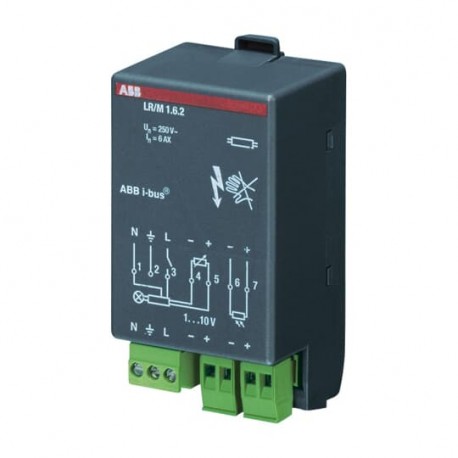

LR/M1.6.2 Light Controller Module, 1-fold, 6 AX
Installation bus systems > Light control unit for bus system
KNX-EIB
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CDG941065P0002 |
| Wiring Diagram | 9AKK108469A6672 |
| Mounting Type | Built-in |
| Environmental | |
| Degree of Protection | IP54 |
| Technical | |
| Data Sheet, Technical Information | 2CDC514016D0202 |
| Number of Outputs | 1 |
| Compatible Bus Systems | KNX (TP) |
| Product Range | KNX |
| Transmission Standard | Twisted Pair Wiring |
| Manual Operation | No |
| Number of Batteries | 0 |
| Terminal Type | Bus Connection |
| Electrical | |
| Voltage Range | 230 V |
| Output Voltage (Uout) | 230 V AC |
| Maximum Switching Current | 6 A |
| Maximum Control Current DC | 30 mA |
| Power Loss | 0 W |
| Design | |
| Color | anthracite |
| Dimensions | |
| Product Net Width | 49 mm |
| Product Net Height | 42 mm |
| Product Net Depth / Length | 93 mm |
| Product Net Weight | 0.1 kg |
| Dimension Diagram | 9AKK108464A0846 |
| Engineering | |
| EPLAN Data | 9AKK108464A1069 |
| Ordering | |
| E-Number (Finland) | 2815323 |
| E-Number (Norway) | 4546601 |
| E-Number (Switzerland) | 405665305 |
| Material Compliance | |
| RoHS Declaration | 2CDK514084D2701 |
| RoHS Information | Following EU Directive 2011/65/EU |
| REACH Declaration | 9AKK108471A7754 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20251203 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CDK514084D2701 |
| Declaration of Conformity - UK-PSTI | 9AKK108464A0712 |
| Cyber Security Software Support Period | 2 year |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC001095 - Light control unit for bus system |
| ETIM 10 | EC001095 - Light control unit for bus system |
| eClass | V11.0 : 27143134 |
| UNSPSC | 39121801 |
| Object Classification Code | A |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CDG110108R0011 LR/M 1.6.2 EN_2CDG110108R0011.pdf | 85 Kbytes |
|
