> MURRPLASTIK>Corrugated pipes and fittings>VW 90 P29-K 83515420 MURRPLASTIK Conduits and fitting systems Type VW 90° plastic thread Pg plastic threading
Previous Product Next Product

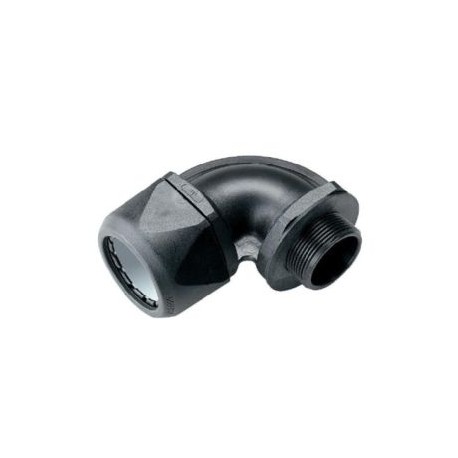

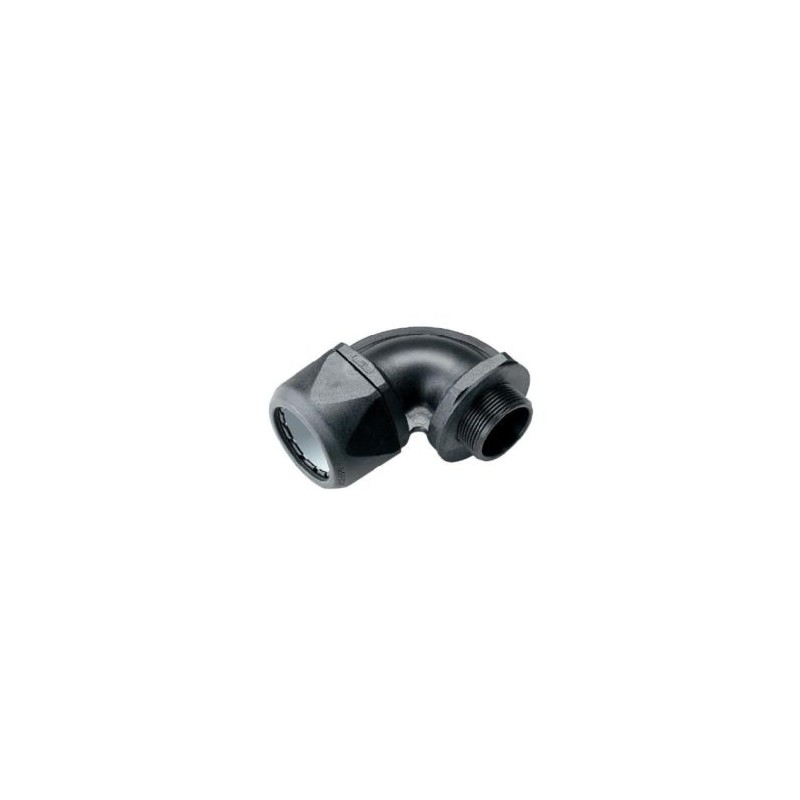

VW 90 P29-K 83515420 MURRPLASTIK Conduits and fitting systems Type VW 90° plastic thread Pg plastic threading View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

VW 90 P29-K 83515420 MURRPLASTIK Conduits and fitting systems Type VW 90° plastic thread Pg plastic threading

83515420

MURRPLASTIK

25

Conduits and fitting systems Type VW 90° (plastic thread) Pg plastic threading Grey

More details


Corrugated pipes and fittings

* Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

Total price: $266.21
Unit price: $10.65

Quantity Price
25+$10.65
50+$9.73
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


The VW 90° conduit fittings are made of specially modified polyamide 6 and thermoplastic elastomer. The materials are halogen, phosphor and cadmium-free.

The VW 90° conduit fittings feature the following advantages:

Quick assembly, insert conduit, screw upper part tight, done

No parts can get lost, delivered completely assembled

Resistant to vibration due to lockable cap nut

Clamping along entire circumference, ensuring maximum tensile strength.

High level of tightness at IP 68/69K to 6 bar without any add-on components to EN 60529

Specification:

EN 45545-2 3x HL3

Halogen-free

-40°C – 110°C, transient / short term 140°C

i.a.w. UL94 V0

IP 68

EU railway approval

CSA approval

CURUS approval

Type Order No. Colour Connecting thread Suitable for Murrflex EH mm GL mm LW mm B mm SW 1 / 2 mm Pack qty.

Metric plastic thread

VW 90 M12-K 83515052 Black M12x1.5 M12/P09 29 12 7.2 45 21 / 21 50
VW 90 M16-K 83515054 Black M16x1,5 M16/P11 35 12 10.5 55 27 / 27 50
VW 90 M20-K 83515056 Black M20x1.5 M20/P16 45 13 14.7 67 34 / 34 50
VW 90 M25-K 83515058 Black M25x1.5 M25/P21 55 13 18.7 78 41 / 41 25
VW 90 M32-K 83515060 Black M32x1.5 M32/P29 65 15 25.5 92 50 / 50 25
VW 90 M40-K 83515062 Black M40x1.5 M40/P36 75 17 33 109 60 / 60 25
VW 90 M50-K 83515064 Black M50x1.5 M50/P48 93 17 42 134 75 / 75 10
VW 90 M12-K 83515012 Grey M12x1.5 M12/P09 29 12 7.2 45 21 / 21 50
VW 90 M16-K 83515014 Grey M16x1,5 M16/P11 35 12 10.5 55 27 / 27 50
VW 90 M20-K 83515016 Grey M20x1.5 M20/P16 45 13 14.7 67 34 / 34 50
VW 90 M25-K 83515018 Grey M25x1.5 M25/P21 55 13 18.7 78 41 / 41 25
VW 90 M32-K 83515020 Grey M32x1.5 M32/P29 65 15 25.5 92 50 / 50 25
VW 90 M40-K 83515022 Grey M40x1.5 M40/P36 75 17 33 109 60 / 60 25
VW 90 M50-K 83515024 Grey M50x1.5 M50/P48 93 17 42 134 75 / 75 10

Pg plastic threading

VW 90 P9-K 83515452 Black Pg 09 M12/P09 29 12 7.2 45 21 / 21 50
VW 90 P11-K 83515454 Black Pg 11 M16/P11 35 12 10.5 55 27 / 27 50
VW 90 P16-K 83515456 Black Pg 16 M20/P16 45 13 14.7 67 34 / 34 50
VW 90 P21-K 83515458 Black Pg 21 M25/P21 44 13 18.7 78 41 / 41 25
VW 90 P29-K 83515460 Black Pg 29 M32/P29 65 14 25.5 92 50 / 50 25
VW 90 P36-K 83515462 Black Pg 36 M40/P36 75 17 33 109 60 / 60 25
VW 90 P48-K 83515464 Black Pg 48 M50/P48 93 17 42 134 75 / 75 10
VW 90 P9-K 83515412 Grey Pg 09 M12/P09 29 12 7.2 45 21 / 21 50
VW 90 P11-K 83515414 Grey Pg 11 M16/P11 35 12 10.5 55 27 / 27 50
VW 90 P16-K 83515416 Grey Pg 16 M20/P16 45 13 14.7 67 34 / 34 50
VW 90 P21-K 83515418 Grey Pg 21 M25/P21 44 13 18.7 78 41 / 41 25
VW 90 P29-K 83515420 Grey Pg 29 M32/P29 65 14 25.5 92 50 / 50 25
VW 90 P36-K 83515422 Grey Pg 36 M40/P36 75 17 33 109 60 / 60 25
VW 90 P48-K 83515424 Grey Pg 48 M50/P48 93 17 42 134 60 / 60 10

NPT plastic threading

VW 90 N 3/8"-K 83515850 Black 3/8" M16/P11 35 12 10.5 55 25 / 25 50
VW 90 N 1/2"-K 83515852 Black 1/2" M20/P16 45 13 14.6 67 34 / 34 50
VW 90 N 3/4"-K 83515854 Black 3/4" M25/P21 55 14 18.7 78 41 / 41 25
VW 90 N 1"-K 83515856 Black 1" M32/P29 65 14 25.6 92 50 / 50 25
VW 90 N 1 1/4 -K 83515858 Black 1 1/4" M40/P36 75 18 33 109 60 / 60 25
VW 90 N 2"-K 83515860 Black 2" M50/P48 93 18 42 134 75 / 75 10
VW 90 N 3/8"-K 83515810 Grey 3/8" M16/P11 35 12 10.5 55 25 / 25 50
VW 90 N 1/2"-K 83515812 Grey 1/2" M20/P16 45 13 14.6 67 34 / 34 50
VW 90 N 3/4"-K 83515814 Grey 3/4" M25/P21 55 14 18.7 78 41 / 41 25
VW 90 N 1"-K 83515816 Grey 1" M32/P29 65 14 25.6 92 50 / 50 25
VW 90 N 1 1/4 -K 83515818 Grey 1 1/4" M40/P36 75 18 33 109 60 / 60 25
VW 90 N 2"-K 83515820 Grey 2" M50/P48 93 18 42 134 75 / 75 10

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf 10 Mbytes
