> >>VW 45 NPT 2quot-K 83513860 MURRPLASTIK Conduits and fitting systems Type VW 45° plastic thread NPT plastic thread
Previous Product Next Product

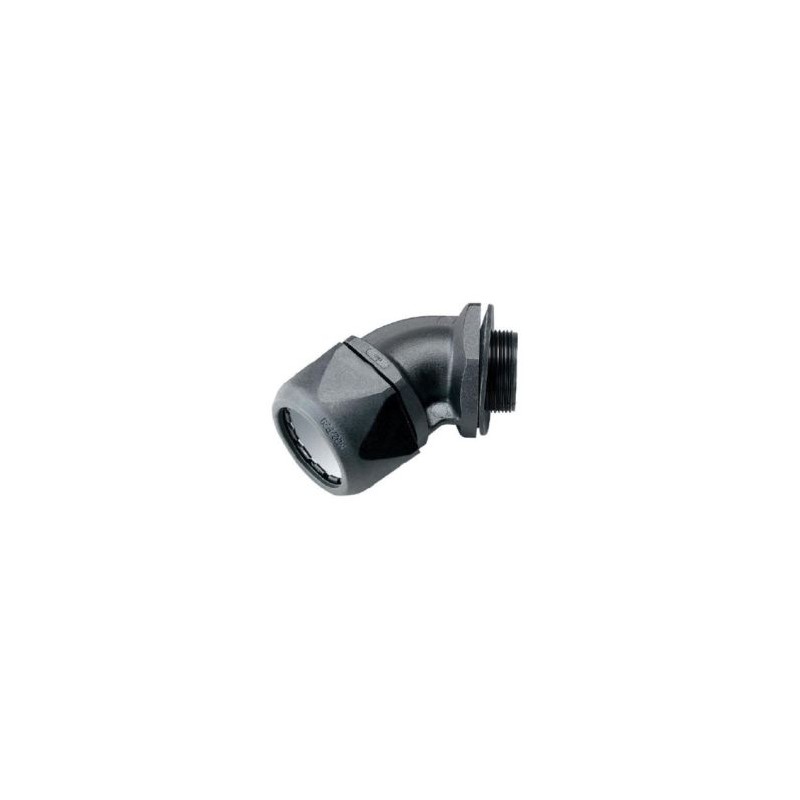

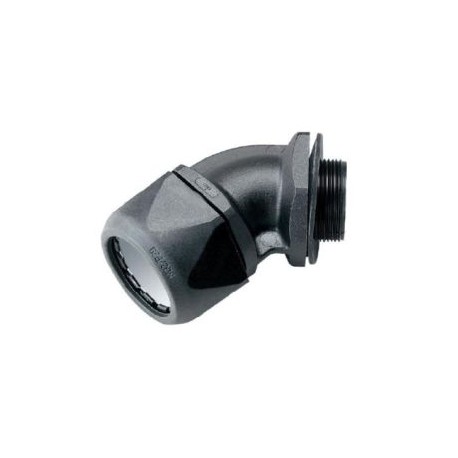

VW 45 NPT 2quot-K 83513860 MURRPLASTIK Conduits and fitting systems Type VW 45° plastic thread NPT plastic thread View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

VW 45 NPT 2quot-K 83513860 MURRPLASTIK Conduits and fitting systems Type VW 45° plastic thread NPT plastic thread

83513860

MURRPLASTIK

10

Conduits and fitting systems Type VW 45° (plastic thread) NPT plastic threading Black

More details


Corrugated pipes and fittings

* Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

Total price: $271.99
Unit price: $27.20

Quantity Price
10+$27.20
20+$24.38
30+$23.23
40+$22.58
50+$22.33
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


The VW 45° conduit fittings are made of specially modified polyamide 6 and thermoplastic elastomer. The materials are halogen, phosphor and cadmium-free.

The VW 45° conduit fittings feature the following advantages:

Quick assembly, insert conduit, screw upper part tight, done

No parts can get lost, delivered completely assembled

Resistant to vibration due to lockable cap nut

Clamping along entire circumference, ensuring maximum tensile strength.

High level of tightness at IP 68/69K without any add-on components to EN 60529

Specification:

EN 45545-2 3x HL3

Halogen-free

-40°C – 110°C, transient / short term 140°C

i.a.w. UL94 V0

IP 68

EU railway approval

CSA approval

CURUS approval

Type Order No. Colour Connecting thread Suitable for Murrflex EH mm GL mm LW mm B mm SW 1 / 2 mm Pack qty.

Metric plastic thread

VW 45 M12-K 83513052 Black M12x1.5 M12/P09 38 12 7.2 36 21 / 21 50
VW 45 M16-K 83513054 Black M16x1,5 M16/P11 45 12 10.5 43 27 / 27 50
VW 45 M20-K 83513056 Black M20x1.5 M20/P16 56 13 14.6 52 34 / 34 50
VW 45 M25-K 83513058 Black M25x1.5 M25/P21 65 13 18.7 65 41 / 41 25
VW 45 M32-K 83513060 Black M32x1.5 M32/P29 77 14 25.5 79 50 / 50 25
VW 45 M40-K 83513062 Black M40x1.5 M40/P36 90 17 33 95 60 / 60 25
VW 45 M50-K 83513064 Black M50x1.5 M50/P48 105 17 42 115 75 / 75 10
VW 45 M12-K 83513012 Grey M12x1.5 M12/P09 38 12 7.2 36 21 / 21 50
VW 45 M16-K 83513014 Grey M16x1,5 M16/P11 45 12 10.5 43 27 / 27 50
VW 45 M20-K 83513016 Grey M20x1.5 M20/P16 56 13 14.6 52 34 / 34 50
VW 45 M25-K 83513018 Grey M25x1.5 M25/P21 65 13 18.7 65 41 / 41 25
VW 45 M32-K 83513020 Grey M32x1.5 M32/P29 77 14 25.5 79 50 / 50 25
VW 45 M40-K 83513022 Grey M40x1.5 M40/P36 90 17 33 95 60 / 60 25
VW 45 M50-K 83513024 Grey M50x1.5 M50/P48 105 17 42 115 75 / 75 10

Pg plastic threading

VW 45 P9-K 83513452 Black Pg 09 M12/P09 38 12 7.2 36 21 / 21 50
VW 45 P11-K 83513454 Black Pg 11 M16/P11 45 12 10.5 43 27 / 27 50
VW 45 P16-K 83513456 Black Pg 16 M20/P16 56 13 14.6 52 34 / 34 50
VW 45 P21-K 83513458 Black Pg 21 M25/P21 65 13 18.7 65 41 / 41 25
VW 45 P29-K 83513460 Black Pg 29 M32/P29 77 14 25.5 79 50 / 50 25
VW 45 P36-K 83513462 Black Pg 36 M40/P36 90 17 33 95 60 / 60 25
VW 45 P48-K 83513464 Black Pg 48 M50/P48 105 17 42 115 75 / 75 10
VW 45 P9-K 83513412 Grey Pg 09 M12/P09 38 12 7.2 36 21 / 21 50
VW 45 P11-K 83513414 Grey Pg 11 M16/P11 45 12 10.5 43 27 / 27 50
VW 45 P16-K 83513416 Grey Pg 16 M20/P16 56 13 14.6 52 34 / 34 50
VW 45 P21-K 83513418 Grey Pg 21 M25/P21 65 13 18.7 65 41 / 41 25
VW 45 P29-K 83513420 Grey Pg 29 M32/P29 77 14 25.5 79 50 / 50 25
VW 45 P36-K 83513422 Grey Pg 36 M40/P36 90 17 33 95 60 / 60 25
VW 45 P48-K 83513424 Grey Pg 48 M50/P48 105 17 42 115 75 / 75 10

NPT plastic threading

VW 45 NPT 3/8"-K 83513850 Black 3/8" M16/P11 45 12 10.5 43 25 / 25 50
VW 45 NPT 1/2"-K 83513852 Black 1/2" M20/P16 56 13 14.6 52 33 / 33 50
VW 45 NPT 3/4"-K 83513854 Black 3/4" M25/P21 65 13 18.7 65 41 / 41 25
VW 45 NPT 1"-K 83513856 Black 1" M32/P29 77 14 25.5 79 50 / 50 25
VW 45 NPT 1 1/4"-K 83513858 Black 1 1/4" M40/P36 90 17 33 95 60 / 60 25
VW 45 NPT 2"-K 83513860 Black 2" M50/P48 105 17 42 115 75 / 75 10
VW 45 NPT 3/8"-K 83513810 Grey 3/8" M16/P11 45 12 10.5 43 25 / 25 50
VW 45 NPT 1/2"-K 83513812 Grey 1/2" M20/P16 56 13 14.6 52 33 / 33 50
VW 45 NPT 3/4"-K 83513814 Grey 3/4" M25/P21 65 13 18.7 65 41 / 41 25
VW 45 NPT 1"-K 83513816 Grey 1" M32/P29 77 14 25.5 79 50 / 50 25
VW 45 NPT 1 1/4"-K 83513818 Grey 1 1/4" M40/P36 90 17 33 95 60 / 60 25
VW 45 NPT 2"-K 83513820 Grey 2" M50/P48 105 17 42 115 75 / 75 10

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf 10 Mbytes
