> MURRPLASTIK>Accessories for Robotics>SH-PF / M40-M50 83691470 MURRPLASTIK SH system holder System holder with continuous fin
Previous Product Next Product

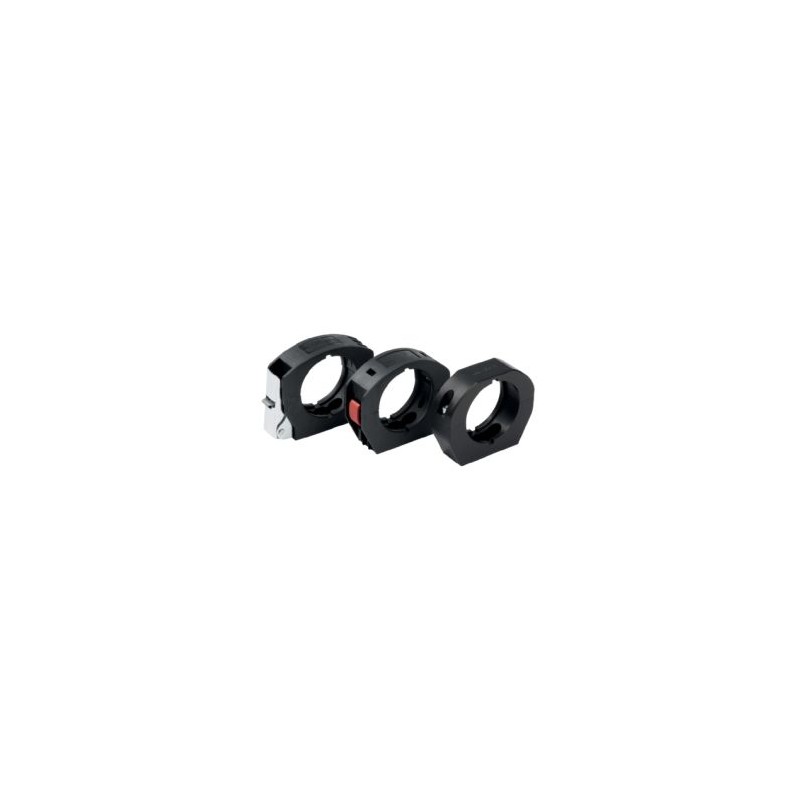

SH-PF / M40-M50 83691470 MURRPLASTIK SH system holder System holder with continuous fin View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

SH-PF / M40-M50 83691470 MURRPLASTIK SH system holder System holder with continuous fin

SH-PF / M40-M50

83691470

MURRPLASTIK

SH system holder System holder with continuous fin

More details


Accessories for Robotics

* Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


The SH system holder is the optimally tuned main component which, especially in conjunction with Murr Flex cable protection conduits and the inlays, is able to promise excellent performance in terms of stability, operational flexibility and durability, even under high dynamic loads.

The SH 56/70 & SH 56/70-M system holder is made of a modified, impact resistant polyamide, whereas the SH 56/70-A is made of black anodised aluminium.

Suitable for original equipment, subsequent installations or repairs

Excellent system stability

Easy installation of inlays and the cable protection conduit without tools

Suitable for 4 different inserts/inlays

Simple and easy configuration for dynamic or rigid applications

Cost reduction – only one holder system for every application

Versatile mounting options

Halogen-free

-40°C – 110°C, transient / short term 140°C

i.a.w. UL94 V0

ROBI approval

Type Order No. Colour A mm B mm C mm E mm Pack qty.

System holder without continuous fin

SH-P/M25-M32 83691462 Black 73 62 26 8.6 1
SH-P/M40-M50 83691460 Black 104.5 90 33 8.8 1
SH 56/70 83691490 Black 135 120 33 8.8 1
SH 80/95 system holder, sw 83691506 Black 150 147 40 8.8 1

System holder with continuous fin

SH-F / M40-M50 83691450 Black 104.5 90 33 8.8 1
SH-PF / M40-M50 83691470 Black 104.5 90 33 8.8 1

System holder with metal closing

SH M40/M50-M 83691501 Black 118 90 33 8.8 1
SH 56/70-M 83691502 Black 135 120 33 8.8 1

System holder made of aluminium

SH M40/M50-A 83691503 Anodised black 104.5 90 30 8.8 1
SH 56/70-A 83691504 Anodised black 130 121 35 8.8 1

Conduit holder inlay

ELR M40-M50 83691480 Red 1

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRPLASTIKS ROBOTIC EQUIPMENT EN.pdf 5 Mbytes
