> MURRPLASTIK>Corrugated pipes and fittings>SA 95 83681016 MURRPLASTIK Conduits and fitting systems Type SA-Jumbo flange connection Black
Previous Product Next Product

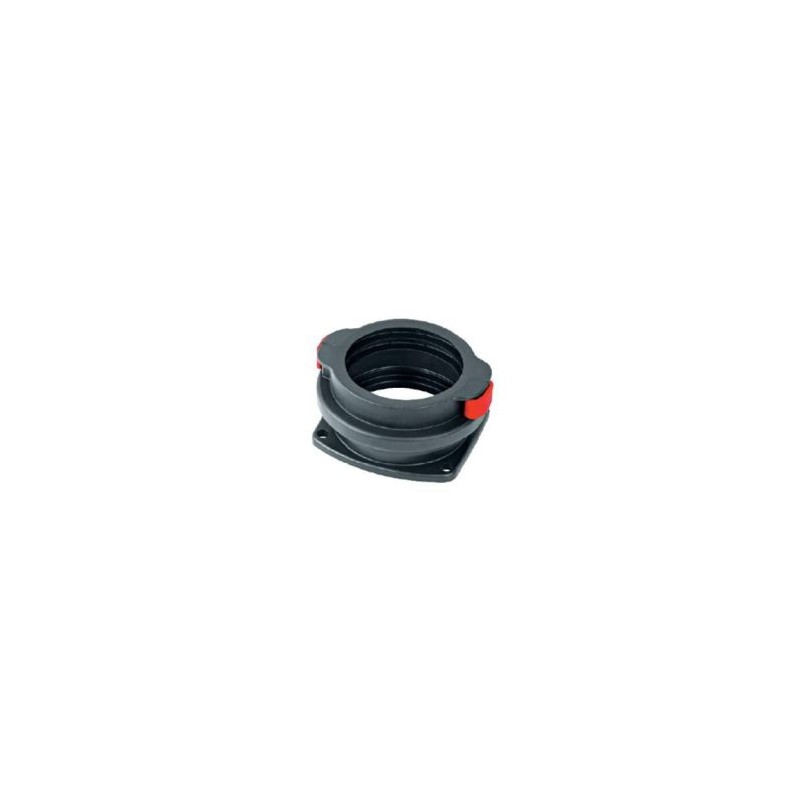

SA 95 83681016 MURRPLASTIK Conduits and fitting systems Type SA-Jumbo flange connection Black View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

SA 95 83681016 MURRPLASTIK Conduits and fitting systems Type SA-Jumbo flange connection Black

83681016

MURRPLASTIK

Conduits and fitting systems Type SA-Jumbo (flange connection) Black

More details


Corrugated pipes and fittings

* Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

Total price: $41.76
Unit price: $41.76

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Die SA-Jumbo flange connections are made of specially modified polyamide. The material is halogen, phosphor and cadmium-free.

The SA-Jumbo flange connections feature the following advantages:

Split ring makes assembly easy

Tightness of IP 52 without DS seal

Tightness of IP 65 with DS seal (DS seal must be ordered separately if required)

Dimensionally stable connection ring ensures high tear-out strength

Safety clips ensure protection against connection ring opening by itself

O-ring for fastening flange included in delivery

Halogen-free

-40°C – 110°C, transient / short term 140°C

i.a.w. UL94 V0

IP 52IP 65

Type Order No. Colour A mm B mm C mm D mm E mm F mm G mm Ø mm Pack qty.
SA 56 83681020 Black 60 66 85 50 6.5 94 86 60 1
SA 70 83681014 Black 60 80 94 52 7.5 106 96 70 1
SA 95 83681016 Black 74 108 126 52 7.5 132 126 95 1
SA 56 83681008 Grey 60 66 85 50 6.5 94 86 60 1
SA 70 83681010 Grey 60 80 94 52 7.5 106 96 70 1
SA 95 83681012 Grey 74 108 126 52 7.5 132 126 95 1

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf 10 Mbytes
