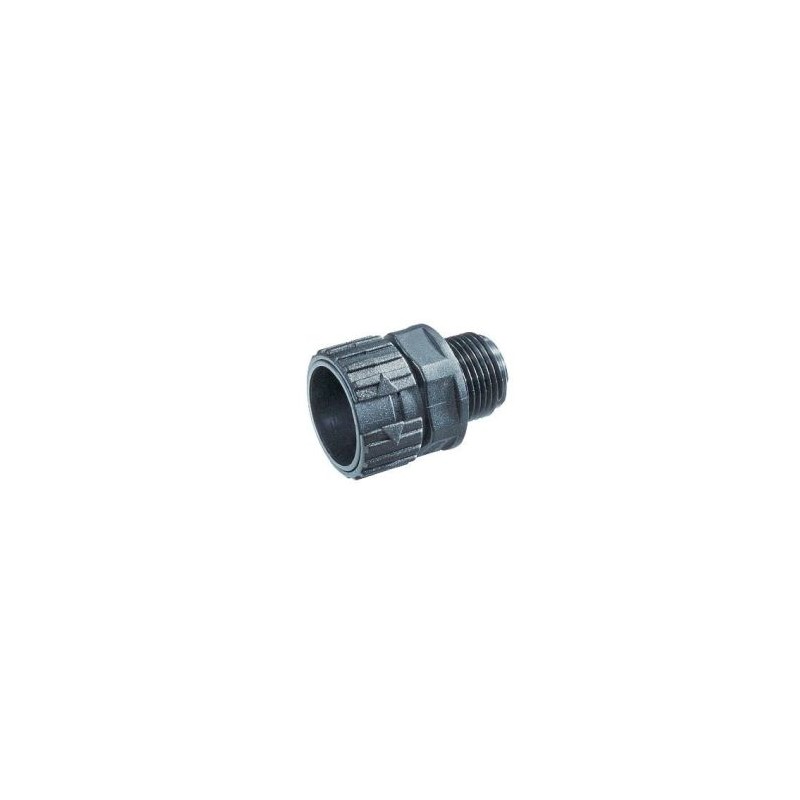

> MURRPLASTIK>Corrugated pipes and fittings>MSV-PG 48 83601066 MURRPLASTIK Conduits and fitting systems Type MSV plug-in fitting Pg plastic threading Blac
Previous Product Next Product

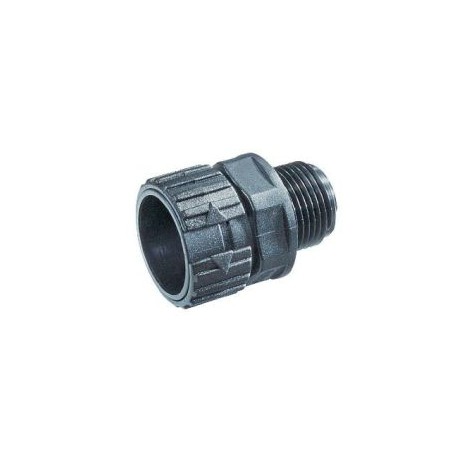

MSV-PG 48 83601066 MURRPLASTIK Conduits and fitting systems Type MSV plug-in fitting Pg plastic threading Blac View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

MSV-PG 48 83601066 MURRPLASTIK Conduits and fitting systems Type MSV plug-in fitting Pg plastic threading Blac

83601066

MURRPLASTIK

10

Conduits and fitting systems Type MSV (plug-in fitting) Pg plastic threading Black

More details


Corrugated pipes and fittings

* Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

Total price: $401.91
Unit price: $40.19

Quantity Price
10+$40.19
20+$40.15
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


The MSV conduit fittings are made of specially modified polyamide 6. The materials are halogen, phosphor and cadmium-free.

The affordable MSV conduit fittings feature the following advantages:

No parts can get lost, delivered completely assembled

Cost reduction through simple assembly work, insert conduit and done

Simple opening mechanism

Tightness of IP 54 for static and dynamic application, IP 65 with additional mounting of an O-ring

Specification:

EN 45545-2 3x HL3

Halogen-free

-40°C – 110°C, transient / short term 140°C

i.a.w. UL94 V0

IP 54IP 65

EU railway approval

Type Order No. Colour Connecting thread Suitable for Murrflex EH mm GL mm LW mm SW 1 mm Pack qty.

Metric thread

MSV-M12x1.5/7 83602450 Black M12x1.5 M10/P07 19 13 8 16 50
MSV-M12x1.5/9 83602452 Black M12x1.5 M12/P09 19 13 8 18 50
MSV-M12x1.5/11 83602456 Black M12x1.5 M16/P11 23 13 8 21 50
MSV-M16x1.5/9 83602454 Black M16x1,5 M12/P09 19 13 12 18 50
MSV-M16x1.5/11 83602458 Black M16x1,5 M16/P11 23 13 12 21 50
MSV-M20x1.5/11 83602459 Black M20x1.5 M16/P11 23 14 13.5 21 50
MSV-M20x1.5/16 83602460 Black M20x1.5 M20/P16(S) 27 14 15 27 50
MSV-M25x1.5/16 83602461 Black M25x1.5 M20/P16(S) 26 14 19 27 50
MSV-M25x1.5/21 83602462 Black M25x1.5 M25/P21(S) 32 14 21 36 50
MSV-M32x1.5/21 83602463 Black M32x1.5 M25/P21(S) 32 14 26 36 50
MSV-M32x1.5/29 83602464 Black M32x1.5 M32/P29(S) 34 14 27 40 25
MSV-M40x1.5/29 83602465 Black M40x1.5 M32/P29(S) 34 14 32 40 25
MSV-M40x1.5/36 83602466 Black M40x1.5 M40/P36(S) 38 16 34 49 10
MSV-M50x1.5/36 83602467 Black M50x1.5 M40/P36(S) 37.5 16 40 49 10
MSV-M50x1.5/48 83602468 Black M50x1.5 M50/P48(S) 39 16 44 60 10
MSV-M63x1.5/48 83602469 Black M63x1.5 M50/P48(S) 38.5 16 52 60 10
MSV-M12x1.5/7 83602410 Grey M12x1.5 M10/P07 19 13 8 16 50
MSV-M12x1.5/9 83602412 Grey M12x1.5 M12/P09 19 13 8 18 50
MSV-M12x1.5/11 83602416 Grey M12x1.5 M16/P11 23 13 8 21 50
MSV-M16x1.5/9 83602414 Grey M16x1,5 M12/P09 19 13 12 18 50
MSV-M16x1.5/11 83602418 Grey M16x1,5 M16/P11 23 13 12 21 50
MSV-M20x1.5/11 83602419 Grey M20x1.5 M16/P11 23 14 13.5 21 50
MSV-M20x1.5/16 83602420 Grey M20x1.5 M20/P16(S) 27 14 15 27 50
MSV-M25x1.5/16 83602421 Grey M25x1.5 M20/P16(S) 26 14 19 27 50
MSV-M25x1.5/21 83602422 Grey M25x1.5 M25/P21(S) 32 14 21 36 50
MSV-M32x1.5/21 83602423 Grey M32x1.5 M25/P21(S) 32 14 26 36 50
MSV-M32x1.5/29 83602424 Grey M32x1.5 M32/P29(S) 34 14 27 40 25
MSV-M40x1.5/29 83602425 Grey M40x1.5 M32/P29(S) 34 14 32 40 25
MSV-M40x1.5/36 83602426 Grey M40x1.5 M40/P36(S) 38 16 34 49 10
MSV-M50x1.5/36 83602427 Grey M50x1.5 M40/P36(S) 37.5 16 40 49 10
MSV-M50x1.5/48 83602428 Grey M50x1.5 M50/P48(S) 39 16 44 60 10
MSV-M63x1.5/48 83602429 Grey M63x1.5 M50/P48(S) 38.5 16 52 60 10

Pg plastic threading

MSV-Pg 07 83601050 Black Pg 07 M10/P07 19 9 8 16 50
MSV-Pg 09 83601052 Black Pg 09 M12/P09 19 10 9.6 18 50
MSV-Pg 11 83601054 Black Pg 11 M16/P11 23 10 13.8 21 50
MSV-Pg 13,5/11 83601055 Black Pg 13.5 M16/P11 23 13 12 21 50
MSV-Pg 13,5/16 83601056 Black Pg 13.5 M20/P16(S) 27 13 15.5 27 50
MSV-Pg 16/09 83601057 Black Pg 16 M12/P09 19 13 27 27 50
MSV-Pg 16 83601058 Black Pg 16 M20/P16(S) 27 13 17 27 50
MSV-Pg 21/16 83601059 Black Pg 21 M20/P16 26 14 36 36 50
MSV-Pg 21 83601060 Black Pg 21 M25/P21(S) 32 14 23 36 50
MSV-Pg 29 83601062 Black Pg 29 M32/P29(S) 35 14 28 40 25
MSV-Pg 36 83601064 Black Pg 36 M40/P36(S) 38 15 40 49 10
MSV-Pg 48 83601066 Black Pg 48 M50/P48(S) 39 17 47 60 10
MSV-Pg 07 83601010 Grey Pg 07 M10/P07 19 9 8 16 50
MSV-Pg 09 83601012 Grey Pg 09 M12/P09 19 10 9.6 18 50
MSV-Pg 11 83601014 Grey Pg 11 M16/P11 23 10 13.8 21 50
MSV-Pg 13,5/11 83601015 Grey Pg 13.5 M16/P11 23 13 12 21 50
MSV-Pg 13,5/16 83601016 Grey Pg 13.5 M20/P16(S) 27 13 15.5 27 50
MSV-Pg 16/09 83601017 Grey Pg 16 M12/P09 19 13 27 27 50
MSV-Pg 16 83601018 Grey Pg 16 M20/P16(S) 27 13 17 27 50
MSV-Pg 21/16 83601019 Grey Pg 21 M20/P16 26 14 36 36 50
MSV-Pg 21 83601020 Grey Pg 21 M25/P21(S) 32 14 23 36 50
MSV-Pg 29 83601022 Grey Pg 29 M32/P29(S) 35 14 28 40 25
MSV-Pg 36 83601024 Grey Pg 36 M40/P36(S) 38 15 40 49 10
MSV-Pg 48 83601026 Grey Pg 48 M50/P48(S) 39 17 47 60 10

NPT plastic threading

MSV NPT 3/8"/11 83602650 Black 3/8" M16/P11(S) 32 8 12 21 50
MSV-NPT 1/2"/16 83602652 Black 1/2" M20/P16(S) 27 14 15 27 50
MSV-NPT 3/4"/21 83602654 Black 3/4" M25/P21(S) 32 14 20.5 36 50
MSV-NPT 1"/29 83602656 Black 1" M32/P29(S) 35 16 26.5 40 25
MSV NPT 3/8"/11 83602610 Grey 3/8" M16/P11(S) 32 8 12 21 50
MSV-NPT 1/2"/16 83602612 Grey 1/2" M20/P16(S) 27 14 15 27 50
MSV-NPT 3/4"/21 83602614 Grey 3/4" M25/P21(S) 32 14 20.5 36 50
MSV-NPT 1"/29 83602616 Grey 1" M32/P29(S) 35 16 26.5 40 25

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf 10 Mbytes
