> MURRPLASTIK>Corrugated pipes and fittings>KAW-PG 16 83661056 MURRPLASTIK Conduits and fitting systems Type KAW plastic connection angle Pg threads Black
Previous Product Next Product

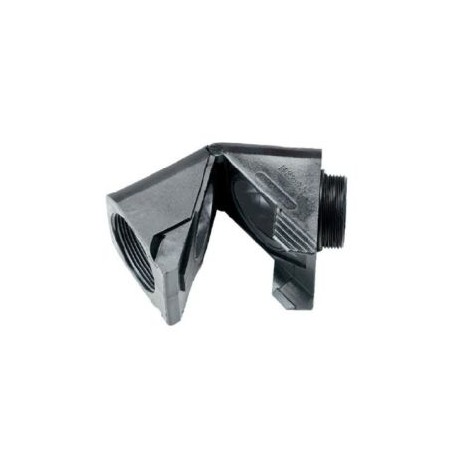

KAW-PG 16 83661056 MURRPLASTIK Conduits and fitting systems Type KAW plastic connection angle Pg threads Black View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

KAW-PG 16 83661056 MURRPLASTIK Conduits and fitting systems Type KAW plastic connection angle Pg threads Black

KAW-Pg 16

83661056

MURRPLASTIK

25

Conduits and fitting systems Type KAW (plastic connection angle) Pg threads Black

More details


Corrugated pipes and fittings

* Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


The KAW 90° plastic connector angle is a foldable angle connector, made of specially modified polyamide. It can be combined in any way with cable fittings or conduit fittings.

The connector angle features the following advantages:

Easy cable insertion

High degree of protection (IP 68)

Easy assembly

Folds open

Wide range of connection options

Includes seal on connecting thread

Halogen-free

-20°C – 80°C

i.a.w. UL94 V0

IP 68

Type Order No. Colour AG IG EH mm GL mm L mm LW mm SW 1 mm Pack qty.

Metric thread

KAW-M 16x1.5 83661650 Black M16x1,5 Pg 09 23 8 28.5 10 19 25
KAW-M 20x1.5 83661652 Black M20x1.5 Pg 13.5 30.5 9 35 13.5 24 25
KAW-M 25x1.5 83661654 Black M25x1.5 Pg 21 40 11 49 19.5 33 25
KAW-M 32x1.5 83661656 Black M32x1.5 Pg 29 51.5 11 60 27 42 10
KAW-M 16x1.5 83661610 Grey M16x1,5 Pg 09 23 8 28.5 10 19 25
KAW-M 20x1.5 83661612 Grey M20x1.5 Pg 13.5 30.5 9 35 13.5 24 25
KAW-M 25x1.5 83661614 Grey M25x1.5 Pg 21 40 11 49 19.5 33 25
KAW-M 32x1.5 83661616 Grey M32x1.5 Pg 29 51.5 11 60 27 42 10

Pg threads

KAW-Pg 09 83661050 Black Pg 09 Pg 09 23 8 28.5 10 19 25
KAW-Pg 11 83661052 Black Pg 11 Pg 11 27 8 31.5 12 22 25
KAW-Pg 13.5 83661054 Black Pg 13.5 Pg 13.5 30.5 9 35 13.5 24 25
KAW-Pg 16 83661056 Black Pg 16 Pg 16 32.5 10 37.5 16 27 25
KAW-Pg 21 83661058 Black Pg 21 Pg 21 40 11 49 20 33 25
KAW-Pg 29 83661060 Black Pg 29 Pg 29 51.5 11 60 27 42 10
KAW-Pg 09 83661012 Grey Pg 09 Pg 09 23 8 28.5 10 19 25
KAW-Pg 11 83661014 Grey Pg 11 Pg 11 27 8 31.5 12 22 25
KAW-Pg 13.5 83661016 Grey Pg 13.5 Pg 13.5 30.5 9 35 13.5 24 25
KAW-Pg 16 83661018 Grey Pg 16 Pg 16 32.5 10 37.5 16 27 25
KAW-Pg 21 83661020 Grey Pg 21 Pg 21 40 11 49 20 33 25
KAW-Pg 29 83661022 Grey Pg 29 Pg 29 51.5 11 60 27 42 10

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf 10 Mbytes
