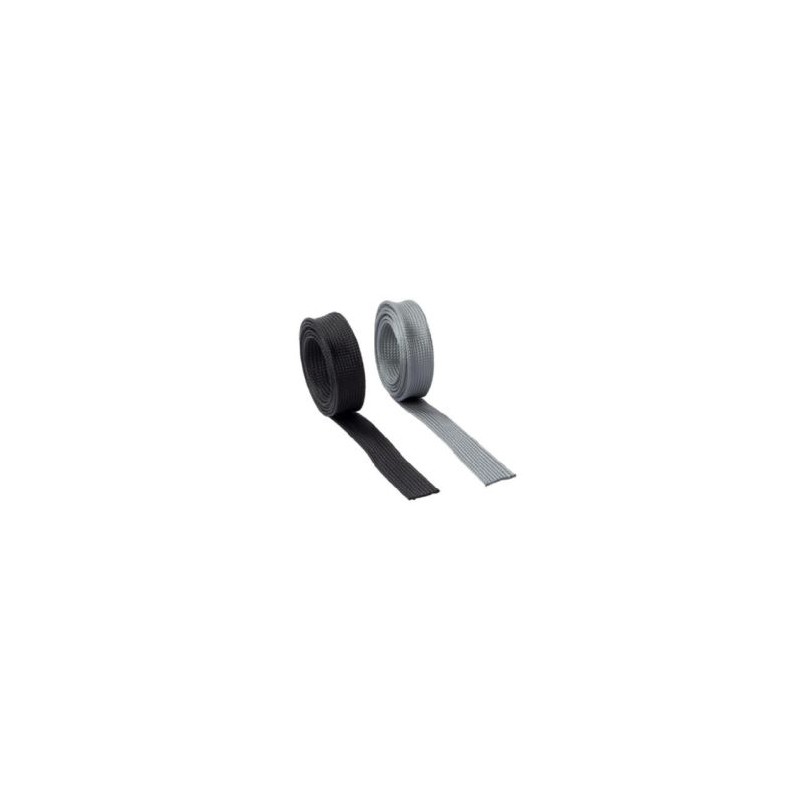

GF 40 83341028 MURRPLASTIK Conduits and fitting systems Type GF braided conduit Black View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

GF 40 83341028 MURRPLASTIK Conduits and fitting systems Type GF braided conduit Black

83341028

MURRPLASTIK

50

Conduits and fitting systems Type GF (braided conduit) Black

More details


Corrugated pipes and fittings

* Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


The GF braided conduits are made of specially modified polyamide 6.6. With this material and the special braiding, the conduit is extremely durable and elastic in both the radial and axial directions.

The GF braided conduit is used to bundle and protect a large number of cables and individual wires of all types. The elastic braiding means that configuration of the conduit can be very variable.

Additional advantages of the GF braided conduit include:

Very good mechanical and thermal resistance

Good chemical resistance

High flexibility

Very high abrasion resistance

Halogen-free

-50°C – 150°C, transient / short term 175°C

i.a.w. UL94 V2

Type Order No. Colour Nominal widths NW Size range mm Surface covering in % Weight kg/100m Pack m
GF 4 83341010 Black 4 3 / 8 93 0.7 200
GF 6 83341012 Black 6 4 / 10.5 86 0.7 200
GF 8 83341014 Black 8 7 / 14 87 1.0 200
GF 10 83341016 Black 10 6 / 15 77 1.3 200
GF 12 83341018 Black 12 10 / 16 74 1.6 200
GF 16 83341020 Black 16 11 / 24 80 1.7 100
GF 20 83341022 Black 20 18 / 30 75 2.5 100
GF 22 83341024 Black 22 18 / 32 84 2.6 100
GF 30 83341026 Black 30 20 / 37 78 2.5 100
GF 40 83341028 Black 40 36 / 50 77 4.0 50
GF 50 83341030 Black 50 45 / 52 79 5.0 50
GF 70 83341032 Black 70 45 / 78 84 5.4 50
GF 4 83341050 Grey 4 3 / 8 93 0.45 200
GF 6 83341052 Grey 6 4 / 10.5 86 0.57 200
GF 8 83341054 Grey 8 7 / 14 87 0.81 200
GF 10 83341056 Grey 10 6 / 15 77 0.76 200
GF 12 83341058 Grey 12 10 / 16 74 0.8 200
GF 16 83341060 Grey 16 11 / 24 80 1.31 100
GF 20 83341062 Grey 20 18 / 30 75 1.41 100
GF 22 83341064 Grey 22 18 / 32 84 1.9 100
GF 30 83341066 Grey 30 20 / 37 78 2.17 100
GF 40 83341068 Grey 40 36 / 50 77 2.88 50
GF 50 83341070 Grey 50 45 / 52 79 3.62 50
GF 70 83341072 Grey 70 45 / 78 84 5.95 50

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf 10 Mbytes
