> >>EH/S PG 07/09 83541028 MURRPLASTIK Conduits and fitting systems Type EH/S Pg plastic threading Grey
Previous Product Next Product

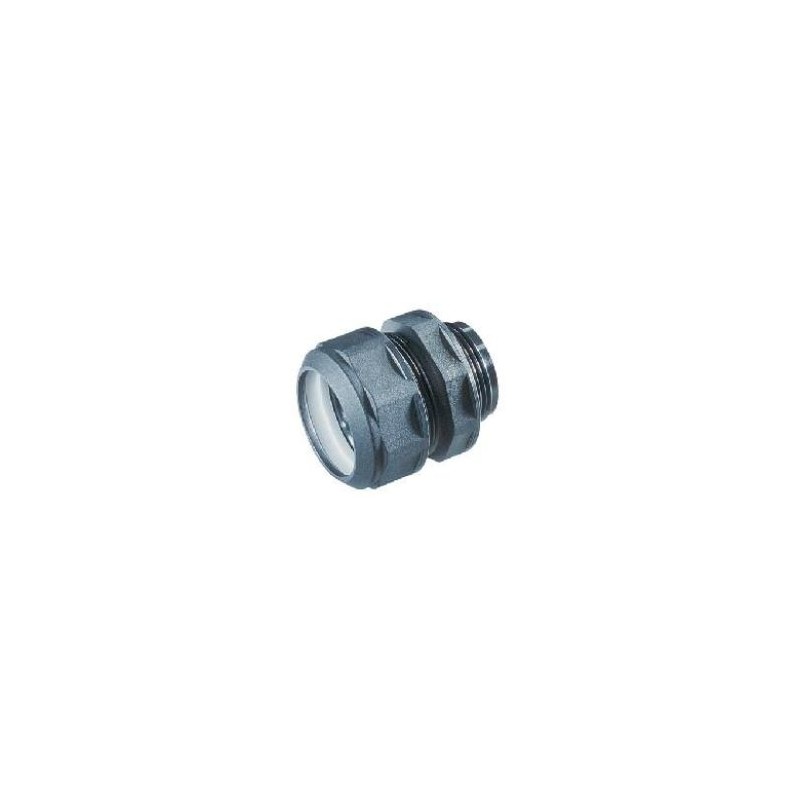

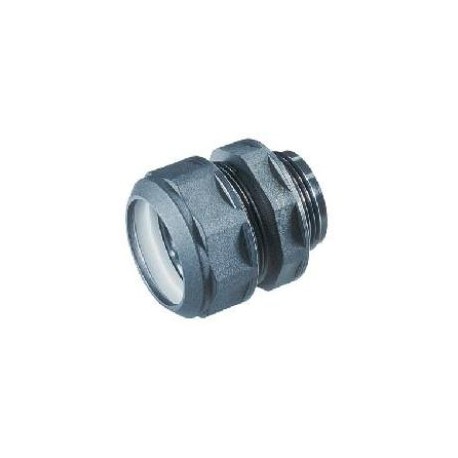

EH/S PG 07/09 83541028 MURRPLASTIK Conduits and fitting systems Type EH/S Pg plastic threading Grey View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

EH/S PG 07/09 83541028 MURRPLASTIK Conduits and fitting systems Type EH/S Pg plastic threading Grey

83541028

MURRPLASTIK

50

Conduits and fitting systems Type EH/S Pg plastic threading Grey

More details


Corrugated pipes and fittings

* Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

Total price: $84.65
Unit price: $1.69

Quantity Price
50+$1.69
100+$1.63
200+$1.40
250+$1.34
350+$1.30
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


The EH/S conduit fittings are made of specially modified polyamide and polyoxymethylene. The materials are halogen, phosphor and cadmium-free.

The EH/S conduit fittings feature the following advantages:

No parts can get lost, delivered completely assembled

Cost-effective solution

Integrated clamping ring ensures high tear-out strength

Fitting suitable for the EVK, EL and ELS cable protection conduit.

Halogen-free

-40°C – 110°C, transient / short term 140°C

i.a.w. UL94 V0

IP 65

EU railway approval

Type Order No. Colour Connecting thread Suitable for Murrflex EL Suitable for Murrflex ELS Suitable for Murrflex EVK EH mm GL mm SW 1 mm Pack qty.

Metric plastic thread

EH/S M12X1.5/9 83541252 Black M12x1.5 09 09 07/E 26 13 19 50
EH/S M12X1.5/11 83541256 Black M12x1.5 11 11 09/E 26 13 22 50
EH/S M16X1.5/9 83541254 Black M16x1,5 09 09 07/E 26 13 19 50
EH/S M16X1.5/11 83541258 Black M16x1,5 11 11 09/E 26 13 22 50
EH/S M20X1.5/13 83541259 Black M20x1.5 13 13 11 26 14 27 50
EH/S M20X1.5/16 83541260 Black M20x1.5 16 16 11 26 14 27 50
EH/S M25X1.5/21 83541262 Black M25x1.5 21 21 21/E 33 10 37 50
EH/S M32X1.5/29 83541264 Black M32x1.5 29 29 29/E 33 10 45 25
EH/S M40X1.5/36 83541266 Black M40x1.5 36 36 36/E 44 15 55 25
EH/S M50X1.5/48 83541268 Black M50x1.5 48 48 42 50 17 65 10
EH/S M12X1.5/9 83541212 Grey M12x1.5 09 09 07/E 26 13 19 50
EH/S M12X1.5/11 83541216 Grey M12x1.5 11 11 09/E 26 13 22 50
EH/S M16X1.5/9 83541214 Grey M16x1,5 09 09 07/E 26 13 19 50
EH/S M16X1.5/11 83541218 Grey M16x1,5 11 11 09/E 26 13 22 50
EH/S M20X1.5/13 83541219 Grey M20x1.5 13 13 11 26 14 27 50
EH/S M20X1.5/16 83541220 Grey M20x1.5 16 16 11 26 14 27 50
EH/S M25X1.5/21 83541222 Grey M25x1.5 21 21 21/E 33 10 37 50
EH/S M32X1.5/29 83541224 Grey M32x1.5 29 29 29/E 33 10 45 25
EH/S M40X1.5/36 83541226 Grey M40x1.5 36 36 36/E 44 15 55 25
EH/S M50X1.5/48 83541228 Grey M50x1.5 48 48 42 50 17 65 10

Pg plastic threading

EH/S PG 07 83541050 Black Pg 07 07 26 8 19 50
EH/S PG 07/09 83541068 Black Pg 07 09 09 26 8 19 50
EH/S PG 09 83541052 Black Pg 09 09 09 07/E 26 8 19 50
EH/S PG 09/11 83541070 Black Pg 09 11 11 09/E 26 8 22 50
EH/S PG 09/13 83541072 Black Pg 09 13 13 11/E 26 8 27 50
EH/S PG 09/16 83541074 Black Pg 09 16 16 13/E 26 8 27 50
EH/S PG 11/09 83541076 Black Pg 11 09 09 07/E 26 8 19 50
EH/S PG 11 83541054 Black Pg 11 11 11 09/E 26 8 22 50
EH/S PG 11/13 83541078 Black Pg 11 13 13 11/E 26 8 27 50
EH/S PG 11/16 83541080 Black Pg 11 16 16 13/E 26 8 27 50
EH/S PG 13.5 83541056 Black Pg 13.5 13 13 11/E 26 8 27 50
EH/S PG 13/16 83541082 Black Pg 13 16 16 13/E 26 8 27 50
EH/S PG 16/13 83541084 Black Pg 16 13 13 11/E 26 8 27 50
EH/S PG 16 83541058 Black Pg 16 16 16 13/E 26 8 27 50
EH/S PG 21 83541060 Black Pg 21 21 21 16/E 34 10 38 50
EH/S PG 29 83541062 Black Pg 29 29 29 21/E 34 10 46 25
EH/S PG 36 83541064 Black Pg 36 36 36 29/E 44 15 55 25
EH/S PG 48 83541066 Black Pg 48 48 48 42 50 15 65 10
EH/S PG 07 83541010 Grey Pg 07 07 26 8 19 50
EH/S PG 07/09 83541028 Grey Pg 07 09 09 26 8 19 50
EH/S PG 09 83541012 Grey Pg 09 09 09 07/E 26 8 19 50
EH/S PG 09/11 83541030 Grey Pg 09 11 11 09/E 26 8 22 50
EH/S PG 09/13 83541032 Grey Pg 09 13 13 11/E 26 8 27 50
EH/S PG 09/16 83541034 Grey Pg 09 16 16 13/E 26 8 27 50
EH/S PG 11/09 83541040 Grey Pg 11 09 09 07/E 26 8 19 50
EH/S PG 11 83541014 Grey Pg 11 11 11 09/E 26 8 22 50
EH/S PG 11/13 83541036 Grey Pg 11 13 13 11/E 26 8 27 50
EH/S PG 11/16 83541038 Grey Pg 11 16 16 13/E 26 8 27 50
EH/S PG 13.5 83541016 Grey Pg 13.5 13 13 11/E 26 8 27 50
EH/S PG 13/16 83541042 Grey Pg 13 16 16 13/E 26 8 27 50
EH/S PG 16/13 83541044 Grey Pg 16 13 13 11/E 26 8 27 50
EH/S PG 16 83541018 Grey Pg 16 16 16 13/E 26 8 27 50
EH/S PG 21 83541020 Grey Pg 21 21 21 16/E 34 10 38 50
EH/S PG 29 83541022 Grey Pg 29 29 29 21/E 34 10 46 25
EH/S PG 36 83541024 Grey Pg 36 36 36 29/E 44 15 55 25
EH/S PG 48 83541026 Grey Pg 48 48 48 42 50 15 65 10

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf 10 Mbytes
