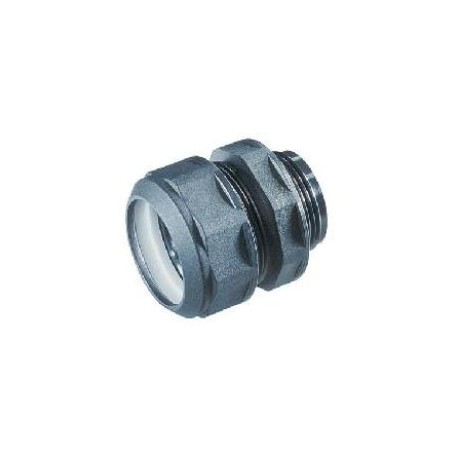

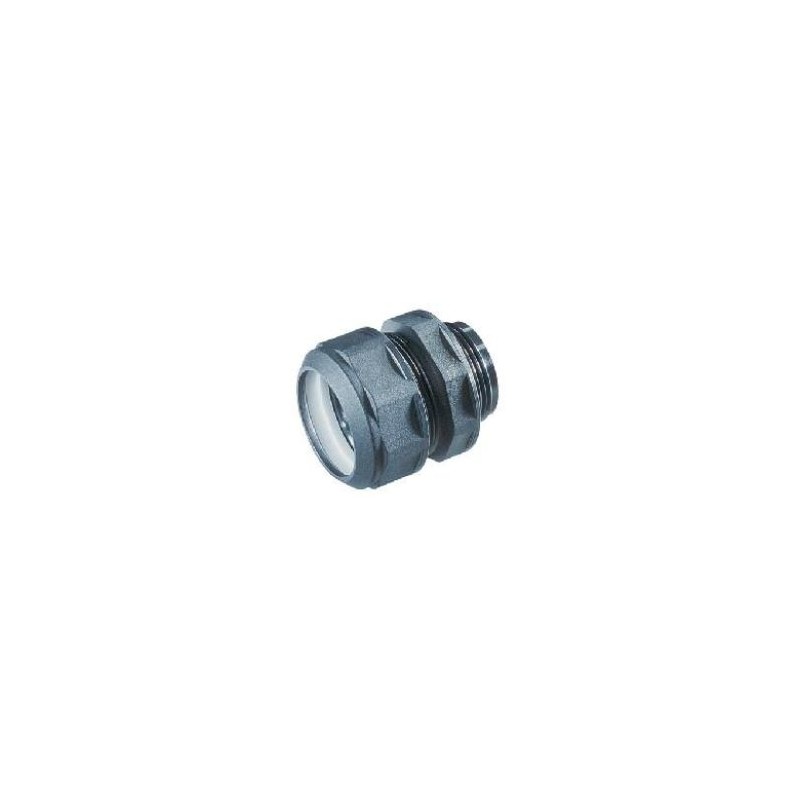

EH-PG 07/09 83501068 MURRPLASTIK Conduits and fitting systems Type EH Pg threads Black View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

EH-PG 07/09 83501068 MURRPLASTIK Conduits and fitting systems Type EH Pg threads Black

EH-Pg 07/09

83501068

MURRPLASTIK

50

Conduits and fitting systems Type EH Pg threads Black

More details


Corrugated pipes and fittings

* Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


The EH conduit fittings are made of specially modified polyamide and polyoxymethylene. The materials are halogen, phosphor and cadmium-free.

The EH conduit fittings feature the following advantages:

No parts can get lost, delivered completely assembled

Tightness of IP 65 for static and dynamic application

Integrated clamping ring ensures high tear-out strength

Specification:

UL listed E 148958

EN 45545-2 3x HL3

Halogen-free

-40°C – 110°C, transient / short term 140°C

i.a.w. UL94 V0

IP 65

EU railway approval

CURUS approval

Type Order No. Colour Connecting thread Suitable for Murrflex EH mm GL mm LW mm SW 1 mm Pack qty.

Metric thread

EH-M12x1.5/9 83501452 Black M12x1.5 M12/P09 26 13 8 19 50
EH-M12x1.5/11 83501456 Black M12x1.5 M16/P11 26 13 8 22 50
EH-M16x1.5/9 83501454 Black M16x1,5 M12/P09 26 13 11 19 50
EH-M16x1.5/11 83501458 Black M16x1,5 M16/P11 26 13 11 22 50
EH-M20x1.5/13.5 83501459 Black M20x1.5 DN 13 26 14 15 27 50
EH-M20x1.5/16 83501460 Black M20x1.5 M20/P16(S) 26 14 15 27 50
EH-M25x1.5/21 83501462 Black M25x1.5 M25/P21(S) 33 10 21 37 50
EH-M32x1.5/29 83501464 Black M32x1.5 M32/P29(S) 33 10 27 45 25
EH-M40x1.5/36 83501466 Black M40x1.5 M40/P36(S) 44 15 35 55 25
EH-M50x1.5/48 83501468 Black M50x1.5 M50/P48(S) 50 17 44 65 10
EH-M63x1.5/48 83501470 Black M63x1.5 M50/P48(S) 50 15 50 65 10
EH-M12x1.5/9 83501412 Grey M12x1.5 M12/P09 26 13 8 19 50
EH-M12x1.5/11 83501416 Grey M12x1.5 M16/P11 26 13 8 22 50
EH-M16x1.5/9 83501414 Grey M16x1,5 M12/P09 26 13 11 19 50
EH-M16x1.5/11 83501418 Grey M16x1,5 M16/P11 26 13 11 22 50
EH-M20x1.5/13.5 83501419 Grey M20x1.5 DN 13 26 14 15 27 50
EH-M20x1.5/16 83501420 Grey M20x1.5 M20/P16(S) 26 14 15 27 50
EH-M25x1.5/21 83501422 Grey M25x1.5 M25/P21(S) 33 10 21 37 50
EH-M32x1.5/29 83501424 Grey M32x1.5 M32/P29(S) 33 10 27 45 25
EH-M40x1.5/36 83501426 Grey M40x1.5 M40/P36(S) 44 15 35 55 25
EH-M50x1.5/48 83501428 Grey M50x1.5 M50/P48(S) 50 17 44 65 10
EH-M63x1.5/48 83501430 Grey M63x1.5 M50/P48(S) 50 15 50 65 10

Pg threads

EH-Pg 07 83501050 Black Pg 07 M10/P07 26 8 8.5 19 50
EH-Pg 07/09 83501068 Black Pg 07 M12/P09 26 8 8.5 19 50
EH-Pg 09 83501052 Black Pg 09 M12/P09 26 8 11 19 50
EH-Pg 09/11 83501070 Black Pg 09 M16/P11 26 8 10.5 22 50
EH-Pg 09/13.5 83501072 Black Pg 09 DN 13 26 8 10.5 27 50
EH-Pg 09/16 83501074 Black Pg 09 M20/P16 26 8 10.5 27 50
EH-Pg 11/09 83501076 Black Pg 11 M12/P09 26 8 14 19 50
EH-Pg 11 83501054 Black Pg 11 M16/P11 26 8 14 22 50
EH-Pg 11/13.5 83501078 Black Pg 11 DN 13 26 8 14 27 50
EH-Pg 11/16 83501080 Black Pg 11 M20/P16 26 8 14 27 50
EH-Pg 13.5 83501055 Black Pg 13.5 DN 13 26 8 14 27 50
EH-Pg 13.5/16 83501056 Black Pg 13.5 M20/P16 26 8 14 27 50
EH-Pg 16/13.5 83501082 Black Pg 16 DN 13 26 8 17 27 50
EH-Pg 16 83501058 Black Pg 16 M20/P16 26 8 17 27 50
EH-Pg 21 83501060 Black Pg 21 M25/P21(S) 34 10 23 38 50
EH-Pg 21 long 83501061 Black Pg 21 M25/P21(S) 34 15 23 38 50
EH-Pg 29 83501062 Black Pg 29 M32/P29(S) 34 10 31 46 25
EH-Pg 36 83501064 Black Pg 36 M40/P36(S) 44 15 40 55 25
EH-Pg 48 83501066 Black Pg 48 M50/P48(S) 50 15 51 65 10
EH-Pg 07 83501010 Grey Pg 07 M10/P07 26 8 8.5 19 50
EH-Pg 07/09 83501028 Grey Pg 07 M12/P09 26 8 8.5 19 50
EH-Pg 09 83501012 Grey Pg 09 M12/P09 26 8 11 19 50
EH-Pg 09/11 83501030 Grey Pg 09 M16/P11 26 8 10.5 22 50
EH-Pg 09/13.5 83501032 Grey Pg 09 DN 13 26 8 10.5 27 50
EH-Pg 09/16 83501034 Grey Pg 09 M20/P16 26 8 10.5 27 50
EH-Pg 11/09 83501036 Grey Pg 11 M12/P09 26 8 14 19 50
EH-Pg 11 83501014 Grey Pg 11 M16/P11 26 8 14 22 50
EH-Pg 11/13.5 83501038 Grey Pg 11 DN 13 26 8 14 27 50
EH-Pg 11/16 83501040 Grey Pg 11 M20/P16 26 8 14 27 50
EH-Pg 13.5 83501015 Grey Pg 13.5 DN 13 26 8 14 27 50
EH-Pg 13.5/16 83501016 Grey Pg 13.5 M20/P16 26 8 14 27 50
EH-Pg 16/13.5 83501042 Grey Pg 16 DN 13 26 8 17 27 50
EH-Pg 16 83501018 Grey Pg 16 M20/P16 26 8 17 27 50
EH-Pg 21 83501020 Grey Pg 21 M25/P21(S) 34 10 23 38 50
EH-Pg 21 long 83501021 Grey Pg 21 M25/P21(S) 34 15 23 38 50
EH-Pg 29 83501022 Grey Pg 29 M32/P29(S) 34 10 31 46 25
EH-Pg 36 83501024 Grey Pg 36 M40/P36(S) 44 15 40 55 25
EH-Pg 48 83501026 Grey Pg 48 M50/P48(S) 50 15 51 65 10

NPT thread

EH-NPT 3/8"/11 83501251 Black 3/8" M16/P11 26 14 12 22 50
EH-NPT 1/2"/16 83501250 Black 1/2" M20/P16(S) 26 13 14 27 50
EH-NPT 3/4"/21 83501252 Black 3/4" M25/P21(S) 31 14 19 37 50
EH-NPT 1"/29 83501254 Black 1" M32/P29(S) 32 19 26 46 25
EH-NPT 1 1/4"/36 83501256 Black 1 1/4" M40/P36(S) 44 18 35 55 25
EH-NPT 2"/48 83501258 Black 2" M50/P48(S) 50 18 51 65 10
EH-NPT 3/8"/11 83501211 Grey 3/8" M16/P11 26 14 12 22 50
EH-NPT 1/2"/16 83501210 Grey 1/2" M20/P16(S) 26 13 14 27 50
EH-NPT 3/4"/21 83501212 Grey 3/4" M25/P21(S) 31 14 19 37 50
EH-NPT 1"/29 83501214 Grey 1" M32/P29(S) 32 19 26 46 25
EH-NPT 1 1/4"/36 83501216 Grey 1 1/4" M40/P36(S) 44 18 35 55 25
EH-NPT 2"/48 83501218 Grey 2" M50/P48(S) 50 18 51 65 10

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf 10 Mbytes
