> MURRPLASTIK>Corrugated pipes and fittings>CKW PG 29/45 83581060 MURRPLASTIK Conduits and fitting systems Type CKW conduit and cable fitting Pg threads B
Previous Product Next Product

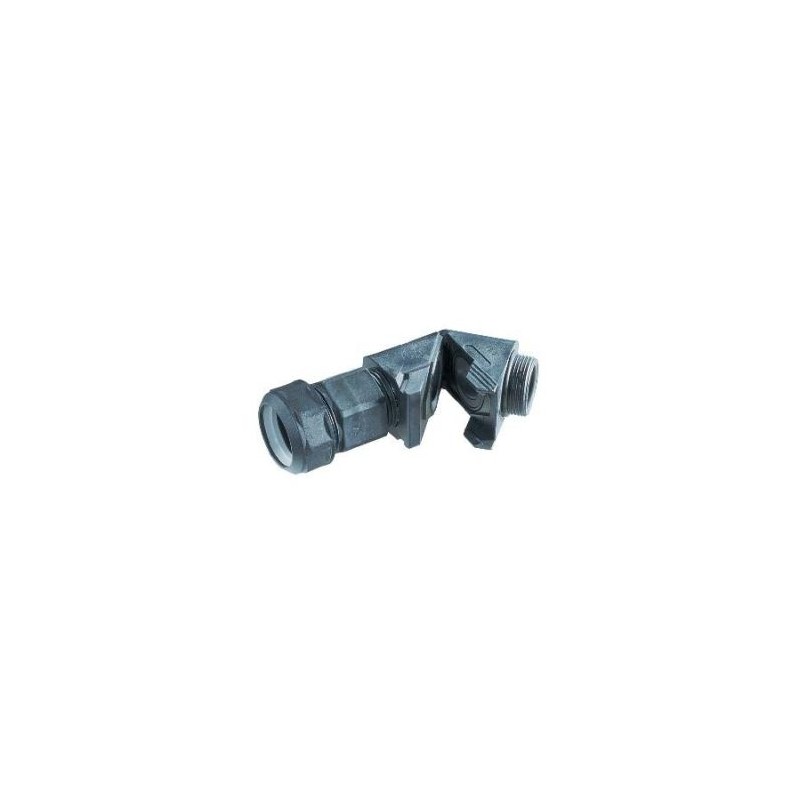

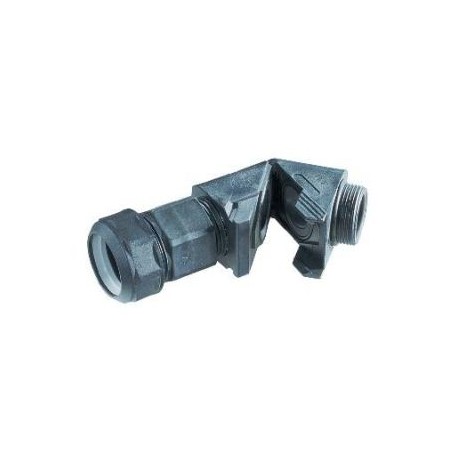

CKW PG 29/45 83581060 MURRPLASTIK Conduits and fitting systems Type CKW conduit and cable fitting Pg threads B View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

CKW PG 29/45 83581060 MURRPLASTIK Conduits and fitting systems Type CKW conduit and cable fitting Pg threads B

CKW PG 29/45

83581060

MURRPLASTIK

25

Conduits and fitting systems Type CKW (conduit and cable fitting) Pg threads Black

More details


Corrugated pipes and fittings

* Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


The angled and folding CKW 90° combined conduit and cable fittings with plastic threading are made from specially modified polyamide and Buna N. The materials are halogen, phosphor and cadmium-free

The CKW 90° conduit fittings feature the following advantages:

No parts can get lost, delivered completely assembled

Optimum strain relief for the cable due to iris-shaped lamellae

Tightness of IP 65 for static and dynamic application

Integrated clamping ring ensures high tear-out strength

Folding angle piece makes cable assembly easy

Specification:

EN 45545-2 3x HL3

Halogen-free

-40°C – 110°C, transient / short term 140°C

i.a.w. UL94 V0

IP 65

EU railway approval

CURUS approval

Type Order No. Colour Connecting thread Suitable for Murrflex EH mm GL mm Clamping range (LW) mm SW 2 / 3 mm Pack qty.

Metric thread

CKW-M16x1.5/9 83584250 Black M16x1,5 M12/P09 23 8 4 – 8 22 / 22 50
CKW-M20x1.5/16 83584256 Black M20x1.5 M20/P16 32 9 6 – 12 27 / 27 50
CKW-M25x1.5/21 83584258 Black M25x1.5 M25/P21 40 12 13 – 18 33 / 33 10
CKW-M32x1.5/29 83584260 Black M32x1.5 M32/P29 50 12 18 – 25 42 / 42 25

Pg threads

CKW-Pg 09 83581050 Black Pg 09 M12/P09 23 8 4 – 8 19 / 19 50
CKW-Pg 11 83581052 Black Pg 11 M16/P11 28 8 5 – 10 22 / 22 50
CKW-Pg 16 83581054 Black Pg 16 M20/P16 37 11 10 – 14 27 / 27 50
CKW-Pg 21 83581056 Black Pg 21 M25/P21 39 11 13 – 18 33 / 33 25
CKW-Pg 29 83581058 Black Pg 29 M32/P29 50 11 18 – 25 42 / 42 25

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf 10 Mbytes
