> MURRPLASTIK>Corrugated pipes and fittings>AT M20/P09 83651010 MURRPLASTIK Conduits and fitting systems Type AT Grey
Previous Product Next Product

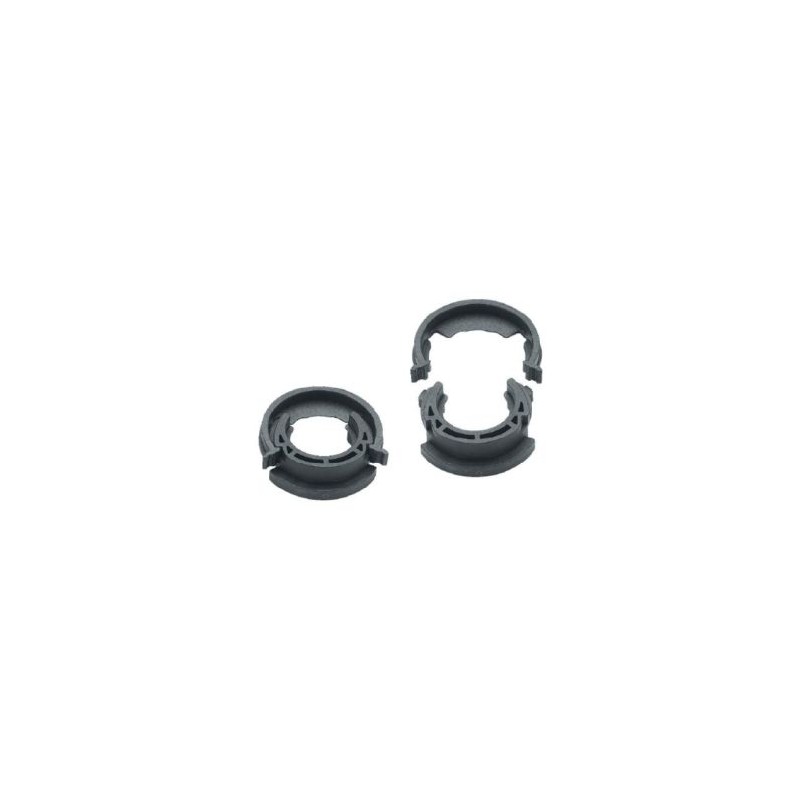

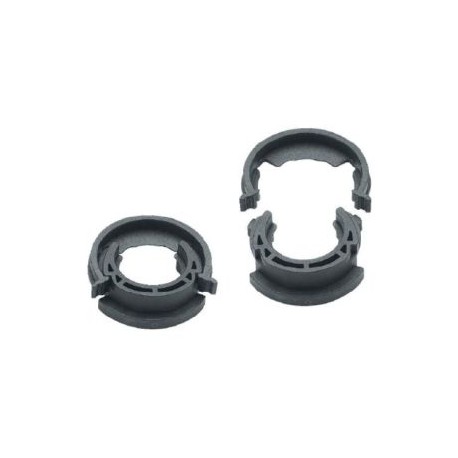

AT M20/P09 83651010 MURRPLASTIK Conduits and fitting systems Type AT Grey View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

AT M20/P09 83651010 MURRPLASTIK Conduits and fitting systems Type AT Grey

83651010

MURRPLASTIK

50

Conduits and fitting systems Type AT Grey

More details


Corrugated pipes and fittings

* Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

Total price: $149.86
Unit price: $3.00

Quantity Price
50+$3.00
100+$2.55
150+$2.36
200+$2.31
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


The AT connector is a holder for split and closed conduits in the EW and EWT series.

It is made of specially modified polyamide 6. The material is self-extinguishing, and halogen, phosphor and cadmium-free.

The AT connectors feature the following advantages:

Click system for quick, easy and tool-free assembly and disassembly

Compact design

Conduits can still be rotated

Suitable for split and closed conduits

Halogen-free

-40°C – 110°C, transient / short term 140°C

i.a.w. UL94 V0

IP 42

EU railway approval

Type Order No. Colour Suitable for Murrflex A mm B mm C mm D mm E mm F mm Pack qty.
AT M20/P09 83651050 Black M12/P09 20.2 35 16 9.5 5 20.5 50
AT M25/P11 83651052 Black M16/P11 25.2 40.5 16 9.5 5 25.5 50
AT M32/P16 83651054 Black M20/P16 32.2 48 17.2 10.3 5.4 32.5 50
AT M40/P21 83651056 Black M25/P21 40.2 58 17.9 10 6.4 40.5 50
AT M50/P29 83651058 Black M32/P29 50.2 68 17.9 10 6.4 50.5 25
AT M50/P36 83651060 Black M40/P36 50.2 68 21.5 12 8 50.5 10
AT M63/P48 83651062 Black M50/P48 63.2 82 24.8 15.3 8 63.5 10
AT M20/P09 83651010 Grey M12/P09 20.2 35 16 9.5 5 20.5 50
AT M25/P11 83651012 Grey M16/P11 25.2 40.5 16 9.5 5 25.5 50
AT M32/P16 83651014 Grey M20/P16 32.2 48 17.2 10.3 5.4 32.5 50
AT M40/P21 83651016 Grey M25/P21 40.2 58 17.9 10 6.4 40.5 50
AT M50/P29 83651018 Grey M32/P29 50.2 68 17.9 10 6.4 50.5 25
AT M50/P36 83651020 Grey M40/P36 50.2 68 21.5 12 8 50.5 10
AT M63/P48 83651022 Grey M50/P48 63.2 82 24.8 15.3 8 63.5 10

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf 10 Mbytes
