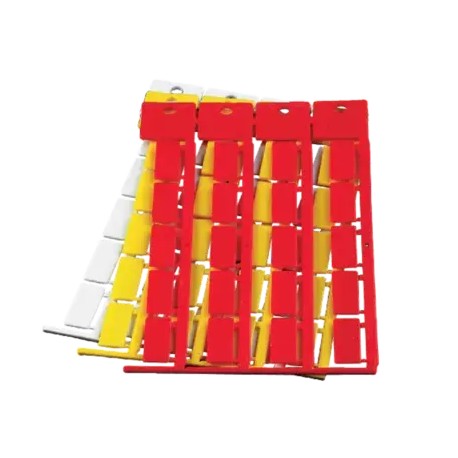

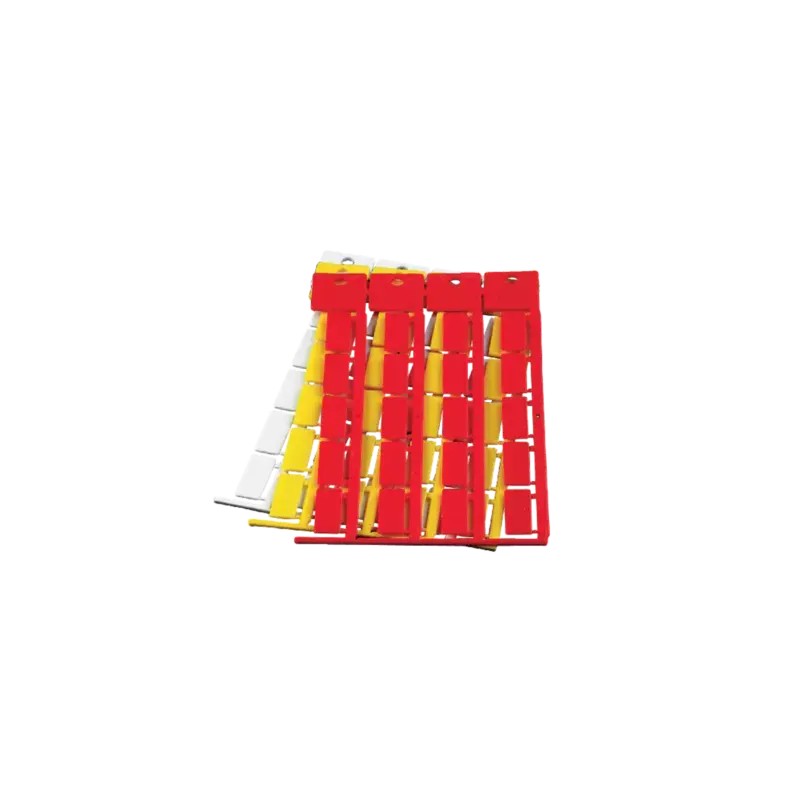

86421234 MURRPLASTIK KSO 20x9L Nameplate, rt
86421234
MURRPLASTIK
1408
KSO 20x9L Nameplate, rt
KSO 20x9L Placa de identificación, rt
KSO label plate
Marking systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲High-quality, halogen-free, universal label for single-line and multi-line markings.
Available in various lengths and colours.
The large printable area at the top provides room to reference individual projects.
The KSO label is mounted on cables, lines or conduits with KT series sleeves or the KM, KMH, KMH/Q carriers.
Halogen-free
-40°C – 130°C
Polycarbonate (PC)
V0
| Type | Order No. | Colour | RAL equiv. | Label size mm (B x A) | Printable area mm | No. characters/ lines | No. per Frame | Base plate | Software Type | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Label length 11 mm | ||||||||||||
| KSO 11x9 | 86421024 | White | 9016 | 9 x 11 | 9 x 11 | 6.0 / 2.0 | 44 | GP4 | 60 | 1400 | ||
| KSO 11x9 | 86421013 | Yellow | 1018 | 9 x 11 | 9 x 11 | 6.0 / 2.0 | 44 | GP4 | 60G | 1400 | ||
| KSO 11x9 | 86421015 | Red | 2012 | 9 x 11 | 9 x 11 | 6.0 / 2.0 | 44 | GP4 | 60R | 1400 | ||
Label length 15 mm | ||||||||||||
| KSO 15x9 | 86421026 | White | 9016 | 9 x 15 | 9 x 15 | 8.0 / 2.0 | 44 | GP4 | 62 | 1400 | ||
| KSO 15x9 | 86421027 | Yellow | 1018 | 9 x 15 | 9 x 15 | 8.0 / 2.0 | 44 | GP4 | 62G | 1400 | ||
| KSO 15x9 | 86421019 | Red | 2012 | 9 x 15 | 9 x 15 | 8.0 / 2.0 | 44 | GP4 | 62R | 1400 | ||
Label length 20 mm, long mat design | ||||||||||||
| KSO 20x9L | 86421230 | White | 9016 | 9 x 20 | 9 x 20 | 11.0 / 2.0 | 20 | GP4 | 551 | 640 | ||
| KSO 20x9L | 86421232 | Yellow | 1018 | 9 x 20 | 9 x 20 | 11.0 / 2.0 | 20 | GP4 | 552 | 640 | ||
| KSO 20x9L | 86421234 | Red | 2012 | 9 x 20 | 9 x 20 | 11.0 / 2.0 | 20 | GP4 | 553 | 640 | ||
Label length 35 mm | ||||||||||||
| KSO 35x9 | 86421064 | White | 9016 | 9 x 35 | 9 x 35 | 19.0 / 2.0 | 12 | GP4 | 69W | 360 | ||
| KSO 35x9 2x2,5mm | 86421068 | White | 9016 | 9 x 35 | 9 x 35 | 19.0 / 2.0 | 12 | GP4 | 303 | 360 | ||
| KSO 35x9 | 86421065 | Yellow | 1018 | 9 x 35 | 9 x 35 | 19.0 / 2.0 | 12 | GP4 | 69G | 360 | ||
| KSO 35x9 | 86421066 | Red | 2012 | 9 x 35 | 9 x 35 | 19.0 / 2.0 | 12 | GP4 | 69R | 360 | ||
Label length 70 mm | ||||||||||||
| KSO 70x9 | 86421082 | White | 9016 | 9 x 70 | 9 x 70 | 38.0 / 2.0 | 11 | GP5 | 280 | 330 | ||
| KSO 70x9 | 86421083 | Yellow | 1018 | 9 x 70 | 9 x 70 | 38.0 / 2.0 | 11 | GP5 | 282 | 330 | ||
| KSO 70x9 | 86421084 | Red | 2012 | 9 x 70 | 9 x 70 | 38.0 / 2.0 | 11 | GP5 | 281 | 330 | ||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS LABELLING SYSTEMS EN.pdf | 8 Mbytes |
|
| 86421234 86421234 EN_86421068.pdf | 981 Kbytes |
|
