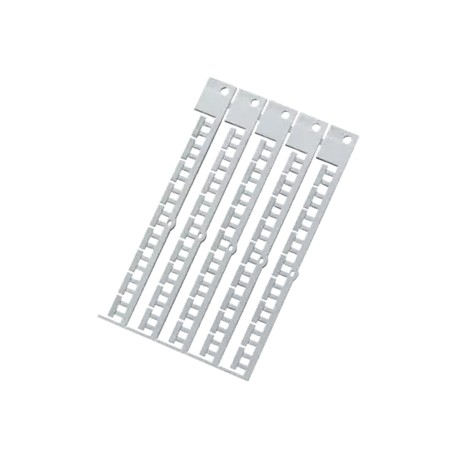

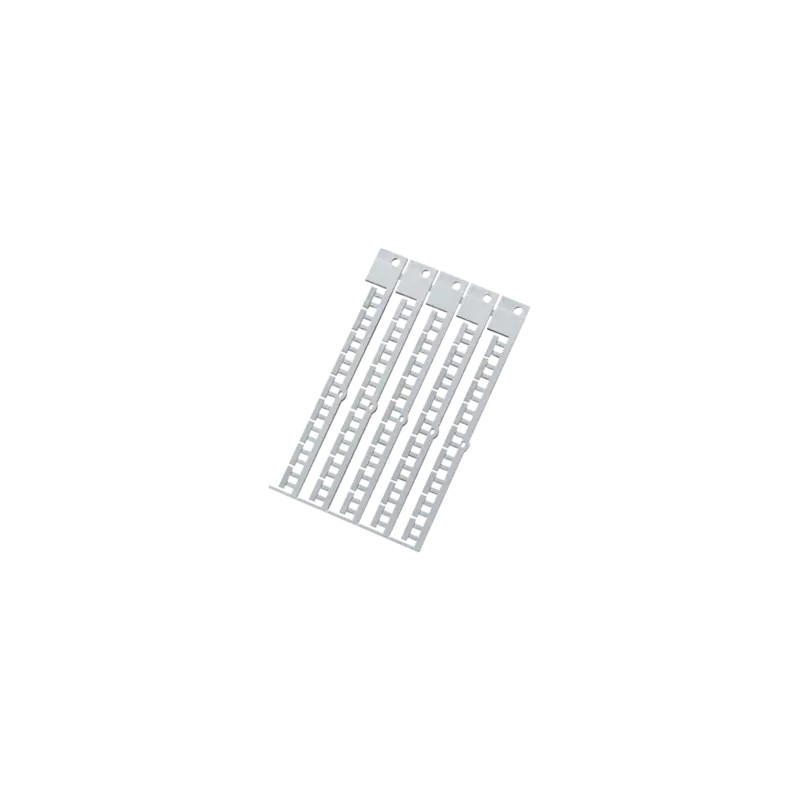

86402810 MURRPLASTIK Labelling Type B+R Device marking White
86402810
MURRPLASTIK
675
Labelling Type B+R Device marking White
B+R 12x6,7 GM Placa de identificación, w
Type B+R
Marking systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲B&R - for B&R X20 switchgear.
High-quality, halogen-free label plates to snap into devices.
The large printable area at the top allows room for individual project and component reference, dispensing with the need to organise additional systems.
Halogen-free
-40°C – 130°C
Polycarbonate (PC)
V0
| Type | Order No. | Colour | RAL equiv. | Label size * mm | Printable area * mm | No. characters/ lines | No. per Frame | Base plate | Software Type | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Terminal block marking | ||||||||||||
| B+R 12x3.3 | 86402800 | White | 9016 | 3.3 x 12 | 3.3 x 12 | 6.0 / 1 | 45 | GP5 | 201 | 675 | ||
| B+R 12x3.3 | 86402802 | Red | 2012 | 3.3 x 12 | 3.3 x 12 | 6.0 / 1 | 45 | GP5 | 204 | 675 | ||
| B+R 12x3.3 | 86402804 | Blue | 5012 | 3.3 x 12 | 3.3 x 12 | 6.0 / 1 | 45 | GP5 | 203 | 675 | ||
Device marking | ||||||||||||
| B+R 12x6.7 | 86402810 | White | 9016 | 6.7 x 12 | 6.7 x 12 | 6.0 / 1.0 | 45 | GP5 | 230 | 675 | ||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS LABELLING SYSTEMS EN.pdf | 8 Mbytes |
|
| 86402810 86402810 EN_86402810.pdf | 1015 Kbytes |
|
