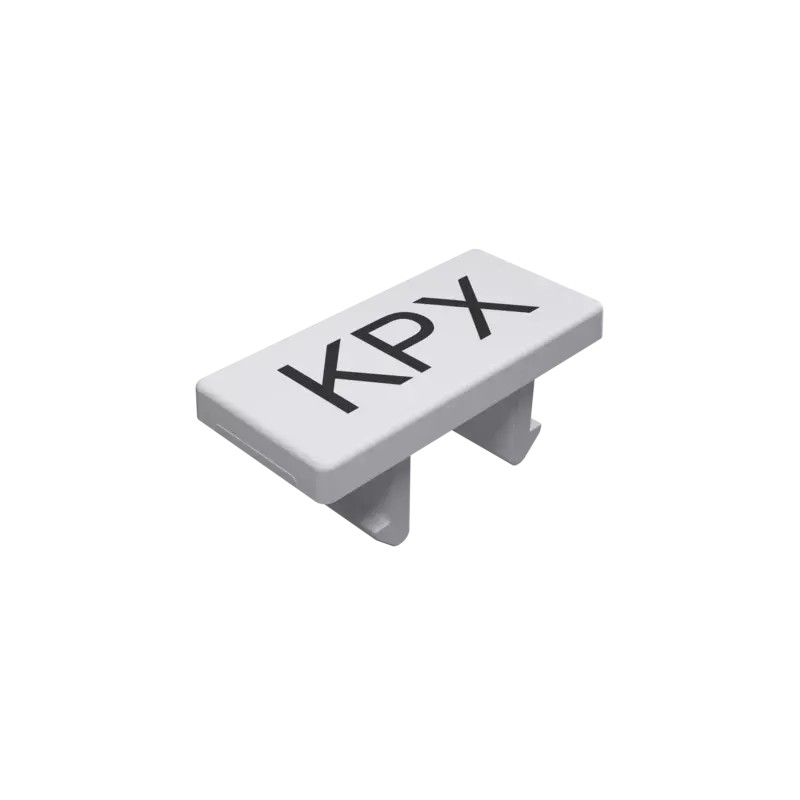

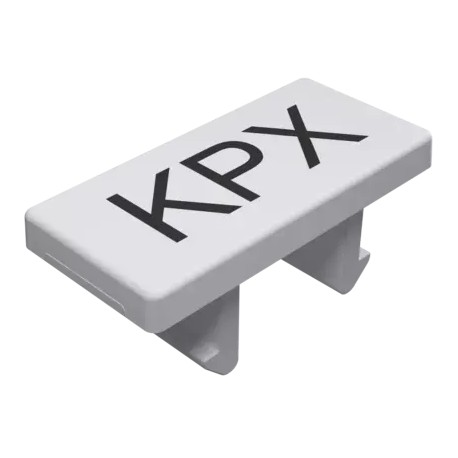

86401255 MURRPLASTIK KPX 7/10 Terminal Identification, ws
86401255
MURRPLASTIK
676
KPX 7/10 Terminal Identification, ws
KPX 7/10 Identificación de bornes, ws
KPX terminal block label
Marking systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲KPX - for terminal manufacturersPhoenix, ABB Entrelec, Murrelektronik, Siemens and Wago.
High-quality, halogen-free snap-in label plates. Labels available for mounting individually or in strips.
The large printable area at the top allows room for individual project and terminal block reference, dispensing with the need for additional organisational systems.
Label plates designated as "5 - 6 mm-pitch strips" can be adapted to terminal block widths of 5 mm or 6 mm by means of an extension spring joint.
Label plates designated as "Universal strip" can be used on various different terminal block widths.
The 6/180 labelling strips can be printed with a laser printer set up for the required terminal block width.
Halogen-free
-40°C – 130°C
Polycarbonate (PC)
V0
| Type | Order No. | Colour | RAL equiv. | Label size * mm | Printable area * mm | No. characters/ lines | No. Lines | No. per Frame | Base plate | Software Type | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Single labels | |||||||||||||
| KPX 4/10 | 86401224 | White | 9016 | 4 x 10 | 4 x 10 | 5.0 / 1.0 | 4 | 64 | GP4 | 97 | 1024 | ||
| KPU 5/10 | 86401231 | White | 9016 | 5 x 10 | 5 x 10 | 5.0 / 1.0 | 4 | 72 | GP4 | 42E | 1008 | ||
| KPX 6/10 | 86401214 | White | 9016 | 6 x 10 | 6 x 10 | 5.0 / 1.0 | 4 | 64 | GP4 | 40 | 1000 | ||
| KPX 6/15 | 86401218 | White | 9016 | 6 x 15 | 6 x 15 | 8.0 / 1.0 | 4 | 64 | GP4 | 41 | 1000 | ||
| KPX 7/10 | 86401255 | White | 9016 | 7 x 10 | 7 x 10 | 5.0 / 2.0 | 4 | 52 | GP4 | 539 | 676 | ||
3.5 mm pitch strips in a row | |||||||||||||
| KPX 3.5/10-3.5 | 86401225 | White | 9016 | 3.5 x 10 | 3.5 x 10 | 5.0 / 1.0 | 4 | 120 | GP4 | 486 | 1800 | ||
4 mm pitch strips in a row | |||||||||||||
| KPX 4/10-4 | 86401226 | White | 9016 | 4 x 10 | 4 x 10 | 5.0 / 1.0 | 4 | 100 | GP4 | 98 | 1400 | ||
5 mm pitch strips in a row | |||||||||||||
| KPX 5/10-5 | 86401210 | White | 9016 | 5 x 10 | 5 x 10 | 5.0 / 1.0 | 4 | 88 | GP4 | 42 | 1400 | ||
| KPX 5/15-5 | 86401212 | White | 9016 | 5 x 15 | 5 x 15 | 8.0 / 1.0 | 4 | 88 | GP4 | 43 | 1400 | ||
| KPX 5/10-5 | 86401211 | Yellow | 1018 | 5 x 10 | 5 x 10 | 5.0 / 1.0 | 4 | 88 | GP4 | 42G | 1400 | ||
5.2 mm pitch strips in a row | |||||||||||||
| KPX 5/10-5.2 | 86401208 | White | 9016 | 5 x 10 | 5 x 10 | 5.0 / 1.0 | 4 | 84 | GP4 | 279 | 1008 | ||
| KPX 5/15-5.2 | 86401213 | White | 9016 | 5 x 15 | 5 x 15 | 8.0 / 1.0 | 4 | 84 | GP4 | 311 | 1008 | ||
| KPX 5/10-5.2 | 86401209 | Yellow | 1018 | 5 x 10 | 5 x 10 | 5.0 / 1.0 | 4 | 84 | GP4 | 289 | 1008 | ||
5 – 6 mm pitch strips | |||||||||||||
| KPX 5/10-5...6 | 86401242 | White | 9016 | 5 x 10 | 5 x 10 | 5.0 / 1.0 | 4 | 88 | GP4 | 42U | 1400 | ||
6 mm pitch strips in a row | |||||||||||||
| KPX 6/10-6 | 86401216 | White | 9016 | 6 x 10 | 6 x 10 | 5.0 / 1.0 | 4 | 72 | GP4 | 44 | 1000 | ||
| KPX 6/15-6 | 86401220 | White | 9016 | 6 x 15 | 6 x 15 | 8.0 / 1.0 | 4 | 72 | GP4 | 45 | 1000 | ||
6.2 mm pitch strips in a row | |||||||||||||
| KPX 6/10-6.2 | 86401217 | White | 9016 | 6 x 10 | 6 x 10 | 5.0 / 1.0 | 4 | 68 | GP4 | 308 | 1020 | ||
| KPX 6/15-6.2 | 86401219 | White | 9016 | 6 x 15 | 6 x 15 | 8.0 / 1.0 | 4 | 68 | GP4 | 309 | 1020 | ||
6.8 mm pitch strips in a row | |||||||||||||
| KPX 6/10-6.8 | 86401222 | White | 9016 | 6 x 10 | 6 x 10 | 5.0 / 1.0 | 4 | 64 | GP4 | 46 | 1000 | ||
3.5 mm pitch strips in a row, flat foot (ZS) | |||||||||||||
| KPX 3.5/5-3.5 ZS | 86401223 | White | 9016 | 3.5 x 5 | 3.5 x 5 | 2.0 / 1.0 | 5 | 150 | GP5 | 416 | 3000 | ||
4.2 mm pitch strips in a row, flat foot (ZS) | |||||||||||||
| KPX 4.2/5-4.2 ZS | 86401248 | White | 9016 | 4.2 x 5 | 4.2 x 5 | 2.0 / 1.0 | 5 | 125 | GP5 | 47Z | 2500 | ||
5 mm pitch strips in a row, flat foot (ZS) | |||||||||||||
| KPX 5/7.5-5 ZS | 86401254 | White | 9016 | 5 x 7.5 | 5 x 7.5 | 4.0 / 1.0 | 4 | 88 | GP4 | 49Z | 1408 | ||
| KPX 5/10-5 ZS | 86401234 | White | 9016 | 5 x 10 | 5 x 10 | 5.0 / 1.0 | 4 | 88 | GP4 | 43Z | 1400 | ||
| KPX 5/5-5 ZS | 86401233 | Yellow | 1018 | 5 x 5 | 5 x 5 | 2.0 / 1.0 | 5 | 110 | GP5 | 43G | 2090 | ||
5 mm pitch strips in a row, flat foot (ZS), long mat version | |||||||||||||
| KPX 5/5-5 L ZS | 86401229 | White | 9016 | 5 x 5 | 5 x 5 | 2.0 / 1.0 | 5 | 105 | GP5 | 561 | 1680 | ||
5 – 6 mm pitch strips in a row, flat foot (ZS) | |||||||||||||
| KPX 5/10-5…6 ZS | 86401244 | White | 9016 | 5 x 10 | 5 x 10 | 5.0 / 1.0 | 4 | 88 | GP4 | 43U | 1400 | ||
6 mm pitch strips in a row, flat foot (ZS) | |||||||||||||
| KPX 6/5-6 ZS | 86401228 | White | 9016 | 5 x 6 | 5 x 6 | 3.0 / 1.0 | 5 | 90 | GP5 | 44Z | 2070 | ||
| KPX 6/10-6 ZS | 86401236 | White | 9016 | 6 x 10 | 6 x 10 | 5.0 / 1.0 | 4 | 72 | GP4 | 45Z | 1000 | ||
Single labels, flat foot (ZS) | |||||||||||||
| KPX 8.2/5 ZS | 86401252 | White | 9016 | 8.2 x 5 | 8.2 x 5 | 2.0 / 2.0 | 5 | 65 | GP5 | 48Z | 1040 | ||
| KPX 10/5 ZS | 86401246 | White | 9016 | 10 x 5 | 10 x 5 | 2.0 / 2.0 | 5 | 55 | GP5 | 41Z | 1320 | ||
12 mm pitch strips in a row, flat foot (ZS) | |||||||||||||
| KPX 12/5-12 ZS | 86401240 | White | 9016 | 5 x 12 | 5 x 12 | 6.0 / 1.0 | 5 | 45 | GP5 | 46Z | 1080 | ||
Universal strips, divisible (maximum length 104 mm, minimum length 4.2 mm), flat foot (ZS) | |||||||||||||
| KPX U/5 ZS | 86401230 | White | 9016 | 5 x 104 | 5 x 104 | 57.0 / 1.0 | 5 | 100 | GP5 | 180 | 2000 | ||
Labelling strip on label sheet in A4 format | |||||||||||||
| KPX 6/180 | 86402510 | White | 9016 | 6 x 180 | 6 x 180 | 100.0 / 1.0 | 1 | 20 | 180 | 100 | |||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS LABELLING SYSTEMS EN.pdf | 8 Mbytes |
|
| 86401255 86401255 EN_86401229.pdf | 1 Mbytes |
|
