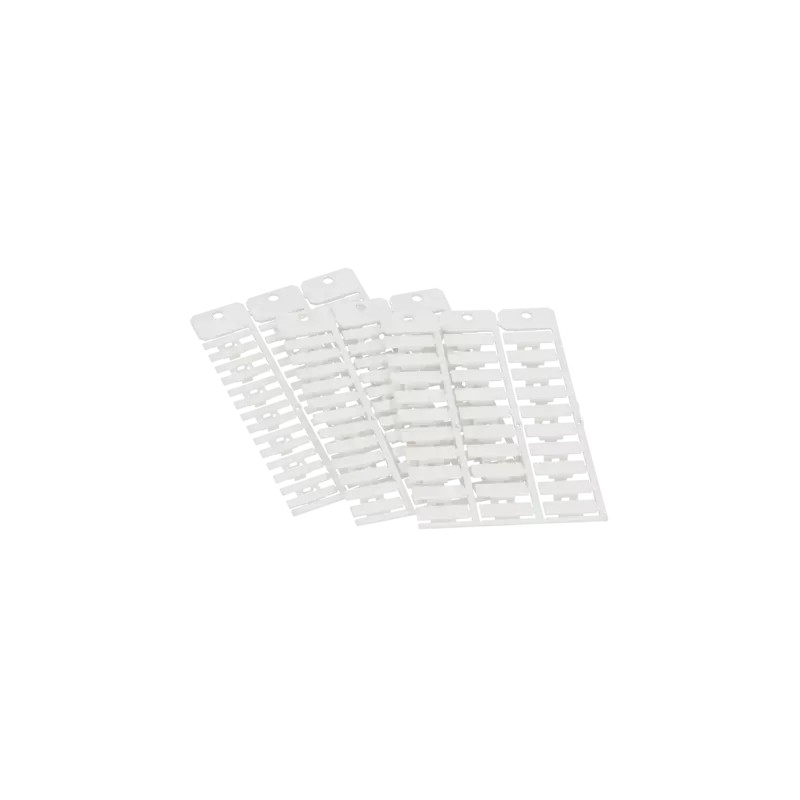

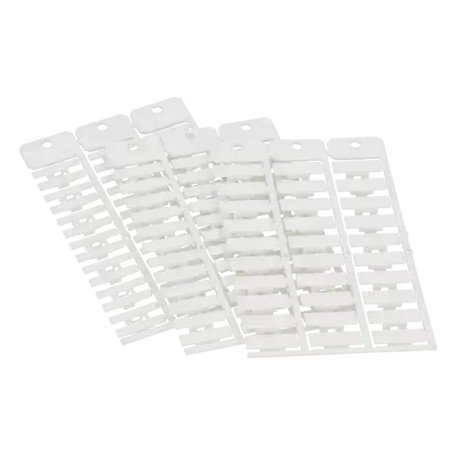

86382012 MURRPLASTIK KNCB 4.0/15-2.0 Board, ws
86382012
MURRPLASTIK
273
KNCB 4.0/15-2.0 Board, ws
KNCB 4,0/15-2,0 Placa, ws
Label KNC/ B
Marking systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲High-quality, halogen-free label for simultaneous double-sided subsequent direct labelling of wires. The KNC/B label, made of PC materials, was developed for the direct and subsequent labelling of cords and cables on the front and back. No tools required.
Available in five sizes for wire cross-sections of 1.6 - 5.7 mm.
Halogen-free
-40°C – 130°C
Polycarbonate (PC)
V0
| Type | Order No. | Colour | RAL equiv. | Application range from - to Ø mm (C) | Label size mm (B x A) | Printable area mm | No. characters/ lines | No. per Frame | Base plate | Software Type | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
For cable diameters of 1.6 mm to 2.0 mm | |||||||||||||
| KNC/B 4,0/15-1,0 | 86382002 | White | 9016 | 1.6 – 2 | 4 x 15 | 4 x 15 | 8.0 / 1.0 | 21 | GP3C-B | C24 | 273 | ||
| KNC/B 4,0/23-1,0 | 86382006 | White | 9016 | 1.6 – 2 | 4 x 23 | 4 x 23 | 12.0 / 1.0 | 21 | GP3C-B | C25 | 273 | ||
For cable diameters of 2.0 mm to 2.5 mm | |||||||||||||
| KNC/B 4,0/15-2,0 | 86382012 | White | 9016 | 2 – 2.5 | 4 x 15 | 4 x 15 | 8.0 / 1.0 | 21 | GP3C-B | C26 | 273 | ||
| KNC/B 4,0/23-2,0 | 86382016 | White | 9016 | 2 – 2.5 | 4 x 23 | 4 x 23 | 12.0 / 1.0 | 21 | GP3C-B | C27 | 273 | ||
For cable diameters of 2.9 mm to 3.6 mm | |||||||||||||
| KNC/B 5,5/15-3,0 | 86382022 | White | 9016 | 2.9 – 3.6 | 5.5 x 15 | 5.5 x 15 | 8.0 / 1.0 | 18 | GP3C-B | C28 | 234 | ||
| KNC/B 5,5/23-3,0 | 86382026 | White | 9016 | 2.9 – 3.6 | 5.5 x 23 | 5.5 x 23 | 12.0 / 1.0 | 18 | GP3C-B | C29 | 234 | ||
For cable diameters of 4.1 mm to 4.6 mm | |||||||||||||
| KNC/B 5,5/23-4,0 | 86382036 | White | 9016 | 4.1 – 4.6 | 5.5 x 23 | 5.5 x 23 | 12.0 / 1.0 | 18 | GP3C-B | C30 | 234 | ||
For cable diameters of 5.7 mm | |||||||||||||
| KNC/B 7,2/23-5,0 | 86382046 | White | 9016 | 5.7 – 5.7 | 7.2 x 23 | 7.2 x 23 | 12.0 / 2.0 | 15 | GP3C-B | C31 | 165 | ||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS LABELLING SYSTEMS EN.pdf | 8 Mbytes |
|
| 86382012 86382012 ES_86382002.pdf | 772 Kbytes |
|
