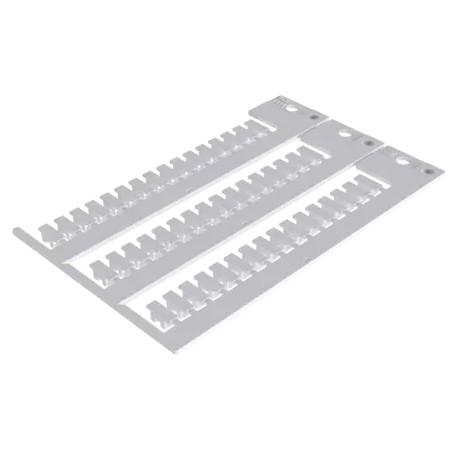

86381248 MURRPLASTIK Labelling KDE label plate Label length 21 mm White
86381248
MURRPLASTIK
576
Labelling KDE label plate Label length 21 mm White
KDE 21x4-3,2 Placa, ws
KDE label plate
Marking systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲The KDE label plates are pushed directly onto the single wires.
For wire cross sections from 0.5 – 4 mm².
Available in two lengths, in the colours white and yellow.
Halogen-free
-40°C – 130°C
Polycarbonate (PC)
V0
| Type | Order No. | Colour | RAL equiv. | Application range from - to Ø mm (C) | Wire Cross-section from - to mm² (D) | Label size mm (B x A) | No. per Frame | Base plate | Software Type | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Label length 11 mm | ||||||||||||
| KDE 11x4-3,2 | 86381240 | White | 9016 | 1.7 – 3.2 | 0.5 – 1.5 | 4 x 11 | 48 | GP KDE | A78 | 576 | ||
| KDE 11x4-4,2 | 86381242 | White | 9016 | 2 – 4.2 | 1 – 4 | 4 x 11 | 48 | GP KDE | A80 | 576 | ||
| KDE 11x4-3,2 | 86381241 | Yellow | 1018 | 1.7 – 3.2 | 0.5 – 1.5 | 4 x 11 | 48 | GP KDE | A79 | 576 | ||
| KDE 11x4-4,2 | 86381243 | Yellow | 1018 | 2 – 4.2 | 1 – 4 | 4 x 11 | 48 | GP KDE | A81 | 576 | ||
Label length 16 mm | ||||||||||||
| KDE 16x4-3,2 | 86381244 | White | 9016 | 1.7 – 3.2 | 0.5 – 1.5 | 4 x 16 | 48 | GP KDE | A82 | 576 | ||
| KDE 16x4-4,2 | 86381246 | White | 9016 | 2 – 4.2 | 1 – 4 | 4 x 16 | 48 | GP KDE | A84 | 576 | ||
| KDE 16x4-3,2 | 86381245 | Yellow | 1018 | 1.7 – 3.2 | 0.5 – 1.5 | 4 x 16 | 48 | GP KDE | A83 | 576 | ||
| KDE 16x4-4,2 | 86381247 | Yellow | 1018 | 2 – 4.2 | 1 – 4 | 4 x 16 | 48 | GP KDE | A85 | 576 | ||
Label length 21 mm | ||||||||||||
| KDE 21x4-3,2 | 86381248 | White | 9016 | 1.7 – 3.2 | 0.5 – 1.5 | 4 x 21 | 48 | GP KDE | 557 | 576 | ||
| KDE 21x4-4,2 | 86381250 | White | 9016 | 2 – 4.2 | 1 – 4 | 4 x 21 | 48 | GP KDE | 559 | 576 | ||
| KDE 21x4-3,2 | 86381249 | Yellow | 1018 | 1.7 – 3.2 | 0.5 – 1.5 | 4 x 21 | 48 | GP KDE | 558 | 576 | ||
| KDE 21x4-4,2 | 86381251 | Yellow | 1018 | 2 – 4.2 | 1 – 4 | 4 x 21 | 48 | GP KDE | 560 | 576 | ||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS LABELLING SYSTEMS EN.pdf | 8 Mbytes |
|
| 86381248 86381248 EN_86381248.pdf | 949 Kbytes |
|
