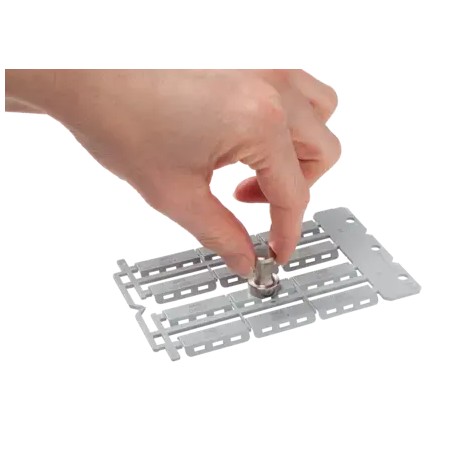

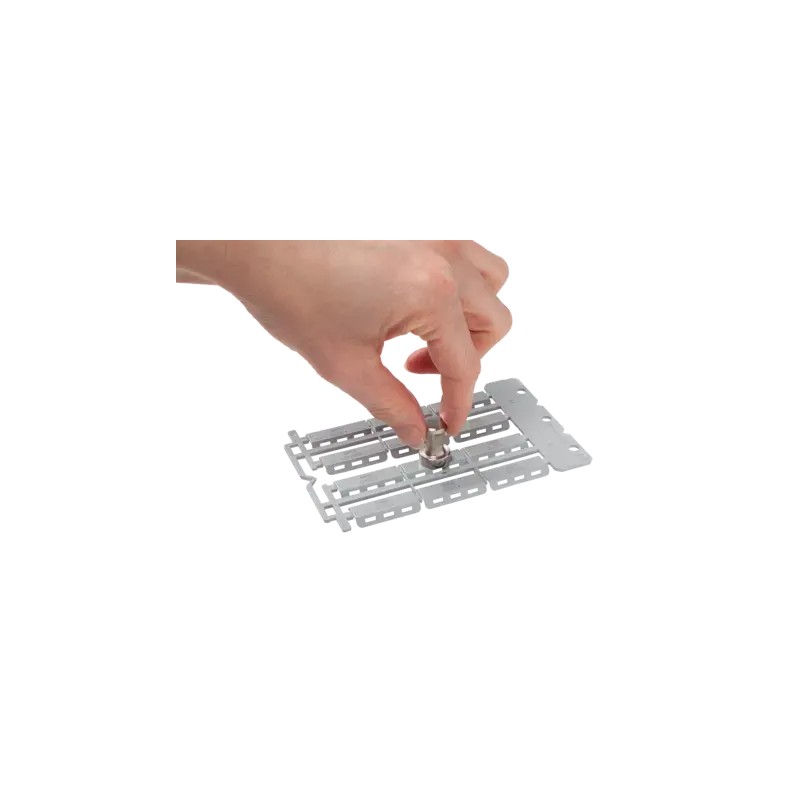

86281093 MURRPLASTIK Labelling KSD-D Detectable label plate (Polypropylene) Noticeable labels for longitudin..
86281093
MURRPLASTIK
480
Labelling KSD-D Detectable label plate (Polypropylene) Noticeable labels for longitudinal mounting; for labelling with the MP laser system Grey
KSD-D 40x10L PP Placa de identi., gr
KSD-D Detectable label plate (Polypropylene)
Marking systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲High-quality detectable label to attach with detectable cable ties directly onto the cables.
KSD label applications
The KSD label is a product designed for the subsequent marking of cables; it features a low-profile. The low-profile design requires that cable ties must not be tightened with a force higher than (50-60 N / 5-6 kg). Since the force intensifies considerably at the tongues for these small cable diameters, you must observe the recommended areas of application.
The material Polypropylene (PP) is intended only for labels created with the MP laser system.
Halogen-free
-30°C – 90°C
Polypropylene (PP)
HB
| Type | Order No. | Colour | RAL equiv. | minimum diameter mm | Printable area mm | No. characters/ lines | No. per Frame | Base plate | Software Type | MOQ qty. | Cable ties Width mm | Cable ties Length mm | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Detectable cable ties for lengthways mounting; for labelling with the MP laser system | ||||||||||||||
| KSD-D 20x5 PP | 86281066 | Grey | 7038 | 5 | 5 x 20 | 11.0 / 1.0 | 16 | GP3K | 483 | 480 | ||||
| KSD-D 30x8 PP | 86281064 | Grey | 7038 | 8 | 8 x 30 | 16.0 / 2.0 | 12 | GP3K | 484 | 360 | ||||
| KSD-D 40x10 PP | 86281062 | Grey | 7038 | 10 | 10 x 40 | 22.0 / 2.0 | 8 | GP3K | 485 | 240 | ||||
Detectable labels for lengthways mounting (long mat version); for labelling with the MP laser systems | ||||||||||||||
| KSD-D 20x5L PP | 86281083 | Grey | 7038 | 5 | 5 x 20 | 11.0 / 1.0 | 16 | GP3K | 503 | 480 | ||||
| KSD-D 30x8L PP | 86281089 | Grey | 7038 | 8 | 8 x 30 | 16.0 / 2.0 | 12 | GP3K | 506 | 216 | ||||
| KSD-D 40x10L PP | 86281093 | Grey | 7038 | 10 | 10 x 40 | 22.0 / 2.0 | 8 | GP3K | 505 | 240 | ||||
Detectable cable ties | ||||||||||||||
| KB-D 20 | 88661252 | Blue | 100 | 2.5 | 100 | |||||||||
| KB-D 25 | 88661256 | Blue | 100 | 3.5 | 140 | |||||||||
| KB-D 55 | 88661266 | Blue | 100 | 4.5 | 200 | |||||||||
| KB-D 75 | 88661268 | Blue | 100 | 4.5 | 280 | |||||||||
| KB-D 100 | 88661270 | Blue | 100 | 4.5 | 380 | |||||||||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS LABELLING SYSTEMS EN.pdf | 8 Mbytes |
|
| 86281093 86281093 EN_86281089.pdf | 952 Kbytes |
|
