> >>86131270 MURRPLASTIK Labelling Idents BK 30 Sign White :
Previous Product Next Product
86131270 MURRPLASTIK Labelling Idents BK 30 Sign White : View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

86131270 MURRPLASTIK Labelling Idents BK 30 Sign White :

86131270

MURRPLASTIK

1000

Labelling Idents BK 30 Sign White :

More details


Marking systems

* Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲

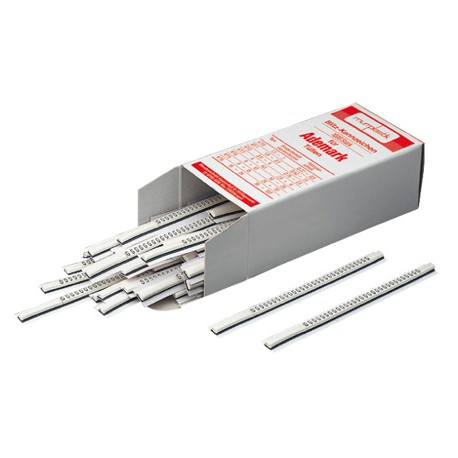

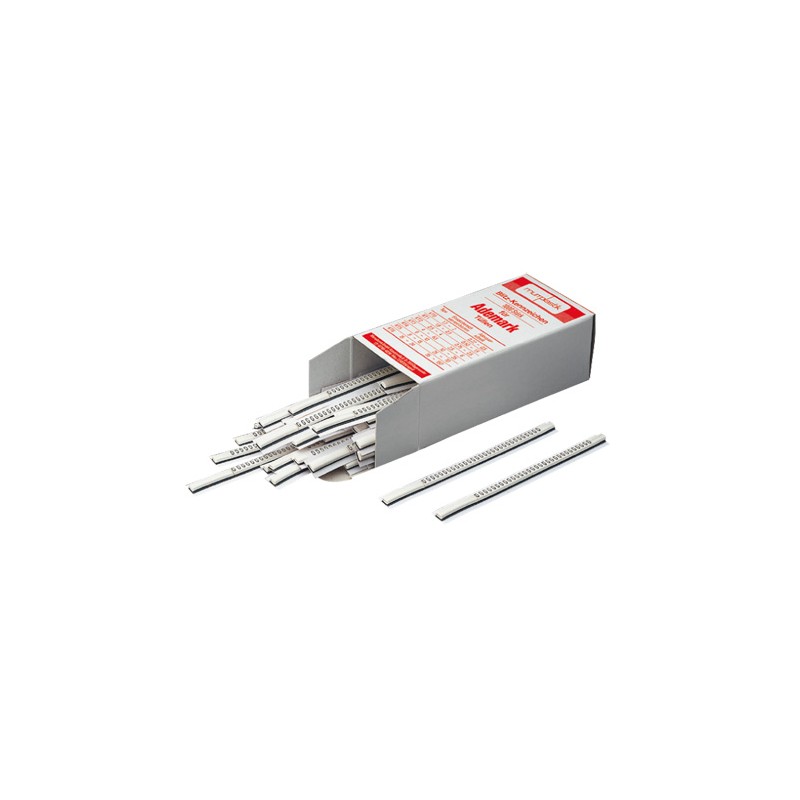

Pre-inscribed murr-fix idents made from special PVC. The individual labels come on plastic strips, each containing 20 labels.

BK 30: Label width 3.0 mm (A); Label height 4.0 mm (B)

Font width 2.0 mm; font height 3.5 mm; black lettering

Suitable for KT*-, KTH*- and KTH/Q* sleeves,as well as KM*-, KKM*-, KMH*-, KMH/Q*- and KTN* label holders.

Recommended tools to process idents (mounting frames, metal tab, metal hook) are listed in "Accessories".

-30°C – 80°C

Polyvinyl chloride (PVC)

V0

Type Order No. Colour Pack qty.

Upper case letters

A 86131211 White 1000
B 86131212 White 1000
C 86131213 White 1000
D 86131214 White 1000
E 86131215 White 1000
s 86131216 White 1000
G 86131217 White 1000
H 86131218 White 1000
I 86131219 White 1000
J 86131220 White 1000
K 86131221 White 1000
L 86131222 White 1000
M 86131223 White 1000
N 86131224 White 1000
O 86131225 White 1000
P 86131226 White 1000
Q 86131227 White 1000
R 86131228 White 1000
S 86131229 White 1000
T 86131230 White 1000
U 86131231 White 1000
V 86131232 White 1000
W 86131233 White 1000
X 86131234 White 1000
Y 86131235 White 1000
Z 86131236 White 1000

Lower case letters

a 86131237 White 1000
b 86131238 White 1000
c 86131239 White 1000
d 86131240 White 1000
e 86131241 White 1000
f 86131242 White 1000
g 86131243 White 1000
h 86131244 White 1000
i 86131245 White 1000
j 86131246 White 1000
k 86131247 White 1000
l 86131248 White 1000
m 86131249 White 1000
n 86131250 White 1000
o 86131251 White 1000
p 86131252 White 1000
q 86131253 White 1000
r 86131254 White 1000
s 86131255 White 1000
t 86131256 White 1000
u 86131257 White 1000
v 86131258 White 1000
w 86131259 White 1000
x 86131260 White 1000
y 86131261 White 1000
z 86131262 White 1000

Numbers

1 86131278 White 1000
2 86131279 White 1000
3 86131280 White 1000
4 86131281 White 1000
5 86131282 White 1000
6 86131283 White 1000
7 86131284 White 1000
8 86131285 White 1000
9 86131286 White 1000

Signs

+ 86131264 White 1000
- 86131265 White 1000
/ 86131266 White 1000
= 86131267 White 1000
. 86131268 White 1000
* 86131269 White 1000
: 86131270 White 1000

Special characters

Left arrow 86131271 White 1000
Right arrow 86131272 White 1000
AC voltage 86131273 White 1000
Earthing symbol 86131274 White 1000
Star connection 86131275 White 1000
Delta connection 86131276 White 1000

Blank space

Blank 86131277 White 1000

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRPLASTIKS LABELLING SYSTEMS EN.pdf 8 Mbytes
