MURRPLASTIKMarking systems8610140129 MURRPLASTIK Labelling Rectangular with radius Rectangular design with corner radius Silver

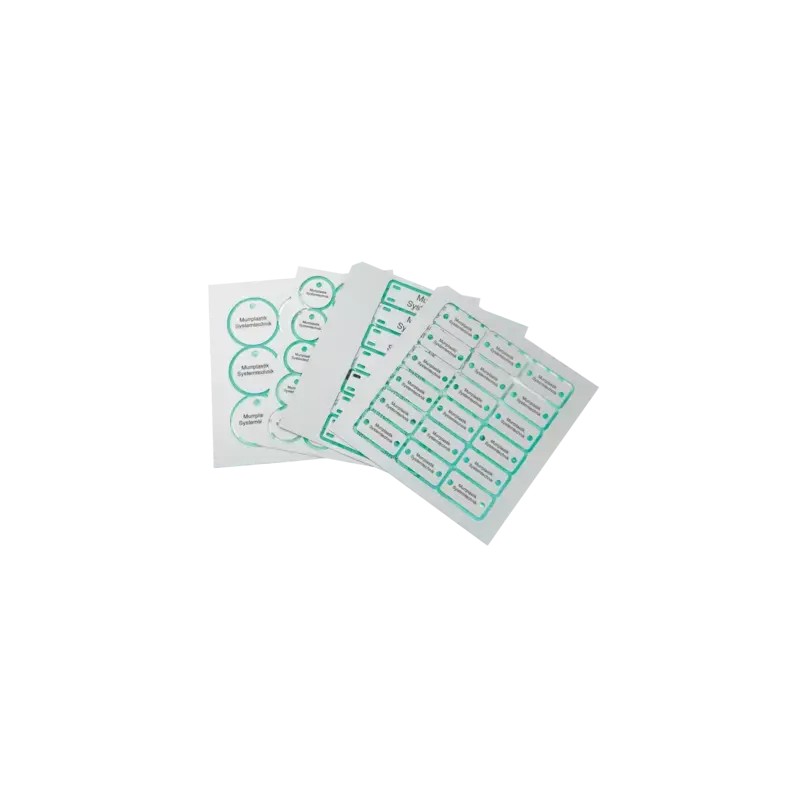

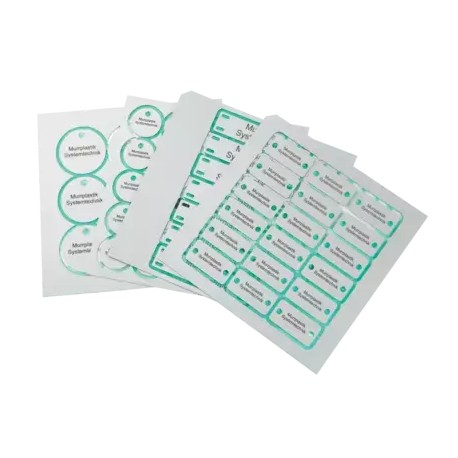

MURRPLASTIK 8610140129 8610140129 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

8610140129 MURRPLASTIK Labelling Rectangular with radius Rectangular design with corner radius Silver

Reference: 8610140129

Manufacturer: MURRPLASTIK

Description:

Labelling Rectangular with radius Rectangular design with corner radius Silver
LAM 27x17.5mm SI R2 SK MS0.5
LAM Rectangular with radius

Categories:

  • MURRPLASTIK > Marking systems

Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 85,85 €

Unit Price: 1,4308 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 7-9 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Laser Alumatt consists of coated aluminium, suitable for laser engraving.

The surface is coated for laser engraving.

After laser marking with a Murrplastik mp-LM series laser marking system the engraving appears in black.

Available in a material thickness of 0.5 mm or 1.0 mm.

A suction and filter unit is absolutely necessary to comply with legal regulations on health protection.

-20°C – 80°C, short term 120°C

Aluminium painted (ALU)

A1

TypeOrder No.ColourMaterial thickness mmPrintable area mmNo. characters/ linesNo. per FrameSoftware TypeMOQ qty.

Rectangular design with corner radius

LAM 19x45 R2 SK8610140212Silver0.519 x 4510.0 / 13.010MU040
LAM 22x22 R2 SK8610140110Silver0.522 x 2212.0 / 6.016L3Q64
LAM 25x10 R2 SKS8610140198Silver0.525 x 1013.0 / 2.036MM8144
LAM 25x10 R2 SK8610140061Silver0.525 x 1013.0 / 2.040LQ3160
LAM 26,8x17,5 R2 HF8610140111Silver0.526.8 x 17.514.0 / 5.024L3R96
LAM 27x12,5 R2 SK8610140127Silver0.527 x 12.515.0 / 3.021L5Q84
LAM 27x12,5 R2 SKS8610140243Silver127 x 12.515.0 / 3.021NB484
LAM 27x15 R1 SKS8610140258Silver0.527 x 1515.0 / 4.018NG672
LAM 27x17,5 R2 SK8610140129Silver0.527 x 17.515.0 / 5.015L5O60
LAM 27x27 R2 SK8610140126Silver0.527 x 2715.0 / 7.09L5R36
LAM 30x4 R2 SK8610140156Silver130 x 416.0 / 1.054L8X216
LAM 30x10 R2 SKS8610140057Silver0.530 x 1016.0 / 2.030LP2120
LAM 35x12 R2 SK8610140160Silver0.535 x 1219.0 / 3.024L9H96
LAM 40x30 R2 SKS8610140200Silver0.540 x 3022.0 / 8.06MN024
LAM 50x10 R2 SKS8610140199Silver0.550 x 1027.0 / 2.018MM972
LAM 50x15 R2 HF8610140117Silver0.550 x 1527.0 / 4.012L4O48
LAM 52x18 R2 SKS8610140068Silver0.518 x 5210.0 / 15.010LW540
LAM 52x25 R2 SK8610140105Silver0.552 x 2528.0 / 7.08L2W32
LAM 55x55 R2 SK8610140055Silver0.555 x 5530.0 / 16.04LN416
LAM 60x10 R2 SKS8610140177Silver160 x 1033.0 / 2.09MF536
LAM 70x18 R2 SKS8610140060Silver0.570 x 1838.0 / 5.05LP820
LAM 70x35 R2 SK8610140128Silver0.570 x 3538.0 / 10.03L5P12
LAM 100x30 R2 SKS8610140180Silver1100 x 3055.0 / 8.03MG912
LAM 116x116 R2 SK8610140084Silver0.5116 x 11664.0 / 34.01L0S4
LAM 119x80 R2 SKS8610140186Silver1119 x 8066.0 / 23.01MI94
