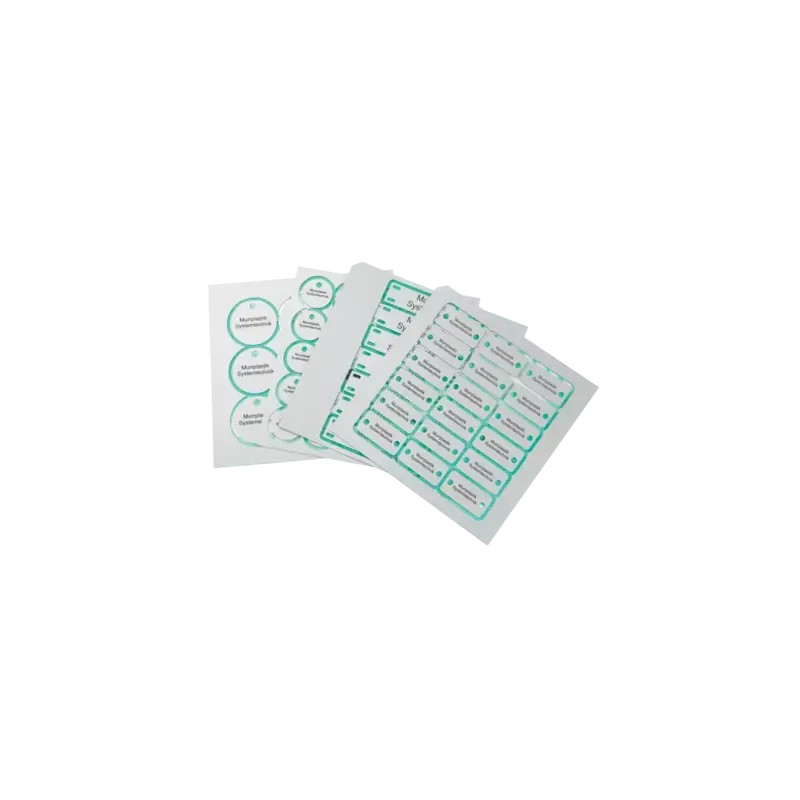

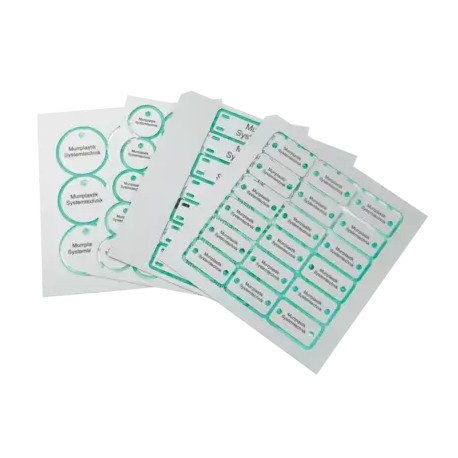

8610140113 MURRPLASTIK Labelling Rectangular without radius Rectangular design Silver
8610140113
MURRPLASTIK
40
Labelling Rectangular without radius Rectangular design Silver
LAM 50x20 SI SK MS0,5
LAM Rectangular without radius
Marking systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲Laser Alumatt consists of coated aluminium, suitable for laser engraving.
The surface is coated for laser engraving.
After laser marking with a Murrplastik mp-LM series laser marking system the engraving appears in black.
Available in a material thickness of 0.5 mm or 1.0 mm.
A suction and filter unit is absolutely necessary to comply with legal regulations on health protection.
-20°C – 80°C, short term 120°C
Aluminium painted (ALU)
A1
| Type | Order No. | Colour | Material thickness mm | Printable area mm | No. characters/ lines | No. per Frame | Software Type | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|
Rectangular design | ||||||||||
| LAM 10x120 HF | 8610140254 | Silver | 1 | 10 x 120 | 5.0 / 35.0 | 10 | NF1 | 40 | ||
| LAM 12x12 SK | 8610140093 | Silver | 0.5 | 12 x 12 | 6.0 / 3.0 | 64 | L2K | 256 | ||
| LAM 20x9 SKS | 8610140222 | Silver | 0.5 | 20 x 9 | 11.0 / 2.0 | 50 | MV0 | 200 | ||
| LAM 22x14 SKS | 8610140205 | Silver | 1 | 22 x 14 | 12.0 / 4.0 | 28 | MR3 | 112 | ||
| LAM 26,8x18 HF | 8610140112 | Silver | 0.5 | 26.8 x 18 | 14.0 / 5.0 | 20 | L3S | 80 | ||
| LAM 27x18 SK | 8610140130 | Silver | 0.5 | 27 x 18 | 15.0 / 5.0 | 15 | L5N | 60 | ||
| LAM 27x18 SKS | 8610140251 | Silver | 0.5 | 27 x 18 | 15.0 / 5.0 | 15 | NE5 | 60 | ||
| LAM 29x8 SK | 8610140145 | Silver | 1 | 29 x 8 | 16.0 / 2.0 | 33 | L7N | 132 | ||
| LAM 40x15 SK | 8610140176 | Silver | 1 | 40 x 15 | 22.0 / 4.0 | 12 | MF4 | 48 | ||
| LAM 40x20 SK | 8610140175 | Silver | 1 | 40 x 20 | 22.0 / 5.0 | 10 | MF3 | 40 | ||
| LAM 40x40 SK | 8610140174 | Silver | 1 | 40 x 40 | 22.0 / 11.0 | 4 | MF2 | 16 | ||
| LAM 40x50 SK | 8610140173 | Silver | 1 | 40 x 50 | 22.0 / 14.0 | 4 | MF1 | 16 | ||
| LAM 50x13 SK | 8610140161 | Silver | 1 | 50 x 13 | 27.0 / 3.0 | 14 | L9X | 56 | ||
| LAM 50x20 SK | 8610140113 | Silver | 0.5 | 50 x 20 | 27.0 / 5.0 | 10 | L3T | 40 | ||
| LAM 52x37 SKS | 8610140256 | Silver | 0.5 | 52 x 37 | 28.0 / 10.0 | 4 | NG3 | 16 | ||
| LAM 60x50 HF | 8610140253 | Silver | 1 | 60 x 50 | 33.0 / 14.0 | 2 | NF0 | 8 | ||
| LAM 74x37 SK | 8610140162 | Silver | 1 | 74 x 37 | 41.0 / 10.0 | 2 | L9Y | 8 | ||
| LAM 83x55 HF | 8610140077 | Silver | 0.5 | 83 x 55 | 46.0 / 16.0 | 2 | LX7 | 8 | ||
| LAM 90x90 HF | 8610140184 | Silver | 1 | 90 x 90 | 50.0 / 26.0 | 1 | MI6 | 4 | ||
| LAM° 105x74 SK | 8610140029 | Silver | 0.5 | 105 x 74 | 58.0 / 21.0 | 1 | LG2 | 4 | ||
| LAM 111x55 SKS | 8610140083 | Silver | 0.5 | 111 x 55 | 61.0 / 16.0 | 2 | L0R | 8 | ||
| LAM 120X120 HF | 8610140064 | Silver | 0.5 | 120 x 120 | 66.0 / 35.0 | 1 | LQ9 | 4 | ||
| LAM 120X120 SK | 8610140063 | Silver | 0.5 | 120 x 120 | 66.0 / 35.0 | 1 | LQ8 | 4 | ||
| LAM 120x120 SKS | 8610140247 | Yellow matt | 1 | 120 x 120 | 66.0 / 35.0 | 1 | ND1 | 4 | ||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS LABELLING SYSTEMS EN.pdf | 8 Mbytes |
|
| 8610140113 8610140113 EN_8610140083.pdf | 696 Kbytes |
|
