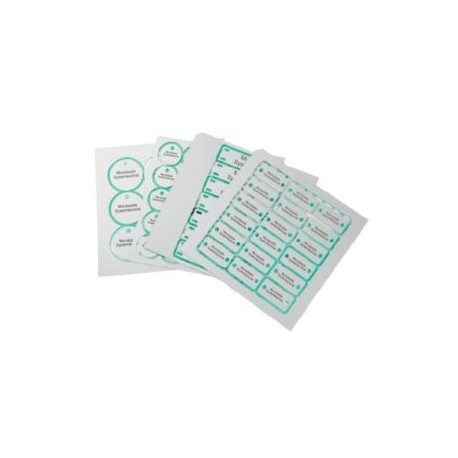

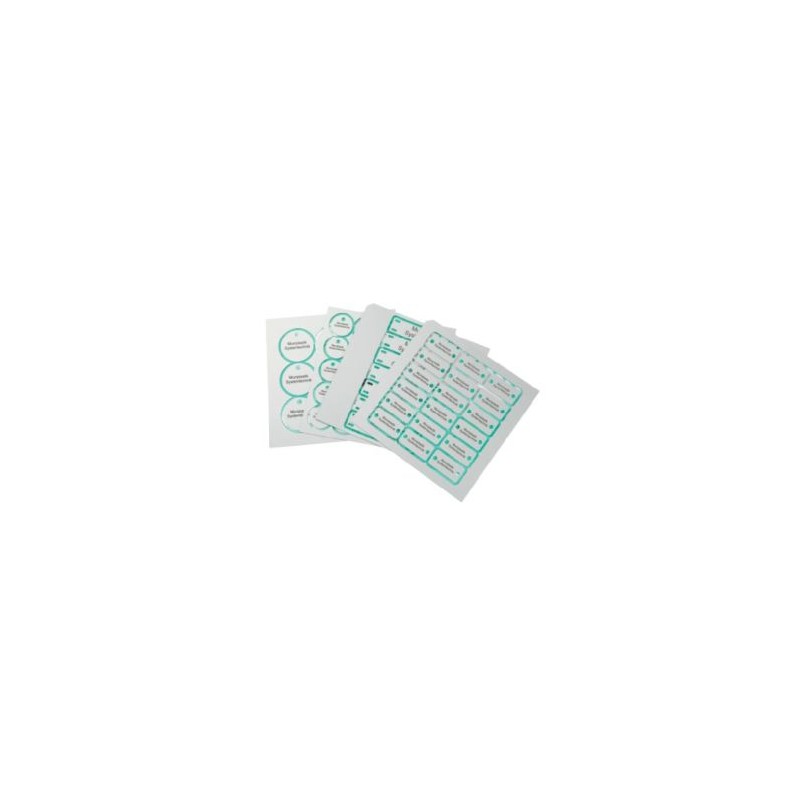

8610140110 MURRPLASTIK Labelling Rectangular with radius Rectangular design with corner radius Silver
8610140110
MURRPLASTIK
64
Labelling Rectangular with radius Rectangular design with corner radius Silver
LAM 22x22 SI R2 SK MS0,5
LAM Rectangular with radius
Marking systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲Laser Alumatt consists of coated aluminium, suitable for laser engraving.
The surface is coated for laser engraving.
After laser marking with a Murrplastik mp-LM series laser marking system the engraving appears in black.
Available in a material thickness of 0.5 mm or 1.0 mm.
A suction and filter unit is absolutely necessary to comply with legal regulations on health protection.
-20°C – 80°C, short term 120°C
Aluminium painted (ALU)
A1
| Type | Order No. | Colour | Material thickness mm | Printable area mm | No. characters/ lines | No. per Frame | Software Type | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|
Rectangular design with corner radius | ||||||||||
| LAM 19x45 R2 SK | 8610140212 | Silver | 0.5 | 19 x 45 | 10.0 / 13.0 | 10 | MU0 | 40 | ||
| LAM 22x22 R2 SK | 8610140110 | Silver | 0.5 | 22 x 22 | 12.0 / 6.0 | 16 | L3Q | 64 | ||
| LAM 25x10 R2 SKS | 8610140198 | Silver | 0.5 | 25 x 10 | 13.0 / 2.0 | 36 | MM8 | 144 | ||
| LAM 25x10 R2 SK | 8610140061 | Silver | 0.5 | 25 x 10 | 13.0 / 2.0 | 40 | LQ3 | 160 | ||
| LAM 26,8x17,5 R2 HF | 8610140111 | Silver | 0.5 | 26.8 x 17.5 | 14.0 / 5.0 | 24 | L3R | 96 | ||
| LAM 27x12,5 R2 SK | 8610140127 | Silver | 0.5 | 27 x 12.5 | 15.0 / 3.0 | 21 | L5Q | 84 | ||
| LAM 27x12,5 R2 SKS | 8610140243 | Silver | 1 | 27 x 12.5 | 15.0 / 3.0 | 21 | NB4 | 84 | ||
| LAM 27x15 R1 SKS | 8610140258 | Silver | 0.5 | 27 x 15 | 15.0 / 4.0 | 18 | NG6 | 72 | ||
| LAM 27x17,5 R2 SK | 8610140129 | Silver | 0.5 | 27 x 17.5 | 15.0 / 5.0 | 15 | L5O | 60 | ||
| LAM 27x27 R2 SK | 8610140126 | Silver | 0.5 | 27 x 27 | 15.0 / 7.0 | 9 | L5R | 36 | ||
| LAM 30x4 R2 SK | 8610140156 | Silver | 1 | 30 x 4 | 16.0 / 1.0 | 54 | L8X | 216 | ||
| LAM 30x10 R2 SKS | 8610140057 | Silver | 0.5 | 30 x 10 | 16.0 / 2.0 | 30 | LP2 | 120 | ||
| LAM 35x12 R2 SK | 8610140160 | Silver | 0.5 | 35 x 12 | 19.0 / 3.0 | 24 | L9H | 96 | ||
| LAM 40x30 R2 SKS | 8610140200 | Silver | 0.5 | 40 x 30 | 22.0 / 8.0 | 6 | MN0 | 24 | ||
| LAM 50x10 R2 SKS | 8610140199 | Silver | 0.5 | 50 x 10 | 27.0 / 2.0 | 18 | MM9 | 72 | ||
| LAM 50x15 R2 HF | 8610140117 | Silver | 0.5 | 50 x 15 | 27.0 / 4.0 | 12 | L4O | 48 | ||
| LAM 52x18 R2 SKS | 8610140068 | Silver | 0.5 | 18 x 52 | 10.0 / 15.0 | 10 | LW5 | 40 | ||
| LAM 52x25 R2 SK | 8610140105 | Silver | 0.5 | 52 x 25 | 28.0 / 7.0 | 8 | L2W | 32 | ||
| LAM 55x55 R2 SK | 8610140055 | Silver | 0.5 | 55 x 55 | 30.0 / 16.0 | 4 | LN4 | 16 | ||
| LAM 60x10 R2 SKS | 8610140177 | Silver | 1 | 60 x 10 | 33.0 / 2.0 | 9 | MF5 | 36 | ||
| LAM 70x18 R2 SKS | 8610140060 | Silver | 0.5 | 70 x 18 | 38.0 / 5.0 | 5 | LP8 | 20 | ||
| LAM 70x35 R2 SK | 8610140128 | Silver | 0.5 | 70 x 35 | 38.0 / 10.0 | 3 | L5P | 12 | ||
| LAM 100x30 R2 SKS | 8610140180 | Silver | 1 | 100 x 30 | 55.0 / 8.0 | 3 | MG9 | 12 | ||
| LAM 116x116 R2 SK | 8610140084 | Silver | 0.5 | 116 x 116 | 64.0 / 34.0 | 1 | L0S | 4 | ||
| LAM 119x80 R2 SKS | 8610140186 | Silver | 1 | 119 x 80 | 66.0 / 23.0 | 1 | MI9 | 4 | ||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS LABELLING SYSTEMS EN.pdf | 8 Mbytes |
|
| 8610140110 8610140110 EN_8610140126.pdf | 696 Kbytes |
|
