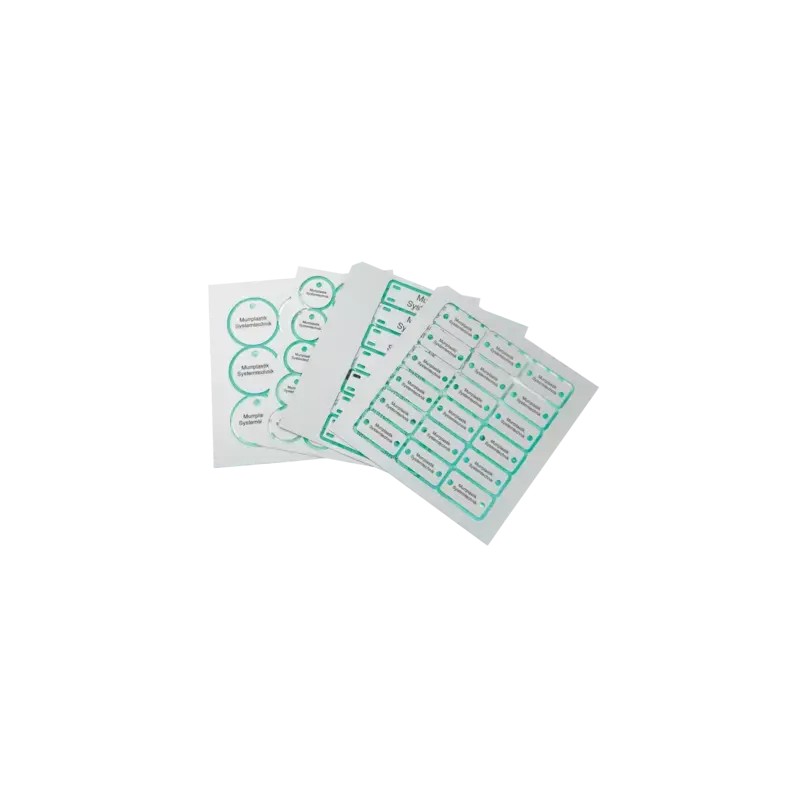

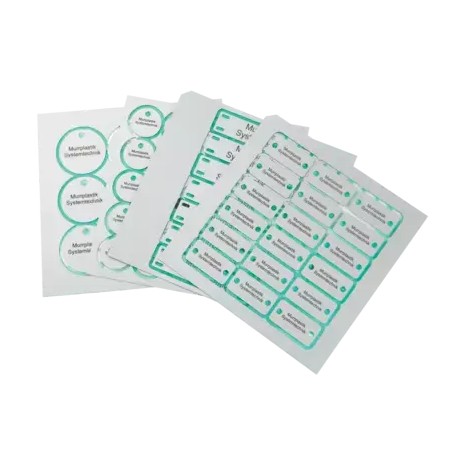

8610140109 MURRPLASTIK Labelling Rectangular without radius, 2x hole Rectangular design with two holes Silver
8610140109
MURRPLASTIK
4
Labelling Rectangular without radius, 2x hole Rectangular design with two holes Silver
LAM 40x20mm SI HF 2x 3.5mm MS0.5
Rectangular without radius, 2x hole
Marking systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲Laser Alumatt consists of coated aluminium, suitable for laser engraving.
The surface is coated for laser engraving.
After laser marking with a Murrplastik mp-LM series laser marking system the engraving appears in black.
Available in a material thickness of 0.5 mm or 1.0 mm.
A suction and filter unit is absolutely necessary to comply with legal regulations on health protection.
-20°C – 80°C, short term 120°C
Aluminium painted (ALU)
A1
| Type | Order No. | Colour | Material thickness mm | Printable area mm | No. characters/ lines | Hole patterns Number x Ø mm | No. per Frame | Software Type | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
Rectangular design with two holes | |||||||||||
| LAM 15x30 HF, 2x2,5MM | 8610140255 | Silver | 0.5 | 15 x 17.5 | 8.0 / 5.0 | 2x 2.5 | 18 | NF2 | 72 | ||
| LAM 25x25 HF, 2x2.5MM | 8610140072 | Silver | 0.5 | 12.5 x 25 | 6.0 / 7.0 | 2x 2.5 | 16 | LX2 | 64 | ||
| LAM 26x9 SK, 2x2,3MM | 8610140094 | Silver | 0.5 | 14.5 x 9 | 8.0 / 2.0 | 2x 2.3 | 44 | L2L | 176 | ||
| LAM 27x18 SK, 2x2,3MM | 8610140095 | Silver | 0.5 | 15.5 x 18 | 8.0 / 5.0 | 2x 2.3 | 20 | L2M | 80 | ||
| LAM 28x10 HF, 2x2,5MM | 8610140146 | Silver | 1 | 17 x 10 | 9.0 / 2.0 | 2x 2.5 | 27 | L7O | 108 | ||
| LAM 30x14 HF, 2x3,0MM | 8610140224 | Silver | 1 | 15 x 14 | 8.0 / 4.0 | 2x 3.0 | 21 | MW9 | 84 | ||
| LAM 30x20 HF, 2x3,0MM | 8610140210 | Silver | 1 | 15 x 20 | 8.0 / 5.0 | 2x 3.0 | 15 | MT2 | 60 | ||
| LAM 30x25 HF, 2x2,8MM | 8610140215 | Silver | 1 | 18.4 x 25 | 10.0 / 7.0 | 2x 2.8 | 12 | MU3 | 48 | ||
| LAM 32x10 HF, 2x3,0MM | 8610140164 | Silver | 1 | 19 x 10 | 10.0 / 2.0 | 2x 3.0 | 27 | MA0 | 108 | ||
| LAM 36x10 SK, 2x2,3MM | 8610140096 | Silver | 0.5 | 24.5 x 10 | 13.0 / 2.0 | 2x 2.3 | 30 | L2N | 120 | ||
| LAM° 36x36 HF, 2x2,5MM | 8610140038 | Silver | 0.5 | 26 x 36 | 14.0 / 10.0 | 2x 2.5 | 9 | LG3 | 36 | ||
| LAM° 37x9 HF, 2x2,5MM | 8610140037 | Silver | 0.5 | 25.4 x 9 | 14.0 / 2.0 | 2x 2.5 | 33 | LG4 | 132 | ||
| LAM 37x18 SK, 2x2,3MM | 8610140097 | Silver | 0.5 | 25.5 x 18 | 14.0 / 5.0 | 2x 2.3 | 10 | L2O | 40 | ||
| LAM 40x10 HF, 2x3,0MM | 8610140082 | Silver | 0.5 | 24 x 10 | 13.0 / 2.0 | 2x 3.0 | 20 | L0P | 80 | ||
| LAM 40x15 HF, 2x3,2MM | 8610140033 | Silver | 0.5 | 23.6 x 15 | 13.0 / 4.0 | 2x 3.2 | 14 | LG6 | 56 | ||
| LAM 40x15 SKS, 2x3,2MM | 8610140250 | Silver | 1 | 24 x 15 | 13.0 / 4.0 | 2x 3.2 | 12 | NE4 | 48 | ||
| LAM 40x17 HF, 2x2,8MM | 8610140216 | Silver | 1 | 29.4 x 17 | 16.0 / 5.0 | 2x 2.8 | 10 | MU4 | 40 | ||
| LAM 40x20 HF, 2x2,5MM | 8610140240 | Silver | 1 | 28 x 20 | 15.0 / 5.0 | 2x 2.5 | 10 | MZ5 | 40 | ||
| LAM 40x20 HF, 2x3,5MM | 8610140109 | Silver | 0.5 | 22.5 x 20 | 12.0 / 5.0 | 2x 3.5 | 10 | L3A | 40 | ||
| LAM 40x25 HF, 2x3,2MM | 8610140034 | Silver | 0.5 | 23.6 x 25 | 13.0 / 7.0 | 2x 3.2 | 8 | LG7 | 32 | ||
| LAM° 40x25 HF, 2x3,5MM | 8610140051 | Silver | 0.5 | 25 x 25 | 13.0 / 7.0 | 2x 3.5 | 8 | LM4 | 32 | ||
| LAM 40x30 HF, 2x3,0MM | 8610140211 | Silver | 1 | 25 x 30 | 13.0 / 8.0 | 2x 3.0 | 6 | MT3 | 24 | ||
| LAM 40x40 HF, 2x3,5MM | 8610140052 | Silver | 0.5 | 25 x 40 | 13.0 / 11.0 | 2x 3.5 | 4 | LM5 | 16 | ||
| LAM 48x14 HF, 2x3,0MM | 8610140246 | Silver | 1 | 33 x 14 | 18.0 / 4.0 | 2x 3.0 | 14 | ND0 | 56 | ||
| LAM 48x23 HF, 2x3,0MM | 8610140226 | Silver | 1 | 33 x 23 | 18.0 / 6.0 | 2x 3.0 | 8 | MX1 | 32 | ||
| LAM 48x38 HF, 2x3,0MM | 8610140223 | Silver | 1 | 33 x 38 | 18.0 / 11.0 | 2x 3.0 | 4 | MW8 | 16 | ||
| LAM 50x20 HF, 2x2,5MM | 8610140244 | Silver | 1 | 37 x 20 | 20.0 / 5.0 | 2x 2.5 | 10 | NB7 | 40 | ||
| LAM 50x20 SKS, 2x3,5MM | 8610140192 | Silver | 1 | 36 x 20 | 20.0 / 5.0 | 2x 3.5 | 10 | MK0 | 40 | ||
| LAM 50x40 HF, 2x2,5MM | 8610140075 | Silver | 0.5 | 37.5 x 40 | 20.0 / 11.0 | 2x 2.5 | 4 | LX5 | 16 | ||
| LAM 50x50 HF, 2x2,8MM | 8610140217 | Silver | 1 | 38.4 x 50 | 21.0 / 14.0 | 2x 2.8 | 4 | MU5 | 16 | ||
| LAM 52x21 SKS, 2x2,0MM | 8610140206 | Silver | 1 | 42 x 21 | 23.0 / 6.0 | 2x 2.0 | 10 | MR4 | 40 | ||
| LAM 52x26 HF, 2x3,0MM | 8610140227 | Silver | 1 | 37 x 26 | 20.0 / 7.0 | 2x 3.0 | 8 | MX2 | 32 | ||
| LAM° 52x26 SK, 2x2,6MM | 8610140048 | Silver | 0.5 | 38.8 x 26 | 21.0 / 7.0 | 2x 2.6 | 8 | LK8 | 32 | ||
| LAM 54x20 HF, 2x2,0MM | 8610140187 | Silver | 1 | 44 x 20 | 24.0 / 5.0 | 2x 2.0 | 10 | MJ5 | 40 | ||
| LAM 60x25 HF, 2x3,5MM | 8610140053 | Silver | 0.5 | 45 x 25 | 25.0 / 7.0 | 2x 3.5 | 4 | LM6 | 16 | ||
| LAM 60x40 HF, 2x3,5MM | 8610140054 | Silver | 0.5 | 45 x 40 | 25.0 / 11.0 | 2x 3.5 | 2 | LM7 | 8 | ||
| LAM 60x40 HF, 2x3,5MM | 8610140069 | Silver | 0.5 | 60 x 25 | 33.0 / 7.0 | 2x 3.5 | 2 | LW4 | 8 | ||
| LAM 70x15 HF, 2x3,5MM | 8610140099 | Silver | 0.5 | 52.5 x 15 | 29.0 / 4.0 | 2x 3.5 | 7 | L2Q | 28 | ||
| LAM 70x35 HF, 2x5,5MM | 8610140021 | Silver | 0.5 | 39 x 35 | 21.0 / 10.0 | 2x 5.5 | 3 | LF4 | 12 | ||
| LAM 72x14 HF, 2x3,0MM | 8610140231 | Silver | 1 | 57 x 14 | 31.0 / 4.0 | 2x 3.0 | 7 | MX6 | 28 | ||
| LAM 73x32 SKS, 2x2,0MM | 8610140207 | Silver | 1 | 63 x 32 | 35.0 / 9.0 | 2x 2.0 | 3 | MR5 | 12 | ||
| LAM 74x25 HF, 2x3,2MM | 8610140259 | Silver | 1 | 59.6 x 25 | 33.0 / 7.0 | 2x 3.2 | 4 | NG7 | 16 | ||
| LAM 74x37 SKS, 2x2,0MM | 8610140208 | Silver | 1 | 64 x 37 | 35.0 / 10.0 | 2x 2.0 | 2 | MR6 | 8 | ||
| LAM 74x37 HF, 2x3,0MM | 8610140228 | Silver | 1 | 59 x 37 | 32.0 / 10.0 | 2x 3.0 | 2 | MX3 | 8 | ||
| LAM 74x37 HF, 2x3,2MM | 8610140260 | Silver | 1 | 59.6 x 37 | 33.0 / 10.0 | 2x 3.2 | 2 | NG8 | 12 | ||
| LAM 74x52 SK, 2x2,6MM | 8610140049 | Silver | 0.5 | 63 x 52 | 35.0 / 15.0 | 2x 2.6 | 2 | LK9 | 8 | ||
| LAM 80x20 HF, 2x3,2MM | 8610140197 | Silver | 1 | 65.6 x 20 | 36.0 / 5.0 | 2x 3.2 | 5 | MM6 | 20 | ||
| LAM 96x14 HF, 2x3,0MM | 8610140229 | Silver | 1 | 81 x 14 | 45.0 / 4.0 | 2x 3.0 | 7 | MX4 | 28 | ||
| LAM 96x23 HF, 2x3,0MM | 8610140245 | Silver | 1 | 81 x 23 | 45.0 / 6.0 | 2x 3.0 | 4 | NC0 | 16 | ||
| LAM 100x40 HF, 2x2,5MM | 8610140076 | Silver | 0.5 | 87.5 x 40 | 48.0 / 11.0 | 2x 2.5 | 2 | LX6 | 8 | ||
| LAM 100x46,7 HF, 2x3,5MM | 8610140032 | Silver | 0.5 | 83 x 46.7 | 46.0 / 13.0 | 2x 3.5 | 2 | LG5 | 8 | ||
| LAM 100x50 HF, 2x3,0MM | 8610140106 | Silver | 1 | 84 x 50 | 46.0 / 14.0 | 2x 3.0 | 2 | L2X | 8 | ||
| LAM 118x37 SKS, 2x2,0MM | 8610140209 | Silver | 1 | 108 x 37 | 60.0 / 10.0 | 2x 2.0 | 3 | MR7 | 12 | ||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS LABELLING SYSTEMS EN.pdf | 8 Mbytes |
|
| 8610140109 8610140109 EN_8610140038.pdf | 984 Kbytes |
|
