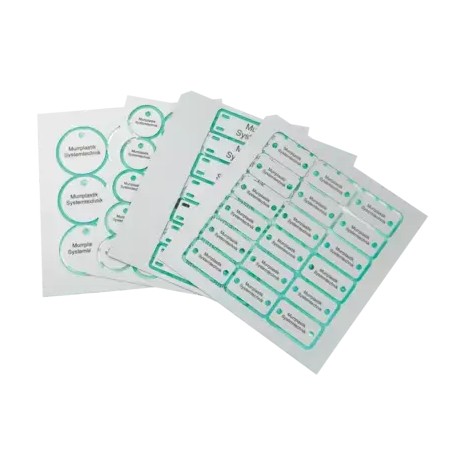

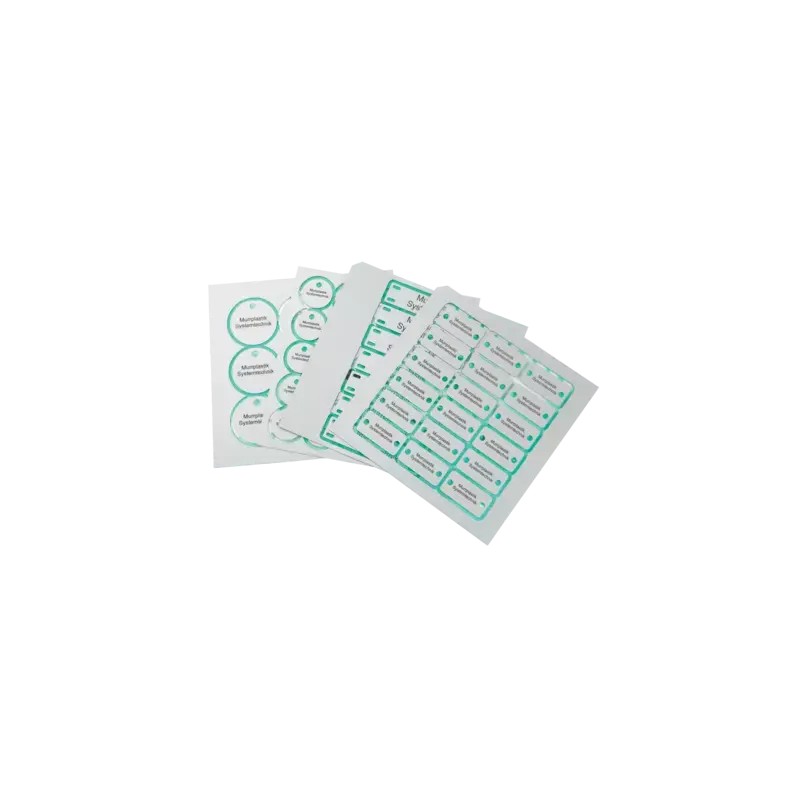

8610140092 MURRPLASTIK Labelling Rectangular with radius, 4x oblong hole Rectangular design with corner radi..
8610140092
MURRPLASTIK
24
Labelling Rectangular with radius, 4x oblong hole Rectangular design with corner radius and four slots Silver
LAM 60x12mm SI R2 HF 4xLL5x3mm MS1.0
LAM Rectangular with radius, 4x oblong hole
Marking systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲Laser Alumatt consists of coated aluminium, suitable for laser engraving.
The surface is coated for laser engraving.
After laser marking with a Murrplastik mp-LM series laser marking system the engraving appears in black.
Available in a material thickness of 0.5 mm or 1.0 mm.
A suction and filter unit is absolutely necessary to comply with legal regulations on health protection.
-20°C – 80°C, short term 120°C
Aluminium painted (ALU)
A1
| Type | Order No. | Colour | Material thickness mm | Printable area mm | No. characters/ lines | Hole patterns Number x Ø mm | No. per Frame | Software Type | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
Rectangular design with corner radius and four slots | |||||||||||
| LAM° 34x10 R1 HF, 4x (5,4x2MM) | 8610140010 | Silver | 0.5 | 18 x 10 | 10.0 / 2.0 | 4x (5,4x2,0) | 27 | LB0 | 108 | ||
| LAM° 40x12 R1,5 HF, 4x (5x3MM) | 8610140007 | Silver | 0.5 | 23 x 12 | 12.0 / 3.0 | 4x (5,0x3,0) | 16 | LA7 | 64 | ||
| LAM° 44x10 R1 HF, 4x (5,4x2MM) | 8610140009 | Silver | 0.5 | 28 x 10 | 15.0 / 2.0 | 4x (5,4x2,0) | 18 | LA9 | 72 | ||
| LAM 52x18 R2 HF, 4x (4x3MM) | 8610140088 | Silver | 1 | 35.6 x 18 | 19.0 / 5.0 | 4x (4,0x3,0) | 10 | L1W | 40 | ||
| LAM° 54x12 R1 HF, 4x (5,4x2MM) | 8610140008 | Silver | 0.5 | 38 x 12 | 21.0 / 3.0 | 4x (5,4x2,0) | 16 | LA8 | 64 | ||
| LAM 54x20 R2 HF, 4x (6x2.5MM) | 8610140059 | Silver | 0.5 | 33 x 20 | 18.0 / 5.0 | 4x (6,0x2,5) | 10 | LP4 | 40 | ||
| LAM 60x12 R2 HF, 4x (5x3MM) | 8610140092 | Silver | 1 | 36 x 12 | 20.0 / 3.0 | 4x (5,0x3,0) | 8 | L2A | 32 | ||
| LAM° 60x12 R2 HF, 4x (5x3MM) | 8610140001 | Silver | 0.5 | 42 x 12 | 23.0 / 3.0 | 4x (5,0x3,0) | 8 | LA1 | 32 | ||
| LAM° 60x17 R1,5 HF, 4x (7x3MM) | 8610140000 | Silver | 0.5 | 36 x 17 | 20.0 / 5.0 | 4x (7,0x3,0) | 6 | LA0 | 24 | ||
| LAM° 64x14 R1 HF, 4x (5,4x2MM) | 8610140011 | Silver | 0.5 | 48 x 14 | 26.0 / 4.0 | 4x (5,4x2,0) | 7 | LB1 | 28 | ||
| LAM° 68x10 R1 HF, 4x (5,4x2MM) | 8610140012 | Silver | 0.5 | 53 x 10 | 29.0 / 2.0 | 4x (5,4x2,0) | 9 | LB2 | 36 | ||
| LAM 80x20 R2 HF, 4x (6x2.5MM) | 8610140058 | Silver | 0.5 | 59 x 20 | 32.0 / 5.0 | 4x (6,0x2,5) | 5 | LP3 | 20 | ||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS LABELLING SYSTEMS EN.pdf | 8 Mbytes |
|
| 8610140092 8610140092 EN_8610140088.pdf | 776 Kbytes |
|
