View larger

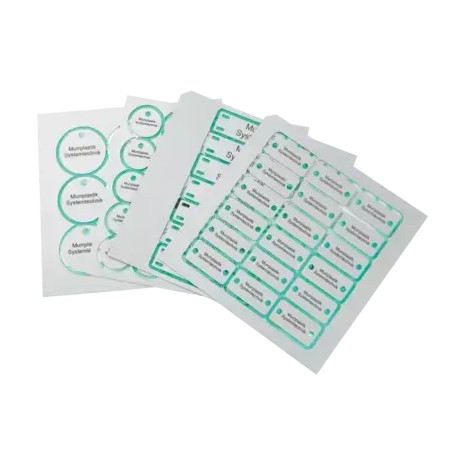

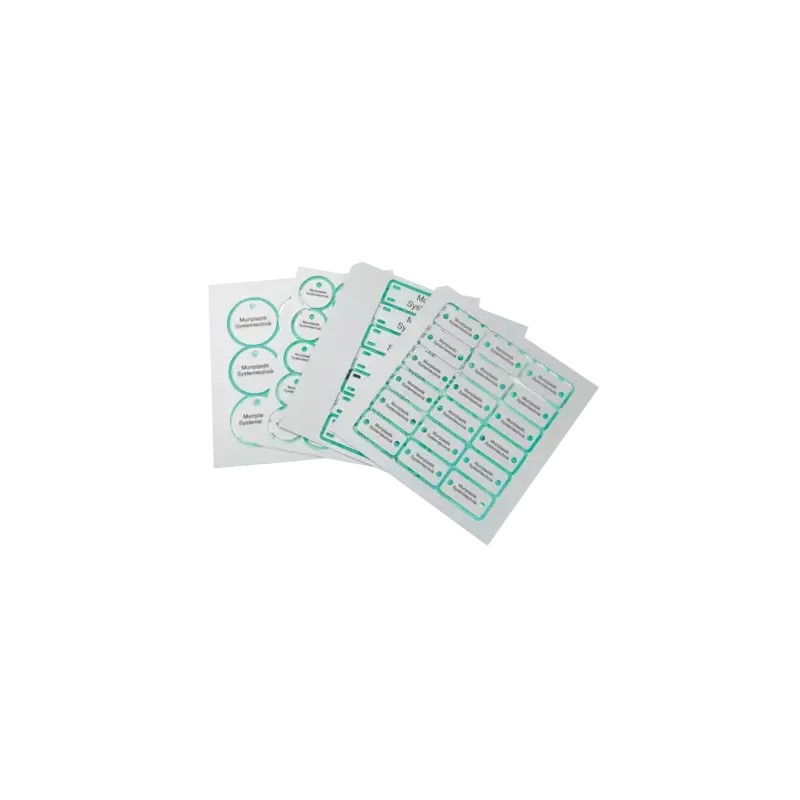

8610140087 MURRPLASTIK Labelling Rectangular without radius, 4x hole Rectangular design, with four holes Sil..
8610140087
MURRPLASTIK
4
Labelling Rectangular without radius, 4x hole Rectangular design, with four holes Silver
LAM 52x18mm SI R2 HF 4xLL4x3mm MS1.0
Rectangular without radius, 4x hole
Marking systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲Laser Alumatt consists of coated aluminium, suitable for laser engraving.
The surface is coated for laser engraving.
After laser marking with a Murrplastik mp-LM series laser marking system the engraving appears in black.
Available in a material thickness of 0.5 mm or 1.0 mm.
A suction and filter unit is absolutely necessary to comply with legal regulations on health protection.
-20°C – 80°C, short term 120°C
Aluminium painted (ALU)
A1
| Type | Order No. | Colour | Material thickness mm | Printable area mm | No. characters/ lines | Hole patterns Number x Ø mm | No. per Frame | Software Type | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
Rectangular design with four holes | |||||||||||
| LAM 30x15 HF, 4x3,2MM | 8610140108 | Silver | 0.5 | 14 x 15 | 7.0 / 4.0 | 4x 3.2 | 18 | L2Z | 72 | ||
| LAM° 52x37 HF, 4x3,2MM | 8610140022 | Silver | 0.5 | 39.6 x 37 | 22.0 / 10.0 | 4x 3.2 | 6 | LF5 | 24 | ||
| LAM 61,5x61,5 HF, 4x3,5MM | 8610140098 | Silver | 0.5 | 44 x 61.5 | 24.0 / 18.0 | 4x 3.5 | 1 | L2P | 4 | ||
| LAM° 74x52 SK, 4x2,6MM | 8610140050 | Silver | 0.5 | 59 x 52 | 32.0 / 15.0 | 4x 2.6 | 2 | LL6 | 8 | ||
| LAM 80x27 HF, 4x3,5MM | 8610140100 | Silver | 0.5 | 62.5 x 27 | 34.0 / 7.0 | 4x 3.5 | 4 | L2R | 16 | ||
| LAM 80x35 HF, 4x2,0MM | 8610140189 | Silver | 1 | 70 x 35 | 38.0 / 10.0 | 4x 2.0 | 3 | MJ7 | 12 | ||
| LAM 96x98 HF, 4x3,5MM | 8610140147 | Silver | 1 | 81 x 98 | 45.0 / 28.0 | 4x 3.5 | 1 | L7P | 4 | ||
| LAM 100x50 HF, 4x2,5MM | 8610140163 | Silver | 1 | 87.5 x 50 | 48.0 / 14.0 | 4x 2.5 | 2 | L9Z | 8 | ||
| LAM 100x50 HF, 4x4,0MM | 8610140087 | Silver | 0.5 | 84 x 50 | 46.0 / 14.0 | 4x 4.0 | 2 | L1P | 8 | ||
| LAM 100x50 HF, 4x4,0MM | 8610140150 | Silver | 1 | 84 x 50 | 46.0 / 14.0 | 4x 4.0 | 2 | L7S | 8 | ||
| LAM 105x52 HF, 4x3,0MM | 8610140230 | Silver | 1 | 90 x 52 | 50.0 / 15.0 | 4x 3.0 | 2 | MX5 | 8 | ||
| LAM 105x52 HF, 4x3,5MM | 8610140101 | Silver | 0.5 | 87.5 x 52 | 48.0 / 15.0 | 4x 3.5 | 2 | L2S | 8 | ||
| LAM 105x65 HF, 4x3,0MM | 8610140202 | Silver | 0.5 | 92 x 65 | 51.0 / 19.0 | 4x 3.0 | 1 | MP3 | 10 | ||
| LAM 105x86 HF, 4x3,0MM | 8610140203 | Silver | 0.5 | 92 x 86 | 51.0 / 25.0 | 4x 3.0 | 1 | MP4 | 10 | ||
| LAM 110x70 HF, 4x3,0MM | 8610140107 | Silver | 1 | 96 x 70 | 53.0 / 20.0 | 4x 3.0 | 1 | L2Y | 4 | ||
| LAM 120x20 HF, 4x3,5MM | 8610140102 | Silver | 0.5 | 102.5 x 20 | 56.0 / 5.0 | 4x 3.5 | 5 | L2T | 20 | ||
| LAM 120x55 HF, 4x3,5MM | 8610140103 | Silver | 0.5 | 102.5 x 55 | 56.0 / 16.0 | 4x 3.5 | 2 | L2U | 8 | ||
| LAM 120x60 HF, 4x2,0MM | 8610140249 | Silver | 0.5 | 109 x 60 | 60.0 / 17.0 | 4x 2.0 | 1 | ND7 | 4 | ||
| LAM 120x70 HF, 4x3,5MM | 8610140104 | Silver | 0.5 | 102.5 x 70 | 56.0 / 20.0 | 4x 3.5 | 1 | L2V | 4 | ||
| LAM 120x80 HF, 4x2,0MM | 8610140191 | Silver | 1 | 110 x 80 | 61.0 / 23.0 | 4x 2.0 | 1 | MJ9 | 4 | ||
| LAM 120x100 HF, 4x3,0MM | 8610140252 | Silver | 1 | 105 x 100 | 58.0 / 29.0 | 4x 3.0 | 1 | NE8 | 4 | ||
| LAM 120x120 HF, 4x2,0MM | 8610140248 | Silver | 0.5 | 109 x 120 | 60.0 / 35.0 | 4x 2.0 | 1 | ND6 | 4 | ||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS LABELLING SYSTEMS EN.pdf | 8 Mbytes |
|
| 8610140087 8610140087 EN_8610140087.pdf | 898 Kbytes |
|
