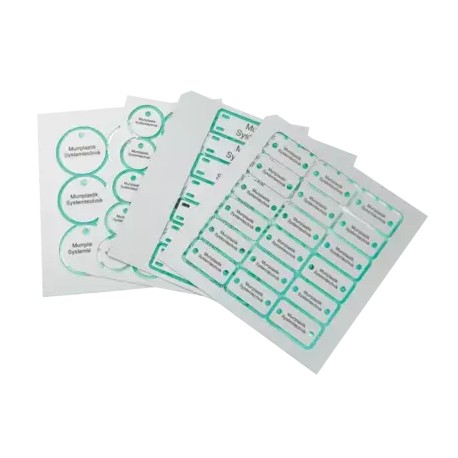

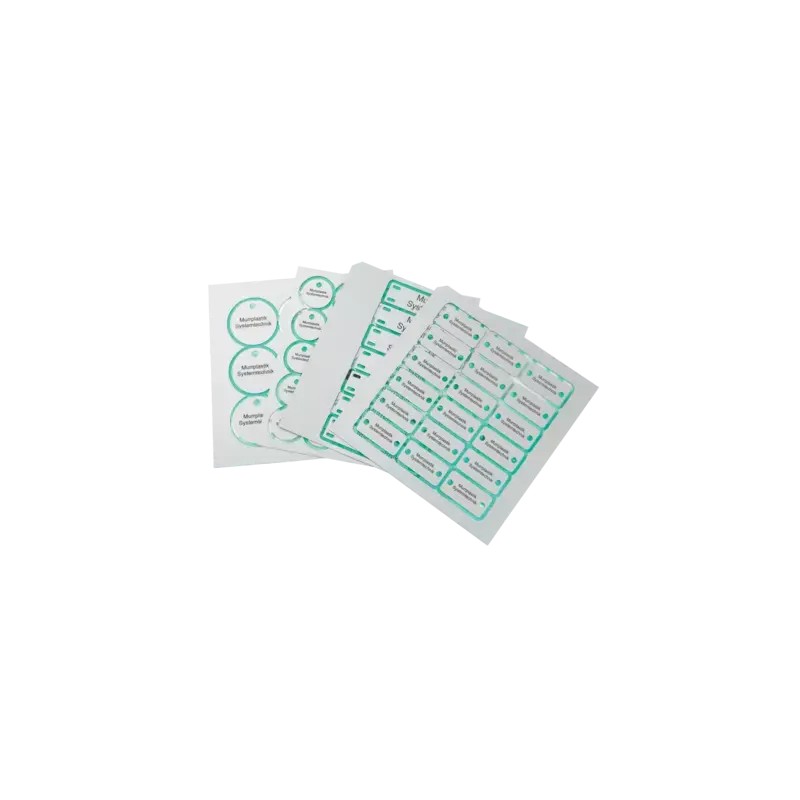

8610140086 MURRPLASTIK Labelling Rectangular with radius, 2x hole Rectangular design with corner radius and ..
8610140086
MURRPLASTIK
72
Labelling Rectangular with radius, 2x hole Rectangular design with corner radius and two holes Silver
LAM 36x10 SI R2 HF 2x2.5 MS0.5
Rectangular with radius, 2x hole
Marking systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲Laser Alumatt consists of coated aluminium, suitable for laser engraving.
The surface is coated for laser engraving.
After laser marking with a Murrplastik mp-LM series laser marking system the engraving appears in black.
Available in a material thickness of 0.5 mm or 1.0 mm.
A suction and filter unit is absolutely necessary to comply with legal regulations on health protection.
-20°C – 80°C, short term 120°C
Aluminium painted (ALU)
A1
| Type | Order No. | Colour | Material thickness mm | Printable area mm | No. characters/ lines | Hole patterns Number x Ø mm | No. per Frame | Software Type | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
Rectangular design with corner radius and two holes | |||||||||||
| LAM 27x18 R2 SK, 2x3,0MM | 8610140157 | Silver | 1 | 12 x 18 | 6.0 / 5.0 | 2x 3.0 | 15 | L9A | 60 | ||
| LAM 30x8 R2 HF, 2x3,0MM | 8610140201 | Silver | 1 | 18.4 x 8 | 10.0 / 2.0 | 2x 3.0 | 33 | MP2 | 132 | ||
| LAM 30x10 R1 SK, 2x2,5MM | 8610140124 | Silver | 0.5 | 17.5 x 10 | 9.0 / 2.0 | 2x 2.5 | 27 | L5H | 108 | ||
| LAM 30x10 R1 SK, 2x2,5MM | 8610140119 | Silver | 1 | 17.5 x 10 | 9.0 / 2.0 | 2x 2.5 | 27 | L4R | 108 | ||
| LAM 30x10 R2 HF, 2x2,5MM | 8610140155 | Silver | 1 | 20 x 10 | 11.0 / 2.0 | 2x 2.5 | 27 | L8W | 108 | ||
| LAM 30x15 R2 HF, 2x2,2MM | 8610140151 | Silver | 0.5 | 19 x 15 | 10.0 / 4.0 | 2x 2.2 | 18 | L8K | 72 | ||
| LAM 30x15 R2 HF, 2x2,8MM | 8610140178 | Silver | 1 | 16 x 15 | 8.0 / 4.0 | 2x 2.8 | 18 | MF6 | 72 | ||
| LAM° 30x15 R2 HF, 2x3,5MM | 8610140002 | Silver | 0.5 | 17 x 15 | 9.0 / 4.0 | 2x 3.5 | 18 | LA2 | 72 | ||
| LAM° 30x15 R2 HF, 2x 3,5MM | 8610140089 | Silver | 1 | 12.5 x 15 | 6.0 / 4.0 | 2x 3.5 | 18 | L1X | 72 | ||
| LAM° 30x15 R2 HF, 2x3,5MM | 8610140137 | Silver | 1 | 16.5 x 15 | 9.0 / 4.0 | 2x 3.5 | 18 | L6Q | 72 | ||
| LAM° 30x15 R2 HF, 2x4,2MM | 8610140004 | Silver | 0.5 | 15 x 15 | 8.0 / 4.0 | 2x 4.2 | 18 | LA4 | 72 | ||
| LAM 35x7 R2 HF, 2x3,2MM | 8610140225 | Silver | 0.5 | 22.6 x 7 | 12.0 / 2.0 | 2x 3.2 | 36 | MX9 | 144 | ||
| LAM 35x12 R2 HF, 2x2,8MM | 8610140159 | Silver | 0.5 | 23.4 x 12 | 12.0 / 3.0 | 2x 2.8 | 24 | L9G | 96 | ||
| LAM 36x10 R2 HF, 2x2,5MM | 8610140086 | Silver | 0.5 | 23.5 x 10 | 13.0 / 2.0 | 2x 2.5 | 18 | L1O | 72 | ||
| LAM 36x10 R2 HF, 2x2,5MM | 8610140149 | Silver | 1 | 23.5 x 10 | 13.0 / 2.0 | 2x 2.5 | 18 | L7R | 72 | ||
| LAM 37x13 R2 HF, 2x2,6MM | 8610140085 | Silver | 0.5 | 24.8 x 13 | 13.0 / 3.0 | 2x 2.6 | 16 | L0V | 64 | ||
| LAM 37x13 R2 HF, 2x2,6MM | 8610140062 | Silver | 0.5 | 24 x 13 | 13.0 / 3.0 | 2x 2.6 | 16 | LQ4 | 64 | ||
| LAM 37x13 R2 SK, 2x2.6MM | 8610140047 | Silver | 0.5 | 25 x 13 | 13.0 / 3.0 | 2x 2.6 | 16 | LK7 | 64 | ||
| LAM 37x13 R2 HF, 2x3,2MM | 8610140236 | Silver | 0.5 | 22.6 x 13 | 12.0 / 3.0 | 2x 3.2 | 14 | MY2 | 56 | ||
| LAM 37x13 R2 HF, 2x3,2MM | 8610140131 | Silver | 0.5 | 23.6 x 13 | 13.0 / 3.0 | 2x 3.2 | 14 | L5T | 56 | ||
| LAM 40x15 R2,5 HF, 2x3,2MM | 8610140218 | Silver | 1 | 23.6 x 15 | 13.0 / 4.0 | 2x 3.2 | 12 | MU6 | 48 | ||
| LAM 40x15 R2 HF, 2x4,0MM | 8610140233 | Silver | 1 | 26 x 15 | 14.0 / 4.0 | 2x 4.0 | 12 | MX8 | 48 | ||
| LAM 40x15 R1 SK, 2x3,0MM | 8610140257 | Silver | 0.5 | 25 x 15 | 13.0 / 4.0 | 2x 3.0 | 12 | NG5 | 48 | ||
| LAM° 41x16 R2,5 HF, 2x3,2MM | 8610140023 | Silver | 0.5 | 28.6 x 16 | 15.0 / 4.0 | 2x 3.2 | 12 | LF6 | 48 | ||
| LAM° 41x16 R2,5 HF, 2x3,2MM | 8610140116 | Silver | 1 | 25 x 16 | 13.0 / 4.0 | 2x 3.2 | 12 | L4F | 48 | ||
| LAM 43x36 R2 HF, 2x3,0MM | 8610140067 | Silver | 0.5 | 31 x 36 | 17.0 / 10.0 | 2x 3.0 | 6 | LV5 | 24 | ||
| LAM° 45x10 R2 HF, 2x2,5MM | 8610140045 | Silver | 0.5 | 32.4 x 10 | 18.0 / 2.0 | 2x 2.5 | 20 | LI9 | 80 | ||
| LAM 45x10 R2 HF, 2x2,5MM | 8610140168 | Silver | 0.5 | 30 x 10 | 16.0 / 2.0 | 2x 2.5 | 18 | MB0 | 72 | ||
| LAM 45x25 R2 HF, 2x2,2MM | 8610140154 | Silver | 0.5 | 34 x 25 | 18.0 / 7.0 | 2x 2.2 | 8 | L8N | 32 | ||
| LAM° 45x25 R1,5 HF, 2x2,7MM | 8610140080 | Silver | 0.5 | 31.6 x 25 | 17.0 / 7.0 | 2x 2.7 | 8 | L0K | 32 | ||
| LAM 50x8 R2 HF, 2x3,0MM | 8610140239 | Silver | 1 | 38 x 8 | 21.0 / 2.0 | 2x 3.0 | 22 | MZ4 | 88 | ||
| LAM° 50x15 R2 HF, 2x3,0MM | 8610140003 | Silver | 0.5 | 36 x 15 | 20.0 / 4.0 | 2x 3.0 | 12 | LA3 | 48 | ||
| LAM 50x15 R2 HF, 2x3,5MM | 8610140078 | Silver | 0.5 | 37 x 15 | 20.0 / 4.0 | 2x 3.5 | 14 | LY7 | 56 | ||
| LAM° 50x15 R2 HF, 2x3,5MM | 8610140090 | Silver | 1 | 32.5 x 15 | 18.0 / 4.0 | 2x 3.5 | 12 | L1Y | 48 | ||
| LAM° 50x15 R2 HF, 2x3,5MM | 8610140028 | Silver | 0.5 | 35 x 15 | 19.0 / 4.0 | 2x 3.5 | 12 | LG1 | 48 | ||
| LAM 50x15 R2 HF, 2x3,5MM | 8610140143 | Silver | 1 | 37 x 15 | 20.0 / 4.0 | 2x 3.5 | 12 | L7C | 48 | ||
| LAM° 50x15 R2 HF, 2x4,2MM | 8610140005 | Silver | 0.5 | 34 x 15 | 18.0 / 4.0 | 2x 4.2 | 12 | LA5 | 48 | ||
| LAM 50x15 R2 HF, 2x4,2MM | 8610140242 | Silver | 1 | 29 x 15 | 16.0 / 4.0 | 2x 4.2 | 12 | NB2 | 48 | ||
| LAM 52x18 R2 HF, 2x2,2MM | 8610140153 | Silver | 0.5 | 41 x 18 | 22.0 / 5.0 | 2x 2.2 | 10 | L8M | 40 | ||
| LAM 52x18 R1 SK, 2x2,5MM | 8610140123 | Silver | 0.5 | 39.5 x 18 | 21.0 / 5.0 | 2x 2.5 | 10 | L5I | 40 | ||
| LAM° 52x18 R2 HF, 2x2,8MM | 8610140006 | Silver | 0.5 | 38 x 18 | 21.0 / 5.0 | 2x 2.8 | 10 | LA6 | 40 | ||
| LAM 52x18 R2 HF, 2x3,2MM | 8610140118 | Silver | 0.5 | 36 x 18 | 20.0 / 5.0 | 2x 3.2 | 10 | L4Q | 40 | ||
| LAM 52x18 R2 SK, 2x3,2MM | 8610140185 | Silver | 0.5 | 36 x 18 | 20.0 / 5.0 | 2x 3.2 | 10 | MI7 | 40 | ||
| LAM 65x20 R2.5 HF, 2x3.2MM | 8610140219 | Silver | 1 | 48.6 x 20 | 27.0 / 5.0 | 2x 3.2 | 5 | MU7 | 20 | ||
| LAM 70x7 R2 HF, 2x3,2MM | 8610140234 | Silver | 0.5 | 57.6 x 7 | 32.0 / 2.0 | 2x 3.2 | 12 | MY0 | 48 | ||
| LAM 70x15 R2 HF, 2x4,2MM | 8610140179 | Silver | 1 | 49 x 15 | 27.0 / 4.0 | 2x 4.2 | 6 | MG8 | 24 | ||
| LAM 70x16 R2 SKS, 2x3,3MM | 8610140167 | Silver | 1 | 53.4 x 16 | 29.0 / 4.0 | 2x 3.3 | 6 | MA9 | 24 | ||
| LAM 70x18 R2 HF, 2x2,8MM | 8610140193 | Silver | 0.5 | 56.4 x 18 | 31.0 / 5.0 | 2x 2.8 | 5 | MK7 | 20 | ||
| LAM 70x26 R2 HF, 2x2,8MM | 8610140194 | Silver | 0.5 | 56.4 x 26 | 31.0 / 7.0 | 2x 2.8 | 4 | MK8 | 16 | ||
| LAM° 70x27 R2 HF, 2x3,3MM | 8610140039 | Silver | 0.5 | 55.4 x 27 | 30.0 / 7.0 | 2x 3.3 | 4 | LH3 | 16 | ||
| LAM 80x15 R2 HF, 2x4,0MM | 8610140091 | Silver | 1 | 60 x 15 | 33.0 / 4.0 | 2x 4.0 | 6 | L1Z | 24 | ||
| LAM° 80x15 R2 HF, 2x4,0MM | 8610140027 | Silver | 0.5 | 62 x 15 | 34.0 / 4.0 | 2x 4.0 | 6 | LG0 | 24 | ||
| LAM 80x35 R2 SK, 2x2,5MM | 8610140183 | Silver | 1 | 67.5 x 35 | 37.0 / 10.0 | 2x 2.5 | 3 | MI5 | 12 | ||
| LAM 100x20 R2 HF, 2x3,3MM | 8610140261 | Silver | 0.5 | 85.4 x 20 | 47.0 / 5.0 | 2x 3.3 | 5 | NH8 | 20 | ||
| LAM 100x40 R2 HF, 2x2,7MM | 8610140081 | Silver | 0.5 | 82.6 x 40 | 45.0 / 11.0 | 2x 2.7 | 2 | L0L | 8 | ||
| LAM 105x52 R2 HF, 2x2,2MM | 8610140152 | Silver | 0.5 | 94 x 52 | 52.0 / 15.0 | 2x 2.2 | 2 | L8L | 8 | ||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS LABELLING SYSTEMS EN.pdf | 8 Mbytes |
|
| 8610140086 8610140086 EN_8610140081.pdf | 990 Kbytes |
|
