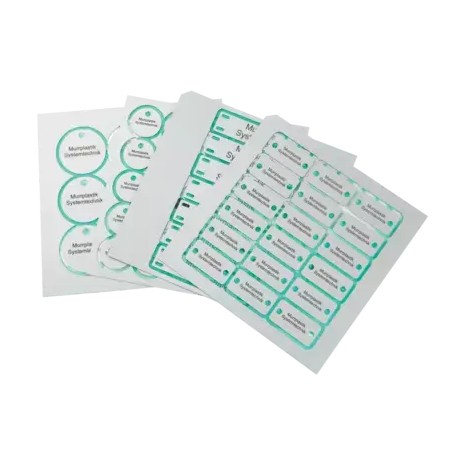

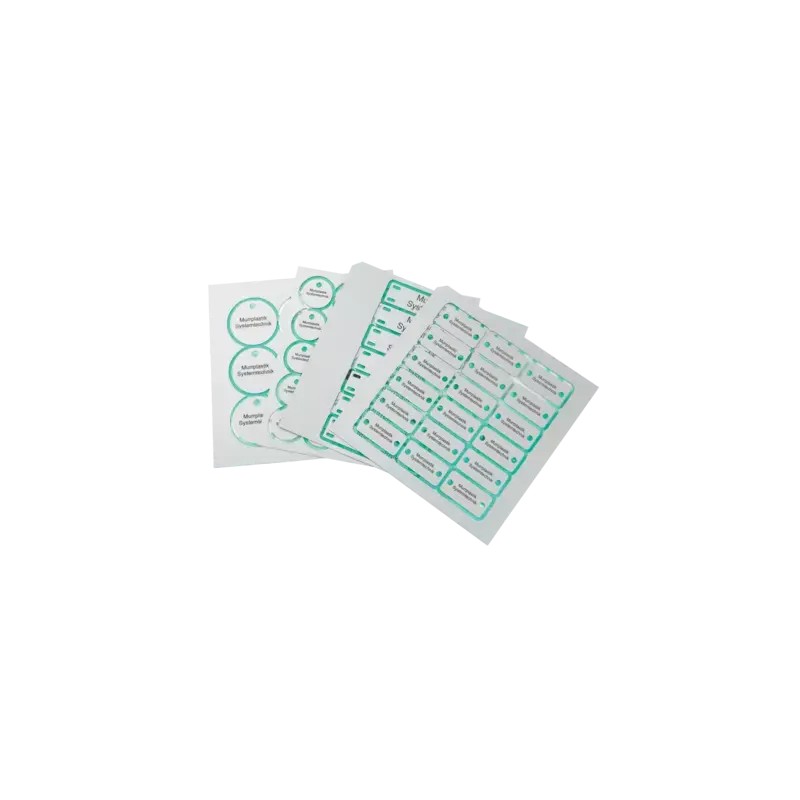

8610140042 MURRPLASTIK Labelling Rectangular with radius, 4x hole Rectangular design with corner radius and ..
Reference: 8610140042
Manufacturer: MURRPLASTIK
Description:
Labelling Rectangular with radius, 4x hole Rectangular design with corner radius and four holes Silver
LAM 85x65 SI R2 HF 4x4 MS0.5 (E)
LAM Rectangular with radius, 4x hole
Categories:
- MURRPLASTIK > Marking systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
- More Info
- Reviews
MORE INFO
Laser Alumatt consists of coated aluminium, suitable for laser engraving.
The surface is coated for laser engraving.
After laser marking with a Murrplastik mp-LM series laser marking system the engraving appears in black.
Available in a material thickness of 0.5 mm or 1.0 mm.
A suction and filter unit is absolutely necessary to comply with legal regulations on health protection.
-20°C – 80°C, short term 120°C
Aluminium painted (ALU)
A1
| Type | Order No. | Colour | Material thickness mm | Printable area mm | No. characters/ lines | Hole patterns Number x Ø mm | No. per Frame | Software Type | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
Rectangular design with corner radius and four holes | |||||||||||
| LAM 30x15 R2 HF, 4x3,2MM | 8610140136 | Silver | 0.5 | 14 x 15 | 7.0 / 4.0 | 4x 3.2 | 18 | L6P | 72 | ||
| LAM 80x19,9 R2 HF, 4x3,2MM | 8610140237 | Silver | 0.5 | 65.6 x 19.9 | 36.0 / 5.0 | 4x 3.2 | 5 | MY3 | 20 | ||
| LAM 80x40 R2 HF, 4x3,2MM | 8610140235 | Silver | 0.5 | 65.6 x 40 | 36.0 / 11.0 | 4x 3.2 | 2 | MY1 | 8 | ||
| LAM 85x65 R2 HF, 4x4,0MM | 8610140042 | Silver | 0.5 | 67 x 65 | 37.0 / 19.0 | 4x 4.0 | 1 | LH6 | 4 | ||
| LAM 100x40 R2 HF, 4x3,3MM | 8610140040 | Silver | 0.5 | 85.4 x 40 | 47.0 / 11.0 | 4x 3.3 | 1 | LH4 | 4 | ||
| LAM° 100x60 R2 HF, 4x3,3MM | 8610140041 | Silver | 0.5 | 85.4 x 60 | 47.0 / 17.0 | 4x 3.3 | 1 | LH5 | 4 | ||
| LAM 100x60 R2 SKS, 4x3,3MM | 8610140165 | Silver | 0.5 | 85.4 x 60 | 47.0 / 17.0 | 4x 3.3 | 1 | MA6 | 4 | ||
| LAM 100x60 R5 SK, 4x3,7MM | 8610140070 | Silver | 0.5 | 81.5 x 60 | 45.0 / 17.0 | 4x 3.7 | 1 | LW9 | 4 | ||
| LAM 100x100 R5 HF, 4x5,0MM | 8610140125 | Silver | 0.5 | 75 x 100 | 41.0 / 29.0 | 4x 5.0 | 1 | L5M | 4 | ||
| LAM 105x96 R2,5 HF, 4x3,3MM | 8610140171 | Silver | 1 | 92.4 x 96 | 51.0 / 28.0 | 4x 3.3 | 1 | MB8 | 4 | ||
| LAM 105x105 R2,5 HF, 4x3,6MM | 8610140204 | Silver | 1 | 77.8 x 105 | 43.0 / 30.0 | 4x 2.5 | 1 | MQ5 | 4 | ||
| LAM 116x116 R2 SK, 4x2,5MM | 8610140182 | Silver | 1 | 103.5 x 116 | 57.0 / 34.0 | 4x 2.5 | 1 | MI4 | 4 | ||
| LAM° 120x70 R2 HF, 4x3,5MM | 8610140066 | Silver | 0.5 | 102.5 x 70 | 56.0 / 20.0 | 4x 3.5 | 1 | LT3 | 4 | ||
| LAM 120x80 R2 SK, 4x2,5MM | 8610140181 | Silver | 1 | 107.5 x 80 | 59.0 / 23.0 | 4x 2.5 | 1 | MI3 | 4 | ||
