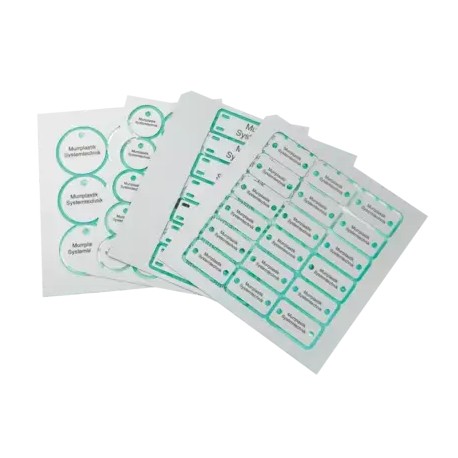

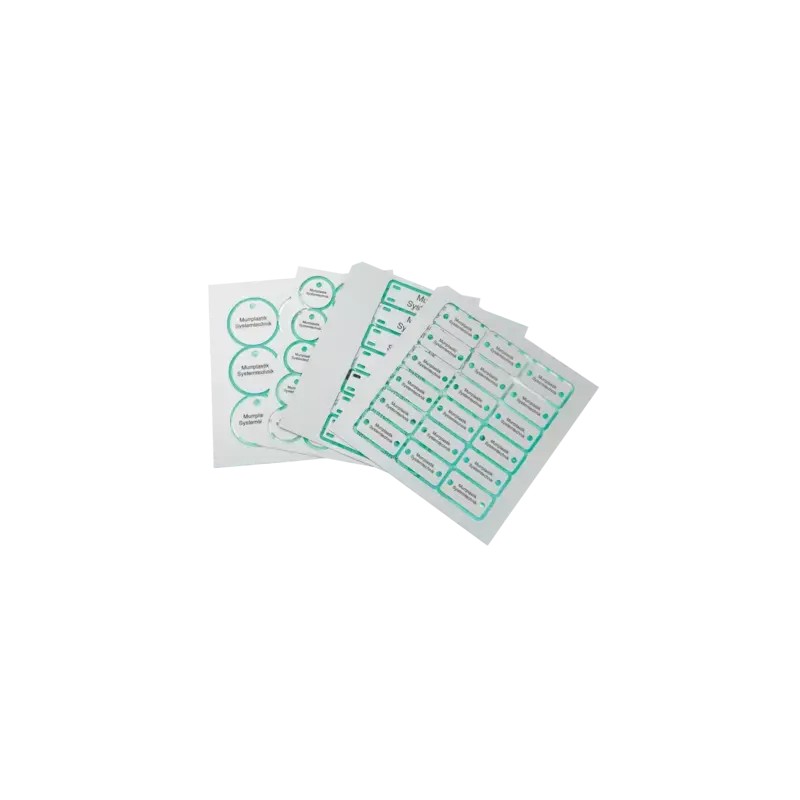

8610140040 MURRPLASTIK Labelling Rectangular with radius, 4x hole Rectangular design with corner radius and ..
8610140040
MURRPLASTIK
4
Labelling Rectangular with radius, 4x hole Rectangular design with corner radius and four holes Silver
LAM 100x40 SI R2 HF 4x3.3 MS0.5 (E)
LAM Rectangular with radius, 4x hole
Marking systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲Laser Alumatt consists of coated aluminium, suitable for laser engraving.
The surface is coated for laser engraving.
After laser marking with a Murrplastik mp-LM series laser marking system the engraving appears in black.
Available in a material thickness of 0.5 mm or 1.0 mm.
A suction and filter unit is absolutely necessary to comply with legal regulations on health protection.
-20°C – 80°C, short term 120°C
Aluminium painted (ALU)
A1
| Type | Order No. | Colour | Material thickness mm | Printable area mm | No. characters/ lines | Hole patterns Number x Ø mm | No. per Frame | Software Type | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
Rectangular design with corner radius and four holes | |||||||||||
| LAM 30x15 R2 HF, 4x3,2MM | 8610140136 | Silver | 0.5 | 14 x 15 | 7.0 / 4.0 | 4x 3.2 | 18 | L6P | 72 | ||
| LAM 80x19,9 R2 HF, 4x3,2MM | 8610140237 | Silver | 0.5 | 65.6 x 19.9 | 36.0 / 5.0 | 4x 3.2 | 5 | MY3 | 20 | ||
| LAM 80x40 R2 HF, 4x3,2MM | 8610140235 | Silver | 0.5 | 65.6 x 40 | 36.0 / 11.0 | 4x 3.2 | 2 | MY1 | 8 | ||
| LAM 85x65 R2 HF, 4x4,0MM | 8610140042 | Silver | 0.5 | 67 x 65 | 37.0 / 19.0 | 4x 4.0 | 1 | LH6 | 4 | ||
| LAM 100x40 R2 HF, 4x3,3MM | 8610140040 | Silver | 0.5 | 85.4 x 40 | 47.0 / 11.0 | 4x 3.3 | 1 | LH4 | 4 | ||
| LAM° 100x60 R2 HF, 4x3,3MM | 8610140041 | Silver | 0.5 | 85.4 x 60 | 47.0 / 17.0 | 4x 3.3 | 1 | LH5 | 4 | ||
| LAM 100x60 R2 SKS, 4x3,3MM | 8610140165 | Silver | 0.5 | 85.4 x 60 | 47.0 / 17.0 | 4x 3.3 | 1 | MA6 | 4 | ||
| LAM 100x60 R5 SK, 4x3,7MM | 8610140070 | Silver | 0.5 | 81.5 x 60 | 45.0 / 17.0 | 4x 3.7 | 1 | LW9 | 4 | ||
| LAM 100x100 R5 HF, 4x5,0MM | 8610140125 | Silver | 0.5 | 75 x 100 | 41.0 / 29.0 | 4x 5.0 | 1 | L5M | 4 | ||
| LAM 105x96 R2,5 HF, 4x3,3MM | 8610140171 | Silver | 1 | 92.4 x 96 | 51.0 / 28.0 | 4x 3.3 | 1 | MB8 | 4 | ||
| LAM 105x105 R2,5 HF, 4x3,6MM | 8610140204 | Silver | 1 | 77.8 x 105 | 43.0 / 30.0 | 4x 2.5 | 1 | MQ5 | 4 | ||
| LAM 116x116 R2 SK, 4x2,5MM | 8610140182 | Silver | 1 | 103.5 x 116 | 57.0 / 34.0 | 4x 2.5 | 1 | MI4 | 4 | ||
| LAM° 120x70 R2 HF, 4x3,5MM | 8610140066 | Silver | 0.5 | 102.5 x 70 | 56.0 / 20.0 | 4x 3.5 | 1 | LT3 | 4 | ||
| LAM 120x80 R2 SK, 4x2,5MM | 8610140181 | Silver | 1 | 107.5 x 80 | 59.0 / 23.0 | 4x 2.5 | 1 | MI3 | 4 | ||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS LABELLING SYSTEMS EN.pdf | 8 Mbytes |
|
| 8610140040 8610140040 EN_8610140125.pdf | 888 Kbytes |
|
