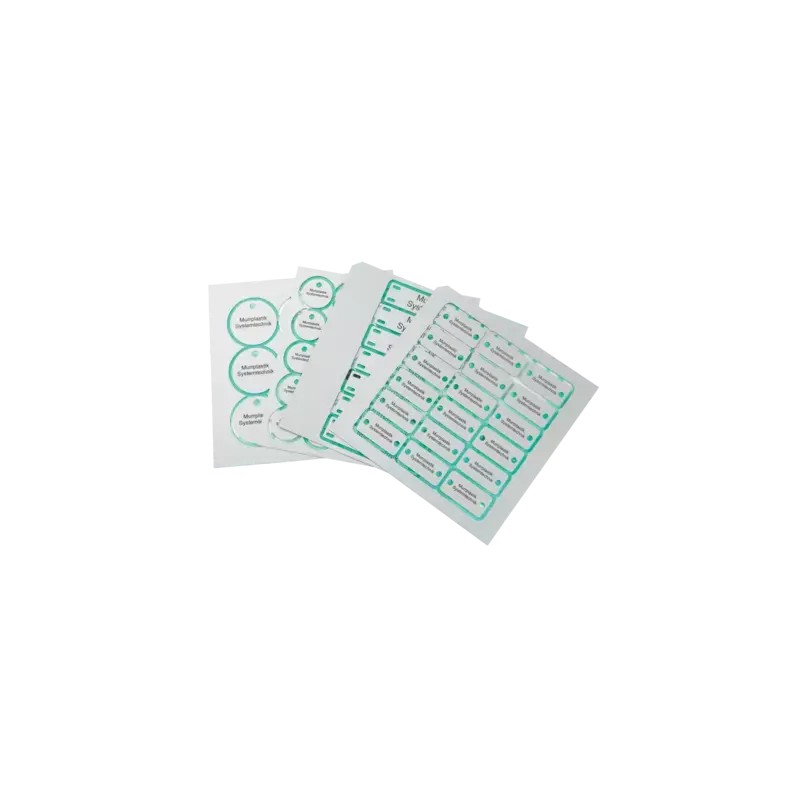

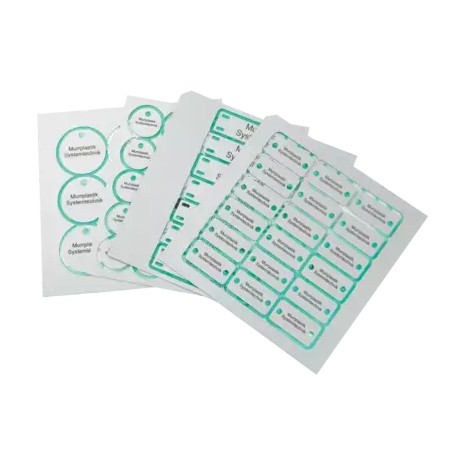

MURRPLASTIK 8610140023 8610140023 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

8610140023 MURRPLASTIK Labelling Rectangular with radius, 2x hole Rectangular design with corner radius and ..

Name: 8610140023 MURRPLASTIK Labelling Rectangular with radius, 2x hole Rectangular design with corner radius and ..
Brand: MURRPLASTIK
SKU: MUR8610140023
Price: 2.02 USD
Availability: OutOfStock

Reference: 8610140023

Manufacturer: MURRPLASTIK

Description:

Labelling Rectangular with radius, 2x hole Rectangular design with corner radius and two holes Silver

LAM 41x16 SI R2.5 HF 2x3.2 MS0.5

LAM Rectangular with radius, 2x hole

Categories:

MURRPLASTIK > Marking systems

Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

More Info
PDF
Reviews

Guarantee, repair and return.

Total: 86,68 €

Unit Price: 1,8058 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 7-9 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

Laser Alumatt consists of coated aluminium, suitable for laser engraving.

The surface is coated for laser engraving.

After laser marking with a Murrplastik mp-LM series laser marking system the engraving appears in black.

Available in a material thickness of 0.5 mm or 1.0 mm.

A suction and filter unit is absolutely necessary to comply with legal regulations on health protection.

-20°C – 80°C, short term 120°C

Aluminium painted (ALU)

	Type	Order No.	Colour	Material thickness mm	Printable area mm	No. characters/ lines	Hole patterns Number x Ø mm	No. per Frame	Software Type	MOQ qty.
Rectangular design with corner radius and two holes
	LAM 27x18 R2 SK, 2x3,0MM	8610140157	Silver	1	12 x 18	6.0 / 5.0	2x 3.0	15	L9A	60
	LAM 30x8 R2 HF, 2x3,0MM	8610140201	Silver	1	18.4 x 8	10.0 / 2.0	2x 3.0	33	MP2	132
	LAM 30x10 R1 SK, 2x2,5MM	8610140124	Silver	0.5	17.5 x 10	9.0 / 2.0	2x 2.5	27	L5H	108
	LAM 30x10 R1 SK, 2x2,5MM	8610140119	Silver	1	17.5 x 10	9.0 / 2.0	2x 2.5	27	L4R	108
	LAM 30x10 R2 HF, 2x2,5MM	8610140155	Silver	1	20 x 10	11.0 / 2.0	2x 2.5	27	L8W	108
	LAM 30x15 R2 HF, 2x2,2MM	8610140151	Silver	0.5	19 x 15	10.0 / 4.0	2x 2.2	18	L8K	72
	LAM 30x15 R2 HF, 2x2,8MM	8610140178	Silver	1	16 x 15	8.0 / 4.0	2x 2.8	18	MF6	72
	LAM° 30x15 R2 HF, 2x3,5MM	8610140002	Silver	0.5	17 x 15	9.0 / 4.0	2x 3.5	18	LA2	72
	LAM° 30x15 R2 HF, 2x 3,5MM	8610140089	Silver	1	12.5 x 15	6.0 / 4.0	2x 3.5	18	L1X	72
	LAM° 30x15 R2 HF, 2x3,5MM	8610140137	Silver	1	16.5 x 15	9.0 / 4.0	2x 3.5	18	L6Q	72
	LAM° 30x15 R2 HF, 2x4,2MM	8610140004	Silver	0.5	15 x 15	8.0 / 4.0	2x 4.2	18	LA4	72
	LAM 35x7 R2 HF, 2x3,2MM	8610140225	Silver	0.5	22.6 x 7	12.0 / 2.0	2x 3.2	36	MX9	144
	LAM 35x12 R2 HF, 2x2,8MM	8610140159	Silver	0.5	23.4 x 12	12.0 / 3.0	2x 2.8	24	L9G	96
	LAM 36x10 R2 HF, 2x2,5MM	8610140086	Silver	0.5	23.5 x 10	13.0 / 2.0	2x 2.5	18	L1O	72
	LAM 36x10 R2 HF, 2x2,5MM	8610140149	Silver	1	23.5 x 10	13.0 / 2.0	2x 2.5	18	L7R	72
	LAM 37x13 R2 HF, 2x2,6MM	8610140085	Silver	0.5	24.8 x 13	13.0 / 3.0	2x 2.6	16	L0V	64
	LAM 37x13 R2 HF, 2x2,6MM	8610140062	Silver	0.5	24 x 13	13.0 / 3.0	2x 2.6	16	LQ4	64
	LAM 37x13 R2 SK, 2x2.6MM	8610140047	Silver	0.5	25 x 13	13.0 / 3.0	2x 2.6	16	LK7	64
	LAM 37x13 R2 HF, 2x3,2MM	8610140236	Silver	0.5	22.6 x 13	12.0 / 3.0	2x 3.2	14	MY2	56
	LAM 37x13 R2 HF, 2x3,2MM	8610140131	Silver	0.5	23.6 x 13	13.0 / 3.0	2x 3.2	14	L5T	56
	LAM 40x15 R2,5 HF, 2x3,2MM	8610140218	Silver	1	23.6 x 15	13.0 / 4.0	2x 3.2	12	MU6	48
	LAM 40x15 R2 HF, 2x4,0MM	8610140233	Silver	1	26 x 15	14.0 / 4.0	2x 4.0	12	MX8	48
	LAM 40x15 R1 SK, 2x3,0MM	8610140257	Silver	0.5	25 x 15	13.0 / 4.0	2x 3.0	12	NG5	48
	LAM° 41x16 R2,5 HF, 2x3,2MM	8610140023	Silver	0.5	28.6 x 16	15.0 / 4.0	2x 3.2	12	LF6	48
	LAM° 41x16 R2,5 HF, 2x3,2MM	8610140116	Silver	1	25 x 16	13.0 / 4.0	2x 3.2	12	L4F	48
	LAM 43x36 R2 HF, 2x3,0MM	8610140067	Silver	0.5	31 x 36	17.0 / 10.0	2x 3.0	6	LV5	24
	LAM° 45x10 R2 HF, 2x2,5MM	8610140045	Silver	0.5	32.4 x 10	18.0 / 2.0	2x 2.5	20	LI9	80
	LAM 45x10 R2 HF, 2x2,5MM	8610140168	Silver	0.5	30 x 10	16.0 / 2.0	2x 2.5	18	MB0	72
	LAM 45x25 R2 HF, 2x2,2MM	8610140154	Silver	0.5	34 x 25	18.0 / 7.0	2x 2.2	8	L8N	32
	LAM° 45x25 R1,5 HF, 2x2,7MM	8610140080	Silver	0.5	31.6 x 25	17.0 / 7.0	2x 2.7	8	L0K	32
	LAM 50x8 R2 HF, 2x3,0MM	8610140239	Silver	1	38 x 8	21.0 / 2.0	2x 3.0	22	MZ4	88
	LAM° 50x15 R2 HF, 2x3,0MM	8610140003	Silver	0.5	36 x 15	20.0 / 4.0	2x 3.0	12	LA3	48
	LAM 50x15 R2 HF, 2x3,5MM	8610140078	Silver	0.5	37 x 15	20.0 / 4.0	2x 3.5	14	LY7	56
	LAM° 50x15 R2 HF, 2x3,5MM	8610140090	Silver	1	32.5 x 15	18.0 / 4.0	2x 3.5	12	L1Y	48
	LAM° 50x15 R2 HF, 2x3,5MM	8610140028	Silver	0.5	35 x 15	19.0 / 4.0	2x 3.5	12	LG1	48
	LAM 50x15 R2 HF, 2x3,5MM	8610140143	Silver	1	37 x 15	20.0 / 4.0	2x 3.5	12	L7C	48
	LAM° 50x15 R2 HF, 2x4,2MM	8610140005	Silver	0.5	34 x 15	18.0 / 4.0	2x 4.2	12	LA5	48
	LAM 50x15 R2 HF, 2x4,2MM	8610140242	Silver	1	29 x 15	16.0 / 4.0	2x 4.2	12	NB2	48
	LAM 52x18 R2 HF, 2x2,2MM	8610140153	Silver	0.5	41 x 18	22.0 / 5.0	2x 2.2	10	L8M	40
	LAM 52x18 R1 SK, 2x2,5MM	8610140123	Silver	0.5	39.5 x 18	21.0 / 5.0	2x 2.5	10	L5I	40
	LAM° 52x18 R2 HF, 2x2,8MM	8610140006	Silver	0.5	38 x 18	21.0 / 5.0	2x 2.8	10	LA6	40
	LAM 52x18 R2 HF, 2x3,2MM	8610140118	Silver	0.5	36 x 18	20.0 / 5.0	2x 3.2	10	L4Q	40
	LAM 52x18 R2 SK, 2x3,2MM	8610140185	Silver	0.5	36 x 18	20.0 / 5.0	2x 3.2	10	MI7	40
	LAM 65x20 R2.5 HF, 2x3.2MM	8610140219	Silver	1	48.6 x 20	27.0 / 5.0	2x 3.2	5	MU7	20
	LAM 70x7 R2 HF, 2x3,2MM	8610140234	Silver	0.5	57.6 x 7	32.0 / 2.0	2x 3.2	12	MY0	48
	LAM 70x15 R2 HF, 2x4,2MM	8610140179	Silver	1	49 x 15	27.0 / 4.0	2x 4.2	6	MG8	24
	LAM 70x16 R2 SKS, 2x3,3MM	8610140167	Silver	1	53.4 x 16	29.0 / 4.0	2x 3.3	6	MA9	24
	LAM 70x18 R2 HF, 2x2,8MM	8610140193	Silver	0.5	56.4 x 18	31.0 / 5.0	2x 2.8	5	MK7	20
	LAM 70x26 R2 HF, 2x2,8MM	8610140194	Silver	0.5	56.4 x 26	31.0 / 7.0	2x 2.8	4	MK8	16
	LAM° 70x27 R2 HF, 2x3,3MM	8610140039	Silver	0.5	55.4 x 27	30.0 / 7.0	2x 3.3	4	LH3	16
	LAM 80x15 R2 HF, 2x4,0MM	8610140091	Silver	1	60 x 15	33.0 / 4.0	2x 4.0	6	L1Z	24
	LAM° 80x15 R2 HF, 2x4,0MM	8610140027	Silver	0.5	62 x 15	34.0 / 4.0	2x 4.0	6	LG0	24
	LAM 80x35 R2 SK, 2x2,5MM	8610140183	Silver	1	67.5 x 35	37.0 / 10.0	2x 2.5	3	MI5	12
	LAM 100x20 R2 HF, 2x3,3MM	8610140261	Silver	0.5	85.4 x 20	47.0 / 5.0	2x 3.3	5	NH8	20
	LAM 100x40 R2 HF, 2x2,7MM	8610140081	Silver	0.5	82.6 x 40	45.0 / 11.0	2x 2.7	2	L0L	8
	LAM 105x52 R2 HF, 2x2,2MM	8610140152	Silver	0.5	94 x 52	52.0 / 15.0	2x 2.2	2	L8L	8
