MURRPLASTIKMarking systems8610140010 MURRPLASTIK Labelling Rectangular with radius, 4x oblong hole Rectangular design with corner radi..

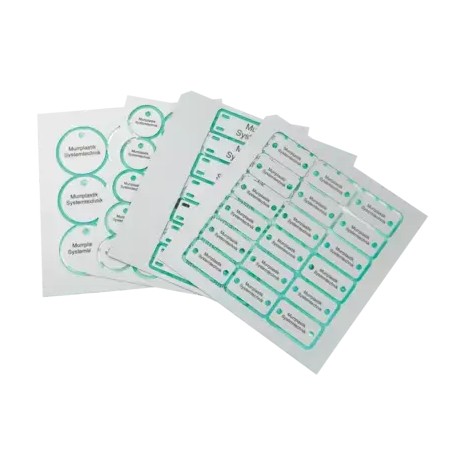

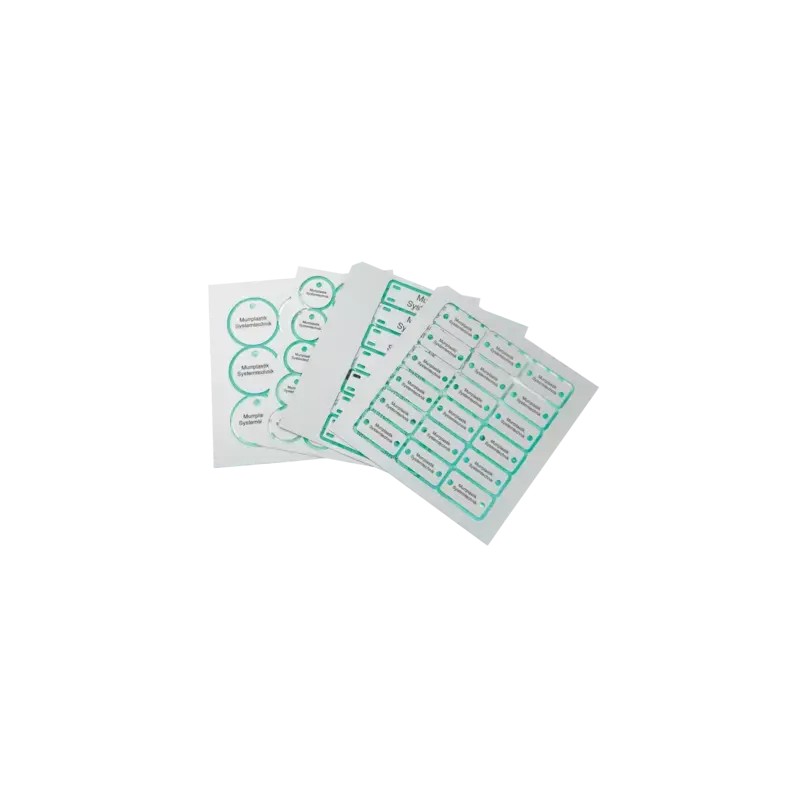

MURRPLASTIK 8610140010 8610140010 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

8610140010 MURRPLASTIK Labelling Rectangular with radius, 4x oblong hole Rectangular design with corner radi..

Reference: 8610140010

Manufacturer: MURRPLASTIK

Description:

Labelling Rectangular with radius, 4x oblong hole Rectangular design with corner radius and four slots Silver
LAM 34x10 SI R1 HF 4xLL 5.4x2 MS0.5
LAM Rectangular with radius, 4x oblong hole

Categories:

  • MURRPLASTIK > Marking systems

Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 20,97 €

Unit Price: 0,8737 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 7-9 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Laser Alumatt consists of coated aluminium, suitable for laser engraving.

The surface is coated for laser engraving.

After laser marking with a Murrplastik mp-LM series laser marking system the engraving appears in black.

Available in a material thickness of 0.5 mm or 1.0 mm.

A suction and filter unit is absolutely necessary to comply with legal regulations on health protection.

-20°C – 80°C, short term 120°C

Aluminium painted (ALU)

A1

TypeOrder No.ColourMaterial thickness mmPrintable area mmNo. characters/ linesHole patterns Number x Ø mmNo. per FrameSoftware TypeMOQ qty.

Rectangular design with corner radius and four slots

LAM° 34x10 R1 HF, 4x (5,4x2MM)8610140010Silver0.518 x 1010.0 / 2.04x (5,4x2,0)27LB0108
LAM° 40x12 R1,5 HF, 4x (5x3MM)8610140007Silver0.523 x 1212.0 / 3.04x (5,0x3,0)16LA764
LAM° 44x10 R1 HF, 4x (5,4x2MM)8610140009Silver0.528 x 1015.0 / 2.04x (5,4x2,0)18LA972
LAM 52x18 R2 HF, 4x (4x3MM)8610140088Silver135.6 x 1819.0 / 5.04x (4,0x3,0)10L1W40
LAM° 54x12 R1 HF, 4x (5,4x2MM)8610140008Silver0.538 x 1221.0 / 3.04x (5,4x2,0)16LA864
LAM 54x20 R2 HF, 4x (6x2.5MM)8610140059Silver0.533 x 2018.0 / 5.04x (6,0x2,5)10LP440
LAM 60x12 R2 HF, 4x (5x3MM)8610140092Silver136 x 1220.0 / 3.04x (5,0x3,0)8L2A32
LAM° 60x12 R2 HF, 4x (5x3MM)8610140001Silver0.542 x 1223.0 / 3.04x (5,0x3,0)8LA132
LAM° 60x17 R1,5 HF, 4x (7x3MM)8610140000Silver0.536 x 1720.0 / 5.04x (7,0x3,0)6LA024
LAM° 64x14 R1 HF, 4x (5,4x2MM)8610140011Silver0.548 x 1426.0 / 4.04x (5,4x2,0)7LB128
LAM° 68x10 R1 HF, 4x (5,4x2MM)8610140012Silver0.553 x 1029.0 / 2.04x (5,4x2,0)9LB236
LAM 80x20 R2 HF, 4x (6x2.5MM)8610140058Silver0.559 x 2032.0 / 5.04x (6,0x2,5)5LP320
