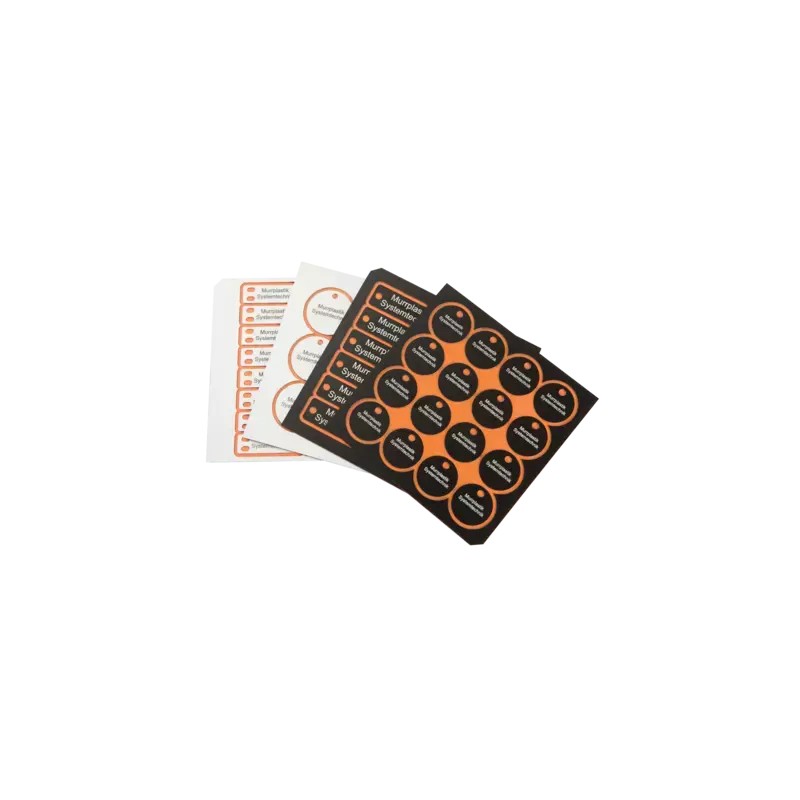

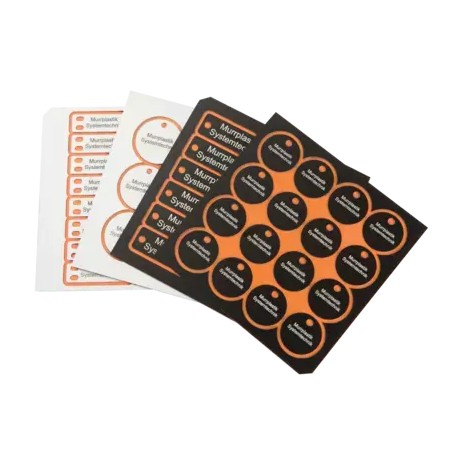

MURRPLASTIK 8610100103 8610100103 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

8610100103 MURRPLASTIK Labelling Rectangular with radius, 2x hole Rectangular design with corner radius and ..

Name: 8610100103 MURRPLASTIK Labelling Rectangular with radius, 2x hole Rectangular design with corner radius and ..
Brand: MURRPLASTIK
SKU: MUR8610100103
Price: 5.90 USD
Availability: OutOfStock

Reference: 8610100103

Manufacturer: MURRPLASTIK

Description:

Labelling Rectangular with radius, 2x hole Rectangular design with corner radius and two holes Silver

LA 60x30mm SI R2 HF 2x 3.0mm MS1.0

Rectangular with radius, 2x hole

Categories:

MURRPLASTIK > Marking systems

Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

More Info
PDF
Reviews

Guarantee, repair and return.

Total: 63,21 €

Unit Price: 5,2675 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 7-9 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

The laser has served us well for years, especially for engraving and labelling of metals.

Marking anodised aluminium with the laser produces great contrast, durability, precision, great readability and can be done with great speed.

Optionally available with adhesive film (HF), self-adhesive film (SK) or self-adhesive film with foam adhesive (SKS)

Available in square versions with and without corner radius, in round versions (circular blanks), optionally with holes, slots or granulation

A suction and filter unit is absolutely necessary to comply with legal regulations on health protection.

-40°C – 140°C, short term 200°C

Aluminium anodised (ALU)

	Type	Order No.	Colour	Material thickness mm	Printable area mm	No. characters/ lines	Hole patterns Number x Ø mm	No. per Frame	Software Type	MOQ qty.
Rectangular design with corner radius and two holes
	LA 20x20 R7 HF, 2x3,0MM	8610100198	Blue matt	1	20 x 12.5	11.0 / 3.0	2x 3.0	25	ME3	100
	LA 25x8 R2 HF, 2x2,1MM	8610100156	Blue matt	1	14.8 x 8	8.0 / 2.0	2x 2.1	44	L7M	176
	LA 30x15 R2 SKS, 2x2,5MM	8610100126	Blue matt	1	17.5 x 15	9.0 / 4.0	2x 2.5	18	L4T	72
	LA 45x25 R2 HF, 2x2,5MM	8610100132	Blue matt	1	32.5 x 25	18.0 / 7.0	2x 2.5	8	L5J	32
	LA 50x15 R2 SKS, 2x2,5MM	8610100128	Blue matt	1	37.5 x 15	20.0 / 4.0	2x 2.5	12	L4V	48
	LA 58x30 R2 HF, 2x4,5MM	8610100257	Blue matt	1	35.5 x 30	19.0 / 8.0	2x 4.5	6	NC1	24
	LA 85x42 R2 HF, 2x4,0MM	8610100248	Blue matt	1	71 x 42	39.0 / 12.0	2x 4.0	2	MT7	8
	LA 30x8 R2 HF, 2x2,5MM	8610100151	Black	1	19.5 x 8	10.0 / 2.0	2x 2.5	33	L6Y	132
	LA° 30x15 R2 HF, 2x3,5MM	8610100016	Black	1	17 x 15	9.0 / 4.0	2x 3.5	21	LD5	72
	LA° 30x15 R2 HF, 2x4,2MM	8610100018	Black	1	15 x 15	8.0 / 4.0	2x 4.2	21	LD7	72
	LA 37x13 R2 HF, 2x3,2MM	8610100135	Black	1	20.4 x 13	11.0 / 3.0	2x 3.2	14	L5S	56
	LA 45x25 R2 HF, 2x2,3MM	8610100068	Black	1	33.5 x 25	18.0 / 7.0	2x 2.3	8	LV3	32
	LA 45x25 R2 HF, 2x2,5MM	8610100134	Black	1	32.5 x 25	18.0 / 7.0	2x 2.5	8	L5L	32
	LA° 50x15 R2 HF, 2x3,0MM	8610100017	Black	1	36 x 15	20.0 / 4.0	2x 3.0	12	LD6	48
	LA° 50x15 R2 HF, 2x4,2MM	8610100019	Black	1	34 x 15	18.0 / 4.0	2x 4.2	12	LD8	48
	LA° 52x18 R2 HF, 2x2,8MM	8610100020	Black	1	38 x 18	21.0 / 5.0	2x 2.8	10	LD9	40
	LA 70x27 R3 HF, 2x4,0MM	8610100147	Black	1	56 x 27	31.0 / 7.0	2x 4.0	4	L6I	16
	LA 70x40 R3 HF, 2x4,0MM	8610100075	Black	1	56 x 40	31.0 / 11.0	2x 4.0	2	LX0	8
	LA° 74x18 R2,5 HF, 2x3,2MM	8610100028	Black	1	60.6 x 18	33.0 / 5.0	2x 3.2	6	LE7	24
	LA 30x10 R1 HF, 2x2,5MM	8610100101	Silver	1	17.5 x 10	9.0 / 2.0	2x 2.5	27	L1S	108
	LA 30x12 R2 HF, 2x3,5MM	8610100230	Silver	1	17 x 12	9.0 / 3.0	2x 3.5	24	MM5	96
	LA 30x15 R1 SK, 2x2,5MM	8610100263	Silver	1	17.5 x 15	9.0 / 4.0	2x 2.5	18	NE9	72
	LA° 30x15 R2 HF, 2x3,5MM	8610100002	Silver	1	17 x 15	9.0 / 4.0	2x 3.5	21	LC1	72
	LA° 30x15 R2 HF, 2x4,2MM	8610100004	Silver	1	15 x 15	8.0 / 4.0	2x 4.2	21	LC3	72
	LA 30x60 R1 HF, 2x2,3MM	8610100162	Silver	1	30 x 48.5	16.0 / 14.0	2x 2.3	3	L8H	12
	LA 40x15 R2 HF, 2x3,0MM	8610100056	Silver	1	25 x 15	13.0 / 4.0	2x 3.0	14	LS3	56
	LA 43x25 R1,5 HF, 2x4,5MM	8610100100	Silver	1	23 x 25	12.0 / 7.0	2x 4.5	8	L1N	32
	LA 45x25 R2 HF, 2x2,3MM	8610100160	Silver	1	35.8 x 25	19.0 / 7.0	2x 2.3	8	L8F	32
	LA° 50x15 R2 HF, 2x3,0MM	8610100003	Silver	1	36 x 15	20.0 / 4.0	2x 3.0	12	LC2	48
	LA 50x15 R2 HF, 2x3,5MM	8610100102	Silver	1	39.5 x 15	21.0 / 4.0	2x 3.5	12	L1T	48
	LA° 50x15 R2 HF, 2x4,2MM	8610100005	Silver	1	34 x 15	18.0 / 4.0	2x 4.2	12	LC4	48
	LA° 50x15,1 R2 HF, 2x3,5MM	8610100048	Silver	1	32.5 x 15.1	18.0 / 4.0	2x 3.5	12	LO2	48
	LA 50x30 R2 HF, 2x3,0MM	8610100061	Silver	1	35 x 30	19.0 / 8.0	2x 3.0	6	LT2	24
	LA° 52x18 R2 HF, 2x2,8MM	8610100006	Silver	1	38 x 18	21.0 / 5.0	2x 2.8	10	LC5	40
	LA 52x18 R2 HF, 2x3,2MM	8610100052	Silver	1	38 x 18	21.0 / 5.0	2x 3.2	10	LR9	40
	LA 55x35 R2 HF, 2x3,0MM	8610100057	Silver	1	40 x 35	22.0 / 10.0	2x 3.0	6	LS4	24
	LA 55x36 R2 HF, 2x4,5MM	8610100083	Silver	1	32.5 x 36	18.0 / 10.0	2x 4.5	6	LZ1	24
	LA 55x36 R2 HF, 2x4,5MM	8610100131	Silver	1	33 x 36	18.0 / 10.0	2x 4.5	6	L5G	24
	LA 60x30 R2 HF, 2x3,0MM	8610100103	Silver	1	45 x 30	25.0 / 8.0	2x 3.0	3	L1U	12
	LA 60x40 R2 HF, 2x2,5MM	8610100088	Silver	1	47.5 x 40	26.0 / 11.0	2x 2.5	2	L0F	8
	LA 60x40 R3 HF, 2x4,5MM	8610100053	Silver	1	41 x 40	22.0 / 11.0	2x 4.5	2	LS0	8
	LA 70x16 R2 SK, 2x3,3MM	8610100157	Silver	1	53.4 x 16	29.0 / 4.0	2x 3.3	6	L7X	24
	LA 70x27 R2 HF, 2x3,3MM	8610100054	Silver	1	55 x 27	30.0 / 7.0	2x 3.3	4	LS1	16
	LA 80x15 R2 HF, 2x3,0MM	8610100060	Silver	1	65 x 15	36.0 / 4.0	2x 3.0	7	LT1	28
	LA 80x18 R2 HF, 2x3,2MM	8610100055	Silver	1	67.6 x 18	37.0 / 5.0	2x 3.2	5	LS2	20
	LA° 100x50 R2 HF, 2x3,0MM	8610100058	Silver	1	85 x 50	47.0 / 14.0	2x 3.0	2	LS5	8
	LA 30x15 R2 HF, 2x3.5MM	8610100204	Yellow matt	1	12.5 x 15	6.0 / 4.0	2x 3.5	18	MG2	72
	LA 45x25 R2 SKS, 2x3,2MM	8610100119	Yellow matt	1	29 x 25	16.0 / 7.0	2x 3.2	8	L4G	32
	LA 70x35 R2 SKS, 2x3,2MM	8610100120	Yellow matt	1	54 x 35	30.0 / 10.0	2x 3.2	3	L4H	12
	LA 30x15 R2 HF, 2x3,5MM	8610100203	Green matt	1	12.5 x 15	6.0 / 4.0	2x 3.5	18	MG1	72
	LA 30x15 R2 HF, 2x3,5MM	8610100202	Matt red	1	12.5 x 15	6.0 / 4.0	2x 3.5	18	MG0	72
	LA 45x25 R2 HF, 2x2,5MM	8610100133	Matt red	1	32.5 x 25	18.0 / 7.0	2x 2.5	8	L5K	32
	LA 70x27 R2 HF, 2x3,3MM	8610100181	Red glossy	1	55 x 27	30.0 / 7.0	2x 3.3	4	MA5	12

DATASHEET - PDF

Title

Size

Type

8610100103 8610100103 EN_8610100002.pdf

1023 Kbytes

PDF CATALOG MURRPLASTIKS LABELLING SYSTEMS EN

8 Mbytes
