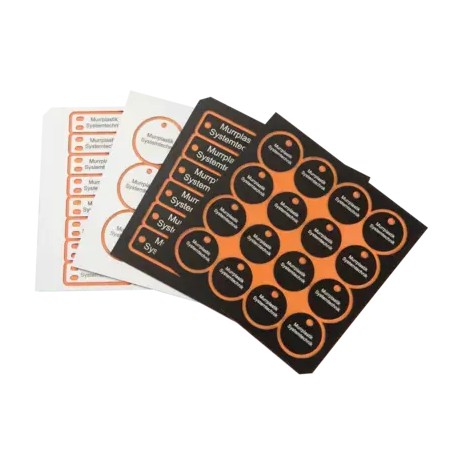

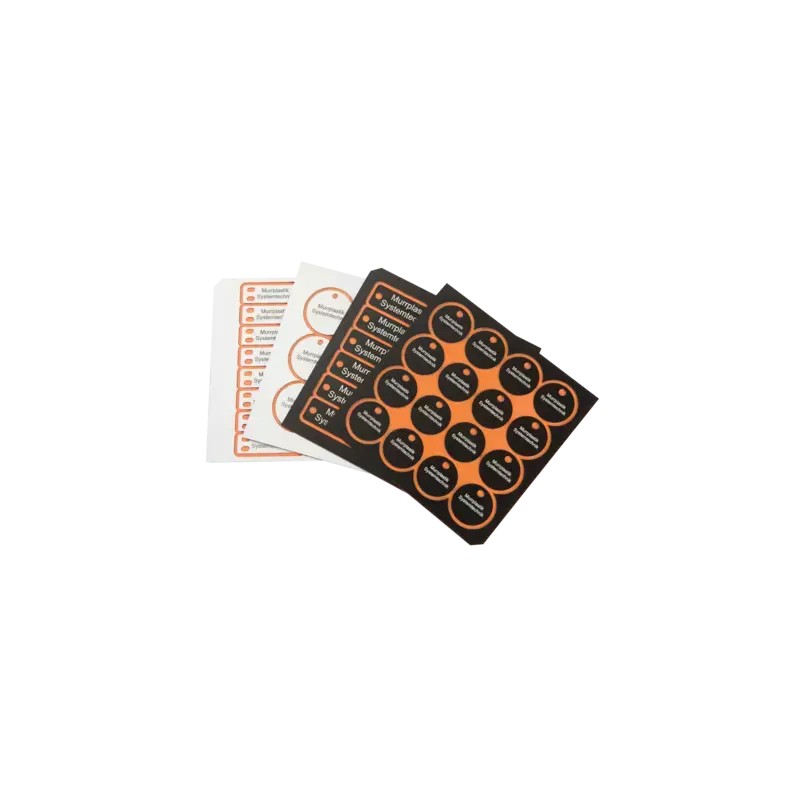

8610100076 MURRPLASTIK Labelling Circular blanks, 1x hole Circular blanks (round version), 1 hole Silver
8610100076
MURRPLASTIK
64
Labelling Circular blanks, 1x hole Circular blanks (round version), 1 hole Silver
LA Ronden D25 SI HF 1x2,5 MS1,0
Circular blanks, 1x hole
Marking systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲The laser has served us well for years, especially for engraving and labelling of metals.
Marking anodised aluminium with the laser produces great contrast, durability, precision, great readability and can be done with great speed.
Optionally available with adhesive film (HF), self-adhesive film (SK) or self-adhesive film with foam adhesive (SKS)
Available in square versions with and without corner radius, in round versions (circular blanks), optionally with holes, slots or granulation
A suction and filter unit is absolutely necessary to comply with legal regulations on health protection.
-40°C – 140°C, short term 200°C
Aluminium anodised (ALU)
V0
| Type | Order No. | Colour | Material thickness mm | Hole patterns Number x Ø mm | by meter mm | No. per Frame | Software Type | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|
Circular blanks (round version), 1 hole | ||||||||||
| LA D=16 HF, 1x4,0MM | 8610100252 | Silver | 1 | 1x 4.0 | 16 | 36 | MZ3 | 144 | ||
| LA D=20 HF, 1x2,2MM | 8610100087 | Silver | 1 | 1x 2.2 | 20 | 25 | L0E | 100 | ||
| LA° D=20 HF, 1x3,5MM | 8610100008 | Silver | 1 | 1x 3.5 | 20 | 25 | LC7 | 100 | ||
| LA° D=20 HF, 1x4,2MM | 8610100011 | Silver | 1 | 1x 4.2 | 20 | 25 | LD0 | 100 | ||
| LA° D=25 HF, 1x2,5MM | 8610100076 | Silver | 1 | 1x 2.5 | 25 | 16 | LX8 | 64 | ||
| LA D=25 HF, 1x3,0MM | 8610100189 | Silver | 1 | 1x 3.0 | 25 | 16 | MC4 | 64 | ||
| LA D=25 HF, 1x3,2MM | 8610100104 | Silver | 1 | 1x 3.2 | 25 | 16 | L1V | 64 | ||
| LA D=25 HF, 1x3,2MM | 8610100246 | Silver | 1 | 1x 3.2 | 25 | 16 | MT5 | 64 | ||
| LA° D=25 HF, 1x3,5MM | 8610100009 | Silver | 1 | 1x 3.5 | 25 | 16 | LC8 | 64 | ||
| LA° D=25 HF, 1x4,2MM | 8610100012 | Silver | 1 | 1x 4.2 | 25 | 16 | LD1 | 64 | ||
| LA° D=30 HF, 1x3,5MM | 8610100010 | Silver | 1 | 1x 3.5 | 30 | 9 | LC9 | 36 | ||
| LA° D=30 HF, 1x4,2MM | 8610100013 | Silver | 1 | 1x 4.2 | 30 | 9 | LD2 | 36 | ||
| LA D=20 HF, 1x2,2MM | 8610100177 | Blue matt | 1 | 1x 2.2 | 20 | 25 | L9U | 100 | ||
| LA D=25 HF, 1x3,0MM | 8610100185 | Blue matt | 1 | 1x 3.0 | 25 | 16 | MC0 | 64 | ||
| LA D=20 HF, 1x2,2MM | 8610100178 | Green matt | 1 | 1x 2.2 | 20 | 25 | L9V | 100 | ||
| LA D=25 HF, 1x3,0MM | 8610100187 | Green matt | 1 | 1x 3.0 | 25 | 16 | MC2 | 64 | ||
| LA D=20 HF, 1x2,2MM | 8610100179 | Matt red | 1 | 1x 2.2 | 20 | 25 | L9W | 100 | ||
| LA D=25 HF, 1x3,0MM | 8610100188 | Matt red | 1 | 1x 3.0 | 25 | 16 | MC3 | 64 | ||
| LA° D=20 HF, 1x3,5MM | 8610100022 | Black | 1 | 1x 3.5 | 20 | 25 | LE1 | 100 | ||
| LA° D=20 HF, 1x4,2MM | 8610100025 | Black | 1 | 1x 4.2 | 20 | 25 | LE4 | 100 | ||
| LA D=25 HF, 1x3,0MM | 8610100190 | Black | 1 | 1x 3.0 | 25 | 16 | MC5 | 64 | ||
| LA D=25 HF, 1x3,5MM | 8610100038 | Black | 1 | 1x 3.2 | 25 | 16 | LL4 | 64 | ||
| LA° D=25 HF, 1x3,5MM | 8610100023 | Black | 1 | 1x 3.5 | 25 | 16 | LE2 | 64 | ||
| LA° D=25 HF, 1x4,2MM | 8610100026 | Black | 1 | 1x 4.2 | 25 | 16 | LE5 | 64 | ||
| LA D=28 HF, 1x14,0MM | 8610100155 | Black | 1 | 1x 14.0 | 28 | 9 | L7J | 36 | ||
| LA° D=30 HF, 1x3,5MM | 8610100024 | Black | 1 | 1x 3.5 | 30 | 9 | LE3 | 36 | ||
| LA° D=30 HF, 1x4,2MM | 8610100027 | Black | 1 | 1x 4.2 | 30 | 9 | LE6 | 36 | ||
| LA D=50 HF, 1x3,0MM | 8610100073 | Black | 1 | 1x 3.0 | 50 | 4 | LW3 | 16 | ||
| LA D=20 HF, 1x3,5MM | 8610100225 | Blue | 1 | 1x 3.5 | 20 | 25 | MK4 | 100 | ||
| LA D=23.3 HF, 1x3,2MM | 8610100197 | Red glossy | 1 | 1x 3.2 | 23.3 | 16 | ME2 | 64 | ||
| LA D=25 HF, 1x3,0MM | 8610100186 | Yellow matt | 1 | 1x 3.0 | 25 | 16 | MC1 | 64 | ||
| LA D=30 HF, 1x3,5MM | 8610100250 | Blue glossy | 1 | 1x 3.5 | 30 | 9 | MX0 | 36 | ||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS LABELLING SYSTEMS EN.pdf | 8 Mbytes |
|
| 8610100076 8610100076 EN_8610100008.pdf | 936 Kbytes |
|
