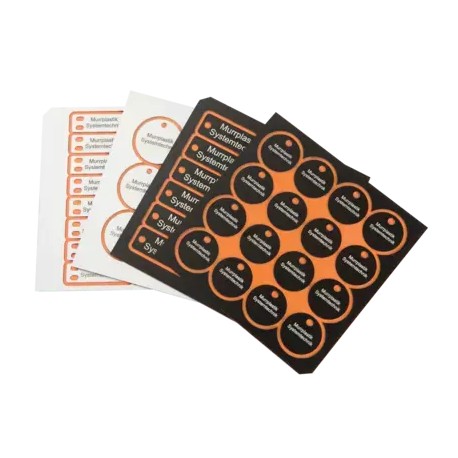

8610100069 MURRPLASTIK Labelling Rectangular without radius, 2x hole Rectangular design with two holes Black
8610100069
MURRPLASTIK
12
Labelling Rectangular without radius, 2x hole Rectangular design with two holes Black
LA 30x60 SW HF 2x2.3 MS1.0
LA Rectangular without radius, 2x hole
Marking systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲The laser has served us well for years, especially for engraving and labelling of metals.
Marking anodised aluminium with the laser produces great contrast, durability, precision, great readability and can be done with great speed.
Optionally available with adhesive film (HF), self-adhesive film (SK) or self-adhesive film with foam adhesive (SKS)
Available in square versions with and without corner radius, in round versions (circular blanks), optionally with holes, slots or granulation
A suction and filter unit is absolutely necessary to comply with legal regulations on health protection.
-40°C – 140°C, short term 200°C
Aluminium anodised (ALU)
V0
| Type | Order No. | Colour | Material thickness mm | Printable area mm | No. characters/ lines | Hole patterns Number x Ø mm | No. per Frame | Software Type | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
Rectangular design with two holes | |||||||||||
| LA 15x30 HF, 2x2,5MM | 8610100077 | Silver | 1 | 17.5 x 15 | 9.0 / 4.0 | 2x 2.5 | 21 | LX9 | 84 | ||
| LA 15x30 SKS, 2x3,0MM | 8610100261 | Silver | 1 | 15 x 15 | 8.0 / 4.0 | 2x 3.0 | 18 | NE6 | 72 | ||
| LA 20x30 SKS, 2x2.5MM | 8610100063 | Silver | 1 | 19 x 20 | 10.0 / 5.0 | 2x 2.5 | 15 | LT9 | 60 | ||
| LA 20x50 SKS, 2x2.5MM | 8610100064 | Silver | 1 | 39.5 x 20 | 21.0 / 5.0 | 2x 2.5 | 10 | LU6 | 40 | ||
| LA 25x10 SK, 2x2,3MM | 8610100107 | Silver | 1 | 10 x 10 | 5.0 / 2.0 | 2x 2.3 | 40 | L2J | 160 | ||
| LA 25x10 SK, 2x2,3MM | 8610100125 | Silver | 1 | 13.4 x 10 | 7.0 / 2.0 | 2x 2.3 | 40 | L4S | 160 | ||
| LA 28x30 HF, 2x3,2MM | 8610100158 | Silver | 1 | 13.6 x 30 | 7.0 / 8.0 | 2x 3.2 | 9 | L8A | 36 | ||
| LA 30x8 HF, 2x3,0MM | 8610100215 | Silver | 1 | 18.5 x 8 | 10.0 / 2.0 | 2x 3.0 | 33 | MI2 | 132 | ||
| LA 35x15 HF, 2x2,5MM | 8610100193 | Silver | 1 | 22.5 x 15 | 12.0 / 4.0 | 2x 2.5 | 18 | MD3 | 72 | ||
| LA 35x15 HF, 2x3,5MM | 8610100205 | Silver | 1 | 20.5 x 15 | 11.0 / 4.0 | 2x 3.5 | 18 | MG3 | 72 | ||
| LA 40x10 HF, 2x3,0MM | 8610100051 | Silver | 1 | 24 x 10 | 13.0 / 2.0 | 2x 3.0 | 20 | LR3 | 80 | ||
| LA 40x15 HF, 2x3,0MM | 8610100059 | Silver | 1 | 24 x 15 | 13.0 / 4.0 | 2x 3.0 | 14 | LS6 | 56 | ||
| LA 40x15 SK, 2x4,0MM | 8610100201 | Silver | 1 | 24 x 15 | 13.0 / 4.0 | 2x 4.0 | 12 | MF8 | 48 | ||
| LA 40x20 SK, 2x3,0MM | 8610100213 | Silver | 1 | 26 x 20 | 14.0 / 5.0 | 2x 3.0 | 10 | MI0 | 40 | ||
| LA 40x80 SK, 2x3,0MM | 8610100214 | Silver | 1 | 40 x 67 | 22.0 / 19.0 | 2x 3.0 | 2 | MI1 | 8 | ||
| LA 50x30 SK, 2x3,0MM | 8610100212 | Silver | 1 | 36 x 30 | 20.0 / 8.0 | 2x 3.0 | 6 | MH9 | 24 | ||
| LA 50x30 SK, 2x3,0MM | 8610100226 | Silver | 1 | 37 x 30 | 20.0 / 8.0 | 2x 3.0 | 6 | MK9 | 24 | ||
| LA 65x20 HF, 2x3,5MM | 8610100143 | Silver | 1 | 48 x 20 | 26.0 / 5.0 | 2x 3.5 | 5 | L6E | 20 | ||
| LA 65x35 HF, 2x3,5MM | 8610100142 | Silver | 1 | 48 x 35 | 26.0 / 10.0 | 2x 3.5 | 3 | L6D | 12 | ||
| LA 75x20 HF, 2x3,0MM | 8610100200 | Silver | 1 | 63 x 20 | 35.0 / 5.0 | 2x 3.0 | 5 | MF7 | 20 | ||
| LA 80x20 HF, 2x3,2MM | 8610100224 | Silver | 1 | 65.6 x 20 | 36.0 / 5.0 | 2x 3.2 | 5 | MK3 | 20 | ||
| LA 100x40 HF, 2x2,5MM | 8610100089 | Silver | 1 | 87.5 x 40 | 48.0 / 11.0 | 2x 2.5 | 2 | L0G | 8 | ||
| LA 25x10 SK, 2x2,2MM | 8610100169 | Black | 1 | 14 x 10 | 7.0 / 2.0 | 2x 2.2 | 36 | L8Z | 144 | ||
| LA 30x8 HF, 2x2,5MM | 8610100210 | Black | 1 | 17.5 x 8 | 9.0 / 2.0 | 2x 2.5 | 33 | MH4 | 132 | ||
| LA 30x8 SK, 2x2,5MM | 8610100209 | Black | 1 | 17.5 x 8 | 9.0 / 2.0 | 2x 2.5 | 33 | MH3 | 132 | ||
| LA 30x60 HF, 2x2,3MM | 8610100069 | Black | 1 | 48.5 x 30 | 26.0 / 8.0 | 2x 2.3 | 3 | LV4 | 12 | ||
| LA 60x30 HF, 2x2,0MM | 8610100079 | Black | 1 | 50 x 30 | 27.0 / 8.0 | 2x 2.0 | 3 | LY4 | 12 | ||
| LA 75x30 HF, 2x2,7MM | 8610100148 | Black | 1 | 63.6 x 30 | 35.0 / 8.0 | 2x 2.7 | 3 | L6N | 12 | ||
| LA 55x45 HF, 2x2,5MM | 8610100233 | Matt red | 1 | 44 x 45 | 24.0 / 13.0 | 2x 2.5 | 2 | MN4 | 8 | ||
| LA 110x20 HF, 2x2,0MM | 8610100220 | Matt red | 1 | 100 x 20 | 55.0 / 5.0 | 2x 2.0 | 5 | MJ3 | 20 | ||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS LABELLING SYSTEMS EN.pdf | 8 Mbytes |
|
| 8610100069 8610100069 EN_8610100051.pdf | 943 Kbytes |
|
