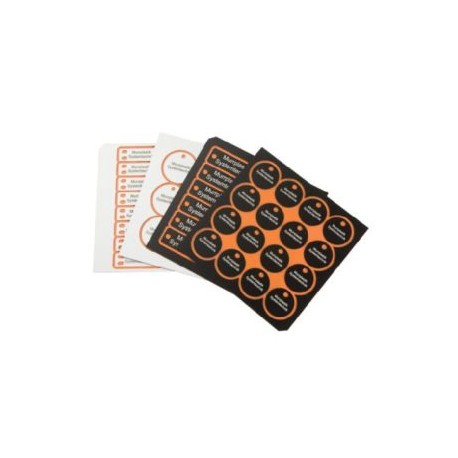

8610100065 MURRPLASTIK Labelling Rectangular with radius, 4x hole Rectangular design with corner radius and ..
8610100065
MURRPLASTIK
16
Labelling Rectangular with radius, 4x hole Rectangular design with corner radius and four holes Silver
LA 50x50 SI R3 SKS 4x2.5 MS1.0
Rectangular with radius, 4x hole
Marking systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲The laser has served us well for years, especially for engraving and labelling of metals.
Marking anodised aluminium with the laser produces great contrast, durability, precision, great readability and can be done with great speed.
Optionally available with adhesive film (HF), self-adhesive film (SK) or self-adhesive film with foam adhesive (SKS)
Available in square versions with and without corner radius, in round versions (circular blanks), optionally with holes, slots or granulation
A suction and filter unit is absolutely necessary to comply with legal regulations on health protection.
-40°C – 140°C, short term 200°C
Aluminium anodised (ALU)
V0
| Type | Order No. | Colour | Material thickness mm | Printable area mm | No. characters/ lines | Hole patterns Number x Ø mm | No. per Frame | Software Type | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
Rectangular design with corner radius and four holes | |||||||||||
| LA 40x15 R2 HF, 4x2,5MM | 8610100184 | Black | 1 | 20 x 15 | 11.0 / 4.0 | 4x 2.5 | 12 | MB9 | 48 | ||
| LA 100x50 R2 SKS, 4x2,0MM | 8610100192 | Black | 1 | 90 x 50 | 50.0 / 14.0 | 4x 2.0 | 2 | MD2 | 8 | ||
| LA 100x60 R2 HF, 4x3,0MM | 8610100092 | Black | 1 | 85 x 60 | 47.0 / 17.0 | 4x 3.0 | 1 | L0J | 4 | ||
| LA 100x60 R5 SK, 4x3.7MM | 8610100074 | Black | 1 | 81.5 x 60 | 45.0 / 17.0 | 4x 3.7 | 1 | LW8 | 4 | ||
| LA 111x111 R2 HF, 4x3,0MM | 8610100091 | Black | 1 | 96 x 111 | 53.0 / 32.0 | 4x 3.0 | 1 | L0I | 4 | ||
| LA 120x120 R5 HF, 4x3,2MM | 8610100159 | Black | 1 | 104 x 120 | 57.0 / 35.0 | 4x 3.2 | 1 | L8E | 4 | ||
| LA 120x120 R5 SK, 4x2,8MM | 8610100259 | Black | 1 | 120 x 106 | 66.0 / 31.0 | 4x 2,8 | 1 | NC3 | 4 | ||
| LA 50x50 R3 SKS, 4x2,5MM | 8610100065 | Silver | 1 | 39 x 50 | 21.0 / 14.0 | 4x 2.5 | 4 | LU7 | 16 | ||
| LA 60x15 R2 HF, 4x3,0MM | 8610100043 | Silver | 1 | 45 x 15 | 25.0 / 4.0 | 4x 3.0 | 7 | LM9 | 28 | ||
| LA 60x30 R2 HF, 4x3,0MM | 8610100044 | Silver | 1 | 45 x 30 | 25.0 / 8.0 | 4x 3.0 | 3 | LN0 | 12 | ||
| LA 75x45 R4 HF, 4x2,5MM | 8610100145 | Silver | 1 | 62 x 45 | 34.0 / 13.0 | 4x 2.5 | 2 | L6L | 8 | ||
| LA 100x40 R2 SK, 4x3.0MM | 8610100030 | Silver | 1 | 85 x 40 | 47.0 / 11.0 | 4x 3.0 | 2 | LI0 | 8 | ||
| LA° 100x50 R2 SK, 4x2,5MM | 8610100049 | Silver | 1 | 86.4 x 50 | 48.0 / 14.0 | 4x 2.5 | 2 | LQ2 | 8 | ||
| LA 100x50 R2 HF, 4x3,6MM | 8610100196 | Silver | 1 | 84.8 x 50 | 47.0 / 14.0 | 4x 3.6 | 2 | ME0 | 8 | ||
| LA 100x60 R2 HF, 4x3,0MM | 8610100045 | Silver | 1 | 85 x 60 | 47.0 / 17.0 | 4x 3.0 | 1 | LN1 | 4 | ||
| LA 105x105 R2,5 HF, 4x3,6MM | 8610100238 | Silver | 1 | 77.8 x 105 | 43.0 / 30.0 | 4x 3.6 | 1 | MQ6 | 4 | ||
| LA° 111x111 R2 HF, 4x3,0MM | 8610100046 | Silver | 1 | 96 x 111 | 53.0 / 32.0 | 4x 3.0 | 1 | LN2 | 4 | ||
| LA 85x84 R2 HF, 4x4,0MM | 8610100249 | Blue matt | 1 | 71 x 84 | 39.0 / 24.0 | 4x 4.0 | 1 | MT8 | 4 | ||
| LA 100x50 R2 SKS, 4x2,5MM | 8610100127 | Blue matt | 1 | 87.5 x 50 | 48.0 / 14.0 | 4x 2.5 | 2 | L4U | 8 | ||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS LABELLING SYSTEMS EN.pdf | 8 Mbytes |
|
| 8610100065 8610100065 EN_8610100030.pdf | 929 Kbytes |
|
