MURRPLASTIKMarking systems8610100045 MURRPLASTIK Labelling Rectangular with radius, 4x hole Rectangular design with corner radius and ..

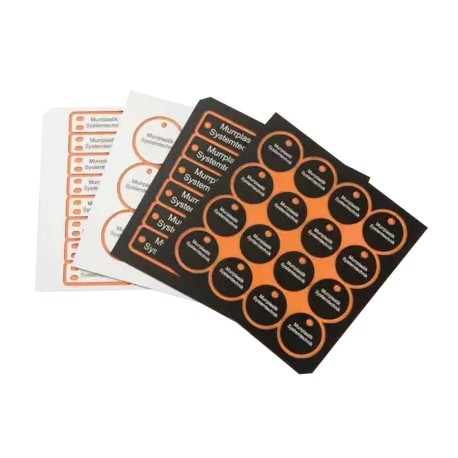

MURRPLASTIK 8610100045 8610100045 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

8610100045 MURRPLASTIK Labelling Rectangular with radius, 4x hole Rectangular design with corner radius and ..

Reference: 8610100045

Manufacturer: MURRPLASTIK

Description:

Labelling Rectangular with radius, 4x hole Rectangular design with corner radius and four holes Silver
LA 100x60 SI R2 HF 4x3.0 MS1.0
LA Rectangular with radius, 4x hole

Categories:

  • MURRPLASTIK > Marking systems

Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 70,42 €

Unit Price: 17,605 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 7-9 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

The laser has served us well for years, especially for engraving and labelling of metals.

Marking anodised aluminium with the laser produces great contrast, durability, precision, great readability and can be done with great speed.

Optionally available with adhesive film (HF), self-adhesive film (SK) or self-adhesive film with foam adhesive (SKS)

Available in square versions with and without corner radius, in round versions (circular blanks), optionally with holes, slots or granulation

A suction and filter unit is absolutely necessary to comply with legal regulations on health protection.

-40°C – 140°C, short term 200°C

Aluminium anodised (ALU)

V0

TypeOrder No.ColourMaterial thickness mmPrintable area mmNo. characters/ linesHole patterns Number x Ø mmNo. per FrameSoftware TypeMOQ qty.

Rectangular design with corner radius and four holes

LA 40x15 R2 HF, 4x2,5MM8610100184Black120 x 1511.0 / 4.04x 2.512MB948
LA 100x50 R2 SKS, 4x2,0MM8610100192Black190 x 5050.0 / 14.04x 2.02MD28
LA 100x60 R2 HF, 4x3,0MM8610100092Black185 x 6047.0 / 17.04x 3.01L0J4
LA 100x60 R5 SK, 4x3.7MM8610100074Black181.5 x 6045.0 / 17.04x 3.71LW84
LA 111x111 R2 HF, 4x3,0MM8610100091Black196 x 11153.0 / 32.04x 3.01L0I4
LA 120x120 R5 HF, 4x3,2MM8610100159Black1104 x 12057.0 / 35.04x 3.21L8E4
LA 120x120 R5 SK, 4x2,8MM8610100259Black1120 x 10666.0 / 31.04x 2,81NC34
LA 50x50 R3 SKS, 4x2,5MM8610100065Silver139 x 5021.0 / 14.04x 2.54LU716
LA 60x15 R2 HF, 4x3,0MM8610100043Silver145 x 1525.0 / 4.04x 3.07LM928
LA 60x30 R2 HF, 4x3,0MM8610100044Silver145 x 3025.0 / 8.04x 3.03LN012
LA 75x45 R4 HF, 4x2,5MM8610100145Silver162 x 4534.0 / 13.04x 2.52L6L8
LA 100x40 R2 SK, 4x3.0MM8610100030Silver185 x 4047.0 / 11.04x 3.02LI08
LA° 100x50 R2 SK, 4x2,5MM8610100049Silver186.4 x 5048.0 / 14.04x 2.52LQ28
LA 100x50 R2 HF, 4x3,6MM8610100196Silver184.8 x 5047.0 / 14.04x 3.62ME08
LA 100x60 R2 HF, 4x3,0MM8610100045Silver185 x 6047.0 / 17.04x 3.01LN14
LA 105x105 R2,5 HF, 4x3,6MM8610100238Silver177.8 x 10543.0 / 30.04x 3.61MQ64
LA° 111x111 R2 HF, 4x3,0MM8610100046Silver196 x 11153.0 / 32.04x 3.01LN24
LA 85x84 R2 HF, 4x4,0MM8610100249Blue matt171 x 8439.0 / 24.04x 4.01MT84
LA 100x50 R2 SKS, 4x2,5MM8610100127Blue matt187.5 x 5048.0 / 14.04x 2.52L4U8

DATASHEET - PDF

Title
Size
Type
8610100045 8610100045 EN_8610100030.pdf
929 Kbytes
PDF CATALOG MURRPLASTIKS LABELLING SYSTEMS EN
8 Mbytes
