Images are for illustrative purposes only. Please refer to data sheet for details.
Reference: 8604110000
Manufacturer: MURRPLASTIK
Description:
Categories:
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
LAST VIEWED

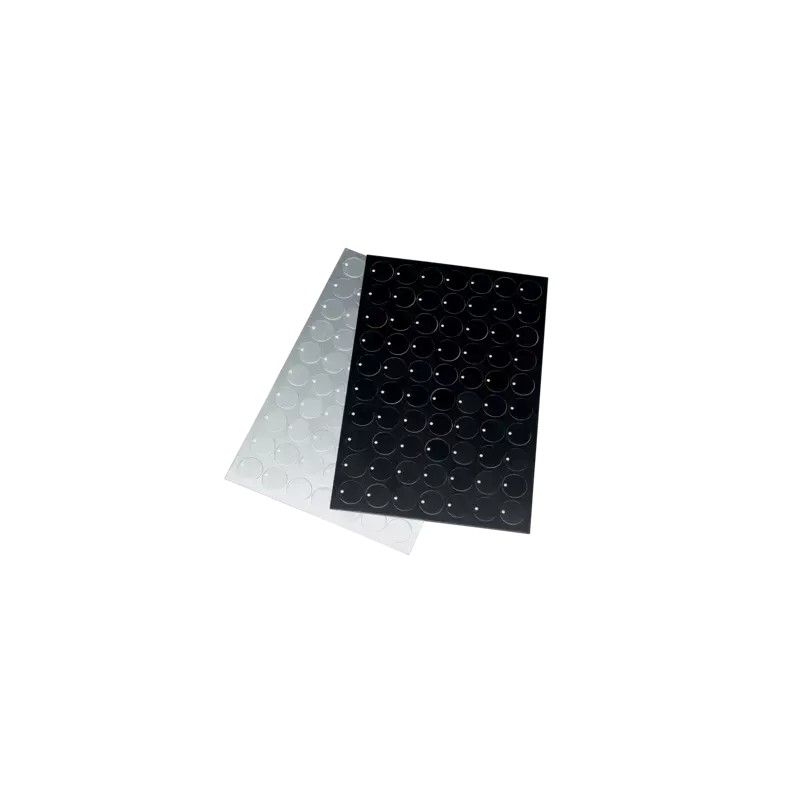

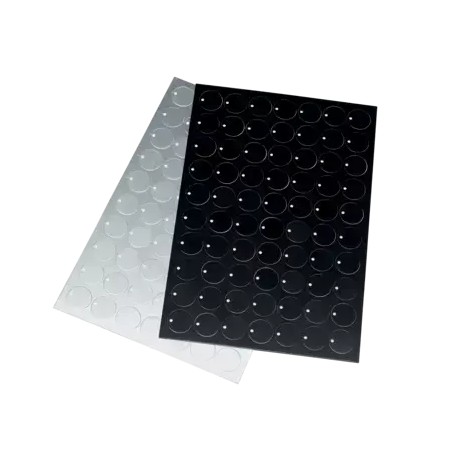

The ALU labelling material, in mat size 300x200 mm, has been developed especially for engraving.
Coloured anodised aluminium material
Available with self-adhesive foil (SK) or with adhesive foil (HF).
Individual or prefab labels
Temperature range up to approx. 200 °C
Thickness: 1.0 mm
marking technique: Engraving
-40°C – 140°C
Aluminium anodised (ALU)
V0
| Type | Order No. | Label size mm | Number x Holes mm | Colour combination | Material thickness mm | No. per mat | Software type | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|
Corner radius 2 mm; with adhesive foil | ||||||||||
| ALU 15x15 R2 HF, 1x3.5MM | 8604116008 | 15 x 15 | 1x 3.5 | Anodised silver | 1 | 260 | 6X | 260 | ||
| ALU 27x12.5 R2 HF, 1x2.5MM | 8604116005 | 27 x 12.5 | 1x 2.5 | Anodised silver | 1 | 176 | 921 | 176 | ||
| ALU 30x55 R2 HF, 1x22.6MM | 8604116004 | 30 x 55 | 1x 22.6 | Anodised silver | 1 | 30 | 076 | 30 | ||
| ALU 30x10 R2 HF, 1.5MM | 8604116019 | 30 x 10 | 1x 5.0 | Anodised black | 1 | 200 | K70 | 200 | ||
| ALU 52X18 R2 HF, 1x2.5MM | 8604116009 | 52 x 18 | 1x 2.5 | Anodised black | 1 | 55 | A30 | 55 | ||
| ALU 30x10 R2 HF, 1x5MM | 8604116018 | 30 x 10 | 1x 5.0 | Green anodised | 1 | 200 | K69 | 200 | ||
| ALU 30x10 R2 HF, 1x5MM | 8604116017 | 30 x 10 | 1x 5.0 | Anodised Blue | 1 | 200 | K68 | 200 | ||
Corner radius 7 mm; with adhesive foil | ||||||||||
| ALU 20x20 R7 HF, 1x2.2MM | 8604116003 | 20 x 20 | 1x 2.2 | Anodised silver | 1 | 150 | 062 | 150 | ||
| ALU 20x20 R7 HF, 1x2.5MM | 8604116001 | 20 x 20 | 1x 2.5 | Anodised silver | 1 | 150 | 066 | 150 | ||
| ALU° 20x20 R7 HF, 1x2.5MM | 8604296000 | 20 x 20 | 1x 2.5 | Anodised black | 1 | 150 | 845 | 150 | ||
Corner radius 9 mm; with adhesive foil | ||||||||||
| ALU 25x25 R9 HF, 1x4.2MM | 8604116000 | 25 x 25 | 1x 4.2 | Anodised silver | 1 | 96 | 863 | 96 | ||
| ALU 25x25 R9 HF, 1x3.2MM | 8604296001 | 25 x 25 | 1x 3.2 | Anodised black | 1 | 96 | 01 | 96 | ||
| ALU 25x25 R9 HF, 1x4.5MM | 8604116006 | 25 x 25 | 1x 4.5 | Anodised black | 1 | 96 | 1G | 96 | ||
| ALU 25x25 R9 HF, 1x3.0MM | 8604116015 | 25 x 25 | 1x 3.0 | Yellow anodised | 1 | 96 | J39 | 96 | ||
| ALU 25x25 R9 HF, 1x3.0MM | 8604116014 | 25 x 25 | 1x 3.0 | Anodised red | 1 | 96 | J38 | 96 | ||
| ALU 25x25 R9 HF, 1x3.0MM | 8604116011 | 25 x 25 | 1x 3.0 | Green anodised | 1 | 96 | H27 | 96 | ||
| ALU 25x25 R9 HF, 1x3.0MM | 8604116010 | 25 x 25 | 1x 3.0 | Anodised Blue | 1 | 96 | H26 | 96 | ||
Corner radius 2 mm; with self-adhesive foil | ||||||||||
| ALU 27x18 R2 SK, 1x3.5MM | 8604110000 | 27 x 18 | 1x 3.5 | Anodised silver | 1 | 121 | 411 | 121 | ||
Corner radius 12 mm; with adhesive foil | ||||||||||
| ALU 30x30 R12 HF, 1x3.2MM | 8604116007 | 30 x 30 | 1x 3.2 | Anodised silver | 1 | 60 | 3I | 60 | ||
| ALU 20x20 R12 HF, 1x2.5MM | 8604226014 | 20 x 20 | 1x 2.5 | Anodised black | 1 | 150 | 437 | 150 | ||
Corner radius 0.5 mm; with adhesive foil | ||||||||||
| ALU 25X17,5 R0,5 HF, 1x2.8MM | 8604116016 | 25 x 17.5 | 1x 2.8 | Anodised black | 1 | 132 | J51 | 132 | ||
Corner radius 5 mm; with adhesive foil | ||||||||||
| ALU 30x10 R5 HF, 1x4.0MM | 8604116012 | 30 x 10 | 1x 4.0 | Anodised black | 1 | 200 | H75 | 200 | ||
