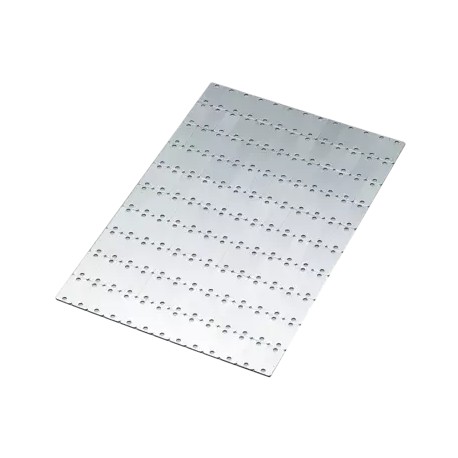

8603240005 MURRPLASTIK Labelling Rectangular without radius, 4x hole Without corner radius with self-adhesiv..
8603240005
MURRPLASTIK
8
Labelling Rectangular without radius, 4x hole Without corner radius; with self-adhesive foil Silver/Black/Silver
ALM 125x45 SI/SW/SI SK, 4x3,0 MS1,5
Rectangular without radius, 4x hole
Marking systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲Triple-layer material with black plastic inner layer (aluminium-plastic aluminium)
Outer layer available in silver or gold
Available with self-adhesive foil (SK) or with adhesive foil (HF).
Thickness: 1.5 mm
marking technique: Engraving
ALUMATT products are high pressure decorative laminated sheets, preferably in plain colours. In contrast to standard laminates, Alumatt has a three-layer symmetrical structure of melamine resin impregnated cellulose sheeting. The colour of all layers is exactly defined. The colours of both outer layers are usually in stark contrast to the core colour. This colour contrast makes the engraving very readable. For engraving, the outer layers are kept very thin. The layer thickness is approximately 0.08 mm. The plain papers are homogeneously coloured in the mass. The colour connection is secured with these paper qualities. The base is free of heavy metals and has a high level of light stability.
-40°C – 80°C
Alumatt (ALM)
B2
| Type | Order No. | Label size mm | Number x Holes mm | Colour combination | Material thickness mm | No. per mat | Software type | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|
Without corner radius; with adhesive foil | ||||||||||
| ALM 60x100 HF, 4x3.3MM | 8603246001 | 60 x 100 | 4x 3.3 | Silver / Black / Silver | 1.5 | 10 | 906 | 10 | ||
| ALM 85x65 HF, 4x4.0MM | 8603246006 | 85 x 65 | 4x 4.0 | Silver / Black / Silver | 1.5 | 9 | H86 | 9 | ||
| ALM 100x40 HF, 4x3.3MM | 8603246000 | 100 x 40 | 4x 3.3 | Silver / Black / Silver | 1.5 | 15 | 905 | 15 | ||
| ALM 100x200 HF, 4x2.6MM | 8603246005 | 100 x 200 | 4x 2.6 | Silver / Black / Silver | 1.5 | 3 | 9K | 3 | ||
| ALM 125x125 HF, 4x3.5MM | 8603246002 | 125 x 125 | 4x 3.5 | Silver / Black / Silver | 1.5 | 2 | 6C | 2 | ||
| ALM 140x180 HF, 4x3,0MM | 8603246011 | 140 x 180 | 4x 3.0 | Silver / Black / Silver | 1.5 | 2 | Z77 | 2 | ||
| ALM 140x200 HF, 4x3.0MM | 8603246008 | 140 x 200 | 4x 3.0 | Silver / Black / Silver | 1.5 | 2 | L56 | 2 | ||
| ALM 150x75 HF, 4x3.2MM | 8603246007 | 150 x 75 | 4x 3.2 | Silver / Black / Silver | 1.5 | 4 | J45 | 4 | ||
| ALM 150x115 HF, 4x3.5MM | 8603246003 | 150 x 115 | 4x 3.5 | Silver / Black / Silver | 1.5 | 2 | 6D | 2 | ||
| ALM 140x200 HF, 4x3.0MM | 8603246009 | 300 x 100 | 4x 3.0 | Silver / Black / Silver | 1.5 | 2 | L57 | 2 | ||
| ALM 230x150 HF, 4x3.5MM (E) | 8603246004 | 230 x 150 | 4x 3.5 | Silver / Black / Silver | 1.5 | 1 | 6E | 1 | ||
Without corner radius; with self-adhesive foil | ||||||||||
| ALM 80x200 SK, 4x3.2MM | 8603240002 | 80 x 200 | 4x 3.2 | Silver / Black / Silver | 1.5 | 3 | U17 | 3 | ||
| ALM 85x65 SK, 4x4.0MM | 8603240006 | 85 x 65 | 4x 4.0 | Silver / Black / Silver | 1.5 | 9 | H73 | 9 | ||
| ALM 125x45 SK, 4x3.0MM | 8603240005 | 125 x 45 | 4x 3.0 | Silver / Black / Silver | 1.5 | 8 | B48 | 8 | ||
| ALM 125x65 SK, 4x3.0MM | 8603240004 | 125 x 65 | 4x 3.0 | Silver / Black / Silver | 1.5 | 6 | B38 | 6 | ||
| ALM 125x80 SK, 4x3.0MM | 8603240003 | 125 x 80 | 4x 3.0 | Silver / Black / Silver | 1.5 | 4 | B37 | 4 | ||
| ALM 150x100 SK, 4x3.5MM | 8603240000 | 150 x 100 | 4x 3.5 | Silver / Black / Silver | 1.5 | 4 | 228 | 4 | ||
| ALM 205x105 SK, 4x3.2MM (E) | 8603240001 | 205 x 105 | 4x 3.2 | Silver / Black / Silver | 1.5 | 1 | U16 | 6 | ||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS LABELLING SYSTEMS EN.pdf | 8 Mbytes |
|
| 8603240005 8603240005 EN_8603246011.pdf | 849 Kbytes |
|
