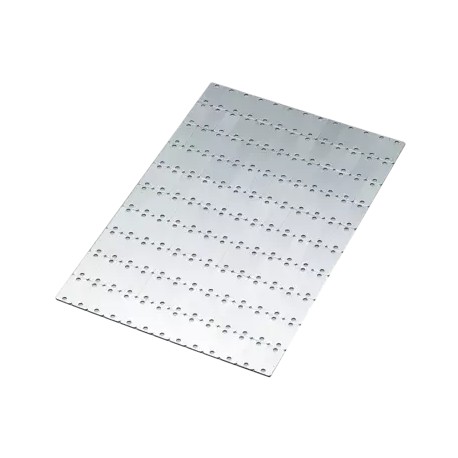

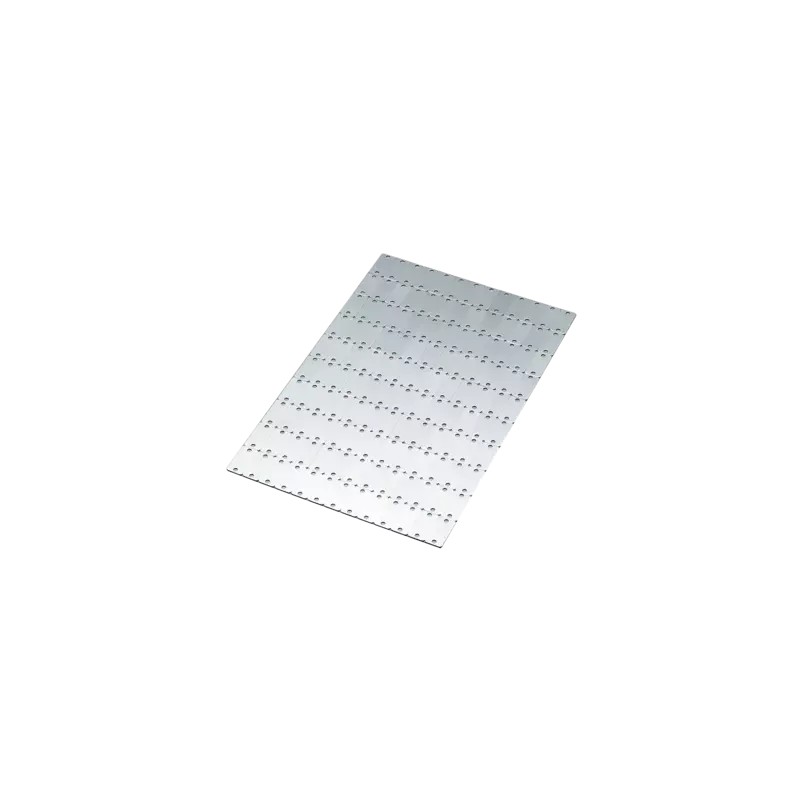

8603226019 MURRPLASTIK Labelling Rectangular without radius, 2x hole Without corner radius with adhesive foi..
8603226019
MURRPLASTIK
60
Labelling Rectangular without radius, 2x hole Without corner radius; with adhesive foil Silver/Black/Silver
ALM 90x10 SI/SW/SI HF, 2x3,5, MS1,5
ALM Rectangular without radius, 2x hole
Marking systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲Triple-layer material with black plastic inner layer (aluminium-plastic aluminium)
Outer layer available in silver or gold
Available with self-adhesive foil (SK) or with adhesive foil (HF).
Thickness: 1.5 mm
marking technique: Engraving
ALUMATT products are high pressure decorative laminated sheets, preferably in plain colours. In contrast to standard laminates, Alumatt has a three-layer symmetrical structure of melamine resin impregnated cellulose sheeting. The colour of all layers is exactly defined. The colours of both outer layers are usually in stark contrast to the core colour. This colour contrast makes the engraving very readable. For engraving, the outer layers are kept very thin. The layer thickness is approximately 0.08 mm. The plain papers are homogeneously coloured in the mass. The colour connection is secured with these paper qualities. The base is free of heavy metals and has a high level of light stability.
-40°C – 80°C
Alumatt (ALM)
B2
| Type | Order No. | Label size mm | Number x Holes mm | Colour combination | Material thickness mm | No. per mat | Software type | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|
Without corner radius; with adhesive foil | ||||||||||
| ALM 10x40 HF, 2x2.5MM | 8603226023 | 10 x 40 | 2x 2.5 | Silver / Black / Silver | 1.5 | 150 | M61 | 150 | ||
| ALM 30x15 HF, 2x2.5MM | 8603226002 | 30 x 15 | 2x 2.5 | Silver / Black / Silver | 1.5 | 130 | 865 | 130 | ||
| ALM° 30x15 HF, 2x3.5MM | 8603226005 | 30 x 15 | 2x 3.5 | Silver / Black / Silver | 1.5 | 130 | 132 | 130 | ||
| ALM 37x18 HF, 2x3.2MM | 8603226003 | 37 x 18 | 2x 3.2 | Silver / Black / Silver | 1.5 | 88 | 926 | 88 | ||
| ALM 40X10 HF, 2x2.6MM | 8603226017 | 40 x 10 | 2x 2.6 | Silver / Black / Silver | 1.5 | 140 | 9N | 140 | ||
| ALM 40x10 HF, 2x3.5MM | 8603226008 | 40 x 10 | 2x 3.5 | Silver / Black / Silver | 1.5 | 140 | 352 | 140 | ||
| ALM 40x12 HF, 2x3.5MM | 8603226006 | 40 x 12 | 2x 3.5 | Silver / Black / Silver | 1.5 | 112 | 130 | 112 | ||
| ALM 40x15 HF, 2x3.2MM | 8603226013 | 40 x 15 | 2x 3.2 | Silver / Black / Gold | 1.5 | 91 | 1X | 91 | ||
| ALM 45x20 HF, 2x3.0MM | 8603226018 | 45 x 20 | 2x 3.0 | Silver / Black / Silver | 1.5 | 60 | B73 | 60 | ||
| ALM 40x25 HF, 2x3.2MM | 8603226001 | 40 x 25 | 2x 3.2 | Silver / Black / Silver | 1.5 | 56 | 735 | 56 | ||
| ALM 40x25 HF, 2x3.2MM | 8603226012 | 40 x 25 | 2x 3.2 | Silver / Black / Gold | 1.5 | 56 | 1W | 56 | ||
| ALM 45x25 HF, 2x4.2MM | 8603226007 | 45 x 25 | 2x 4.2 | Silver / Black / Silver | 1.5 | 48 | 350 | 48 | ||
| ALM 50x15 HF, 2x2.5MM | 8603226009 | 50 x 15 | 2x 2.5 | Silver / Black / Silver | 1.5 | 78 | 048 | 78 | ||
| ALM° 50x15 HF, 2x3.5MM | 8603226000 | 50 x 15 | 2x 3.5 | Silver / Black / Silver | 1.5 | 78 | 722 | 78 | ||
| ALM 50x40 HF, 2x3.0MM | 8603226010 | 50 x 40 | 2x 3.0 | Silver / Black / Silver | 1.5 | 30 | 054 | 30 | ||
| ALM 50X50 HF, 2x2.6MM | 8603226016 | 50 x 50 | 2x 2.6 | Silver / Black / Silver | 1.5 | 24 | 9M | 24 | ||
| ALM 52x18 HF, 2x2.5MM | 8603226011 | 52 x 18 | 2x 2.5 | Silver / Black / Silver | 1.5 | 55 | 223 | 55 | ||
| ALM 52x18 HF, 2x3.5MM | 8603226004 | 52 x 18 | 2x 3.5 | Silver / Black / Silver | 1.5 | 55 | 131 | 55 | ||
| ALM 52x18 HF, 2x3.5MM | 8603226022 | 52 x 18 | 2x 3.5 | Gold / Black / Silver | 1.5 | 55 | M23 | 55 | ||
| ALM 80x15 HF, 2x3.5MM | 8603226014 | 80 x 15 | 2x 3.5 | Silver / Black / Silver | 1.5 | 39 | 9J | 39 | ||
| ALM 90x10 HF, 2x3.5MM | 8603226019 | 90 x 10 | 2x 3.5 | Silver / Black / Silver | 1.5 | 60 | B85 | 60 | ||
| ALM 100x46 HF, 2x3.5MM | 8603226020 | 100 x 46 | 2x 3.5 | Silver / Black / Silver | 1.5 | 12 | D68 | 12 | ||
| ALM 100x50 HF, 2x2.6MM | 8603226015 | 100 x 50 | 2x 2.6 | Silver / Black / Silver | 1.5 | 12 | 9L | 12 | ||
| ALM 130x30 HF, 2x3.0MM | 8603226024 | 130 x 30 | 2x 3.0 | Silver / Black / Silver | 1.5 | 12 | A7F | 12 | ||
Without corner radius; with self-adhesive foil | ||||||||||
| ALM 18x40 SK, 2x3,0MM | 8603220014 | 18 x 40 | 2x 3.0 | Silver / Black / Silver | 1.5 | 80 | A8D | 80 | ||
| ALM 26x9 SK, 2x3.2MM | 8603220001 | 26 x 9 | 2x 3.2 | Silver / Black / Silver | 1.5 | 242 | 7L | 242 | ||
| ALM 30x15 SK, 2x2.5MM | 8603220011 | 30 x 15 | 2x 2.5 | Silver / Black / Silver | 1.5 | 130 | 9O | 130 | ||
| ALM 37x9 SK, 2x3.2MM | 8603220002 | 37 x 9 | 2x 3.2 | Silver / Black / Silver | 1.5 | 176 | 7M | 176 | ||
| ALM 37x18 SK, 2x3.2MM | 8603220007 | 37 x 18 | 2x 3.2 | Silver / Black / Silver | 1.5 | 88 | 7R | 88 | ||
| ALM 52x9 SK, 2x3.2MM | 8603220003 | 52 x 9 | 2x 3.2 | Silver / Black / Silver | 1.5 | 110 | 7N | 110 | ||
| ALM 52x18 SK, 2x3.2MM | 8603220006 | 52 x 18 | 2x 3.2 | Silver / Black / Silver | 1.5 | 55 | 7Q | 55 | ||
| ALM 52x27 SK, 2x3.2MM | 8603220008 | 52 x 27 | 2x 3.2 | Silver / Black / Silver | 1.5 | 35 | 7S | 35 | ||
| ALM 60x18 SK, 2x3.0MM | 8603220015 | 60 x 18 | 2x 3.0 | Silver / Black / Silver | 1.5 | 55 | A1E | 55 | ||
| ALM 70x50 SK, 2x3.2MM | 8603220010 | 70 x 50 | 2x 3.2 | Silver / Black / Silver | 1.5 | 16 | 8S | 16 | ||
| ALM 74x9 SK, 2x3.2MM | 8603220004 | 74 x 9 | 2x 3.2 | Silver / Black / Silver | 1.5 | 88 | 7O | 88 | ||
| ALM 74x13 SK, 2x3.2MM | 8603220013 | 74 x 13 | 2x 3.2 | Silver / Black / Silver | 1.5 | 60 | D20 | 60 | ||
| ALM 74x18 SK, 2x3.2MM | 8603220005 | 74 x 18 | 2x 3.2 | Silver / Black / Silver | 1.5 | 44 | 7P | 44 | ||
| ALM 74x27 SK, 2x3.2MM | 8603220009 | 74 x 27 | 2x 3.2 | Silver / Black / Silver | 1.5 | 28 | 7T | 28 | ||
| ALM 74x37 SK, 2x3.2MM | 8603220012 | 74 x 37 | 2x 3.2 | Silver / Black / Silver | 1.5 | 20 | D19 | 20 | ||
| ALM 92x18 SK, 2x3.0MM | 8603220016 | 92 x 18 | 2x 3.0 | Silver / Black / Silver | 1.5 | 33 | A0E | 33 | ||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS LABELLING SYSTEMS EN.pdf | 8 Mbytes |
|
| 8603226019 8603226019 EN_8603226010.pdf | 924 Kbytes |
|
